Front Fender: Service and Repair

FENDER

REMOVAL AND INSTALLATION

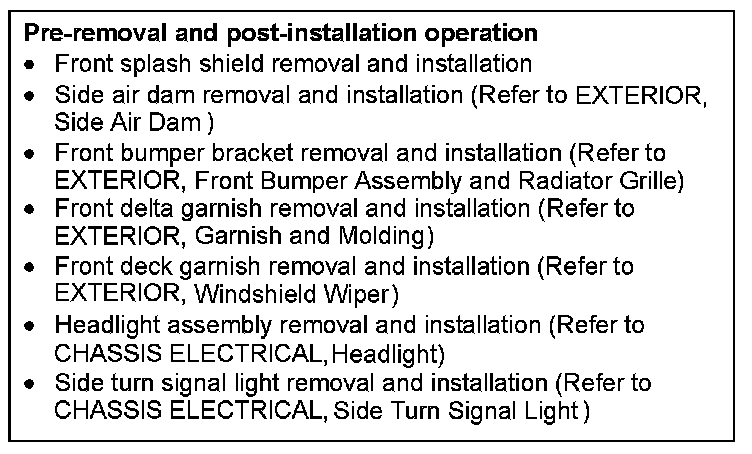

Pre-removal & Post-installation Operation:

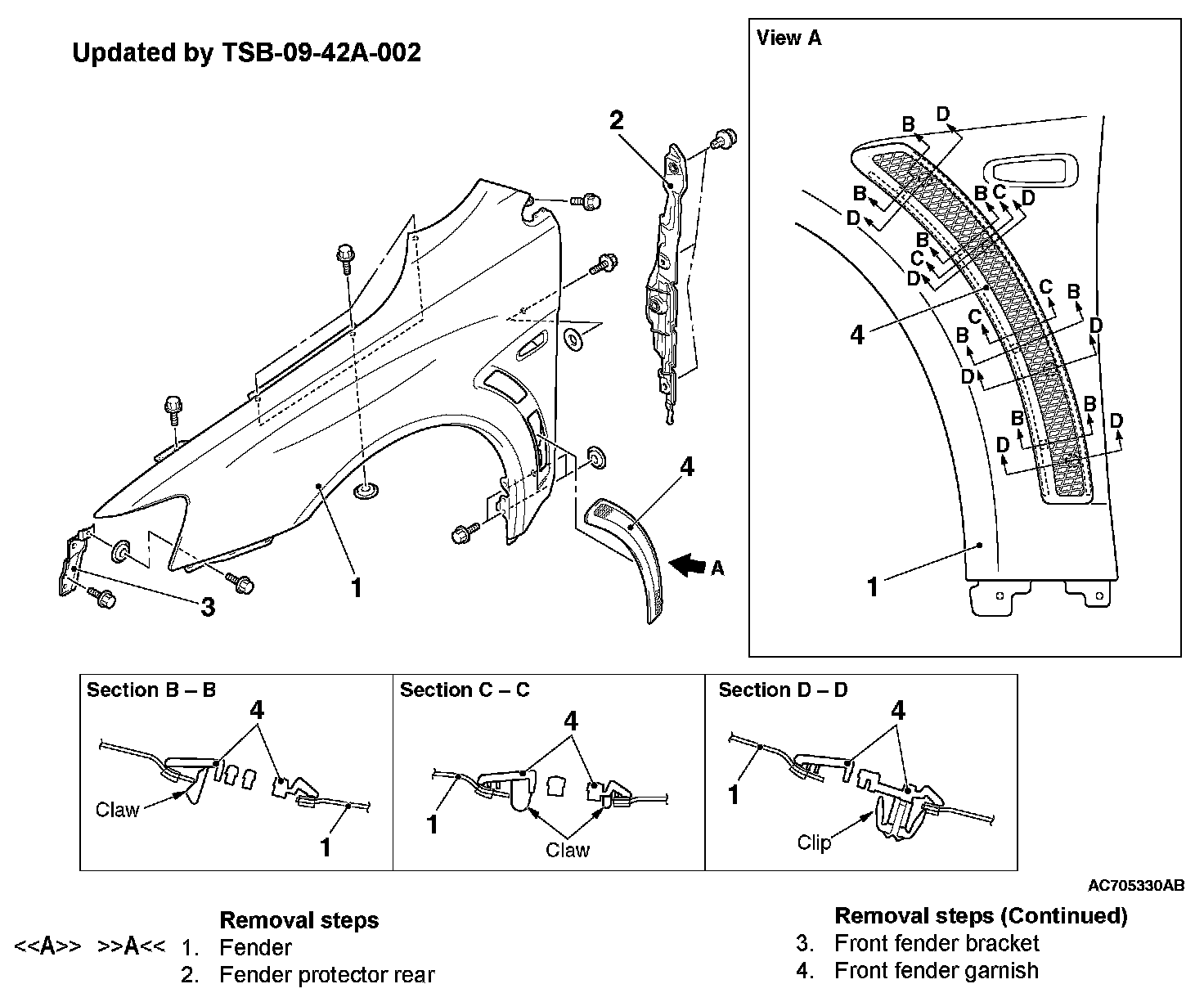

Removal Steps 1-4:






REMOVAL SERVICE POINT

]]A[[ FENDER REMOVAL

1. Remove the fender protector rear assembling clip.

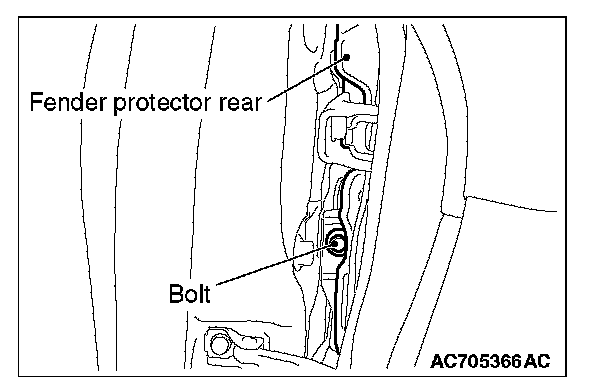

2. Slide the fender protector rear, then remove the fender mounting bolt shown in the illustration.

INSTALLATION SERVICE POINT

[[A]] FENDER INSTALLATION

1. Temporarily install the fender protector rear to the fender.






2. Install the fender to the body. (Do not install the fender mounting bolt shown in the illustration at this time.)

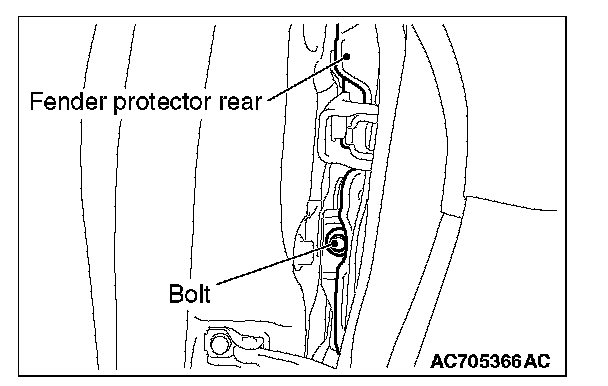

3. Slide the temporarily-installed fender protector rear, and then install the fender mounting bolt.
