Cross-Member: Service and Repair

REAR SUSPENSION CROSSMEMBER

REMOVAL AND INSTALLATION

CAUTION:
^ The parts indicated by *1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
^ The parts indicated by *2 are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

Pre-removal & Post-installation Operations:







Removal Steps 1-5:





REMOVAL SERVICE POINT

[[A]] REAR SUSPENSION CROSSMEMBER REMOVAL

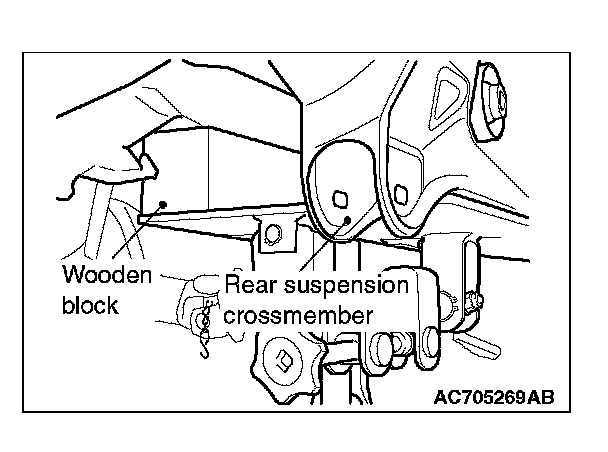

Place a wooden block against the bottom of rear suspension crossmember front, and remove the crossmember. Do not tilt the crossmember during removal.

INSTALLATION SERVICE POINT

]]A[[ REAR SUSPENSION CROSSMEMBER INSTALLATION

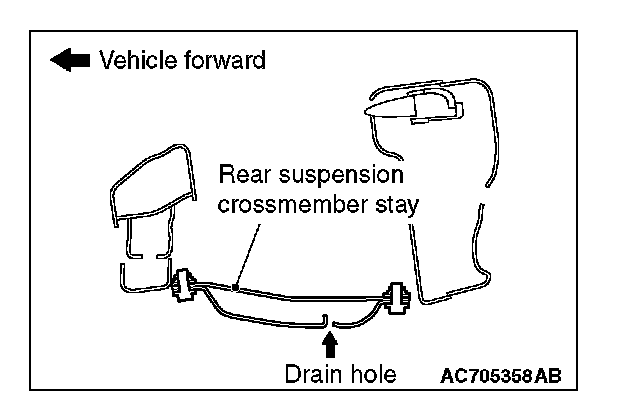

Install the rear suspension crossmember stay so that the water drain hole is positioned rearward.
