Heater Unit and Blower Assembly
HEATER UNIT AND BLOWER ASSEMBLYREMOVAL AND INSTALLATION
WARNING: Before removing the steering wheel assembly and driver's air bag module/knee air bag module, always refer to SRS - Service Precautions and Air bag Module and Clock Spring or Knee Air bag Module.)
Pre-removal & Post-installation Operation:
Removal Steps 1-8:
REMOVAL SERVICE POINTS
[[A]]SUCTION PIPE AND LIQUID PIPE DISCONNECTION
CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples. To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.
[[B]]HEATER UNIT AND DECK CROSSMEMBER ASSEMBLY REMOVAL

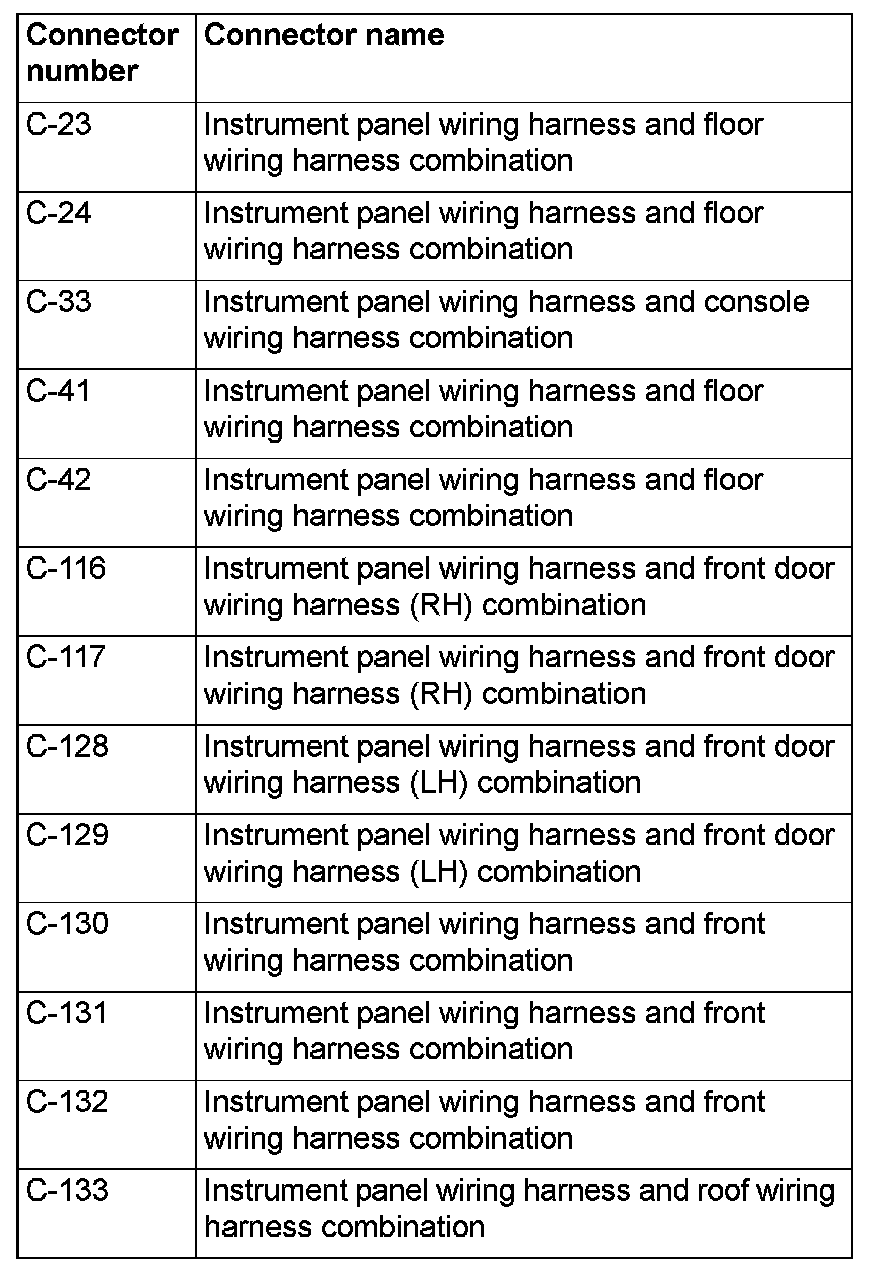

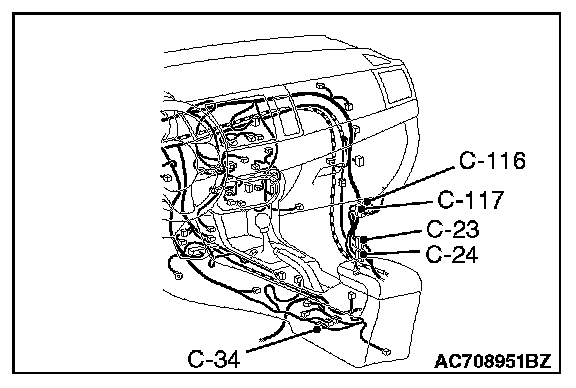

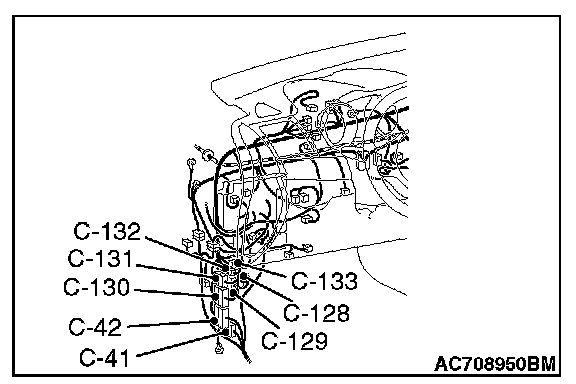

Disconnect the following connectors to gain access to the front deck crossmember.
