Removal and Replacement
REMOVAL AND INSTALLATIONCAUTION:
- To remove the driver's airbag module, refer to SRS-Service Precautions and Air Bag Module(s) and Clock Spring.
- When WCM has been replaced, all key ID codes should be registered, referring to the ID code registration necessity judgment table.

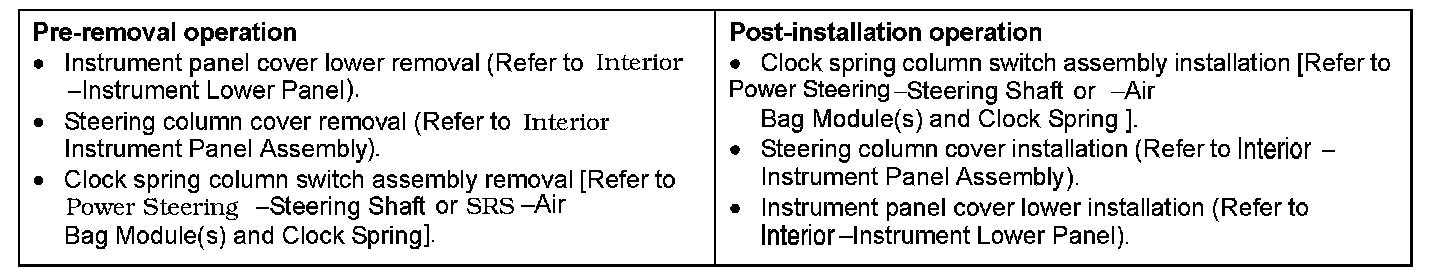

Pre-Removal And Post-Installation Operation:

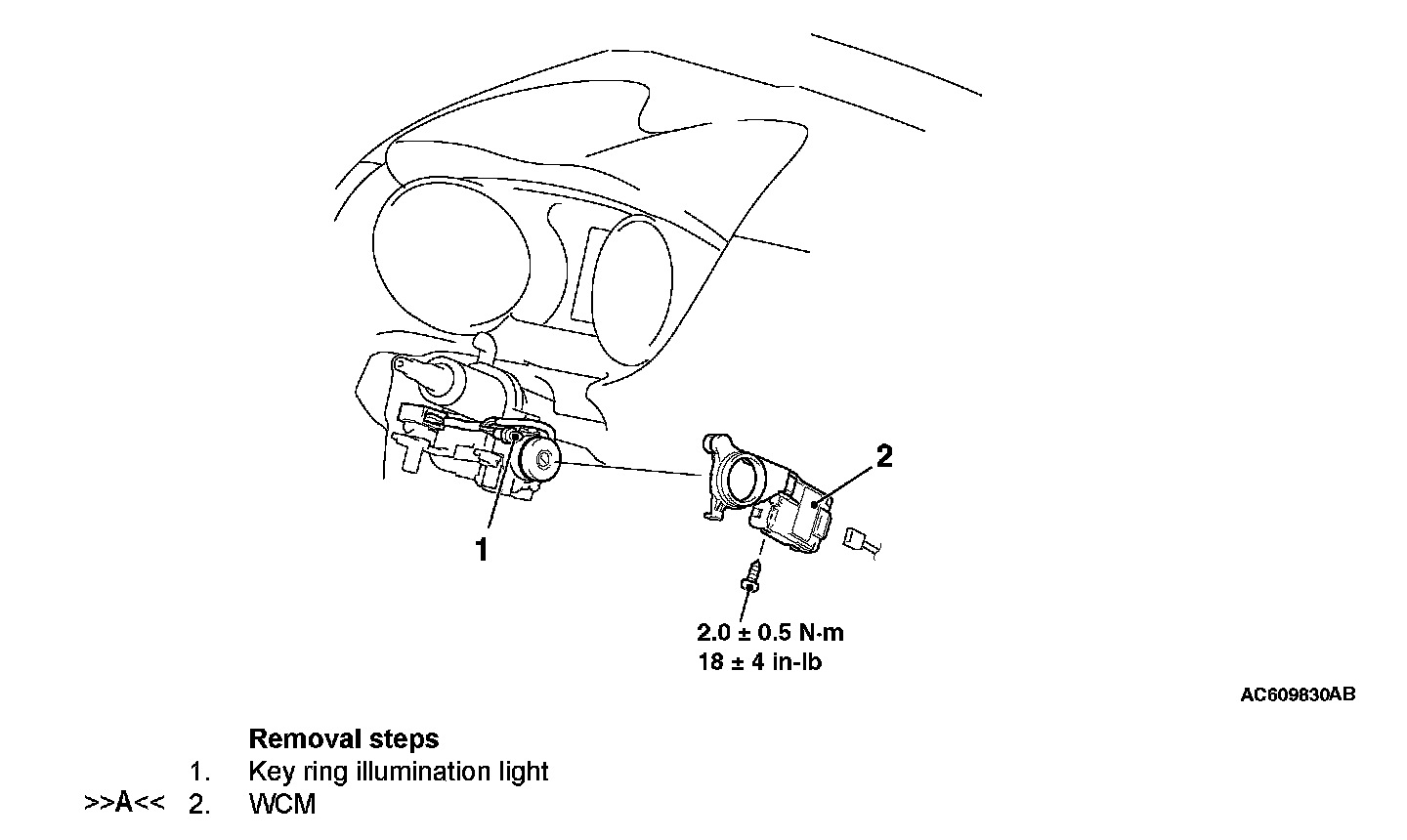

Removal Step 1-2:
INSTALLATION SERVICE POINT
>>A<< WCM INSTALLATION
Check that the top claw of WCM is fixed securely to the boss of steering lock and the antenna is not floated on the key cylinder.
