Data List Reference Table

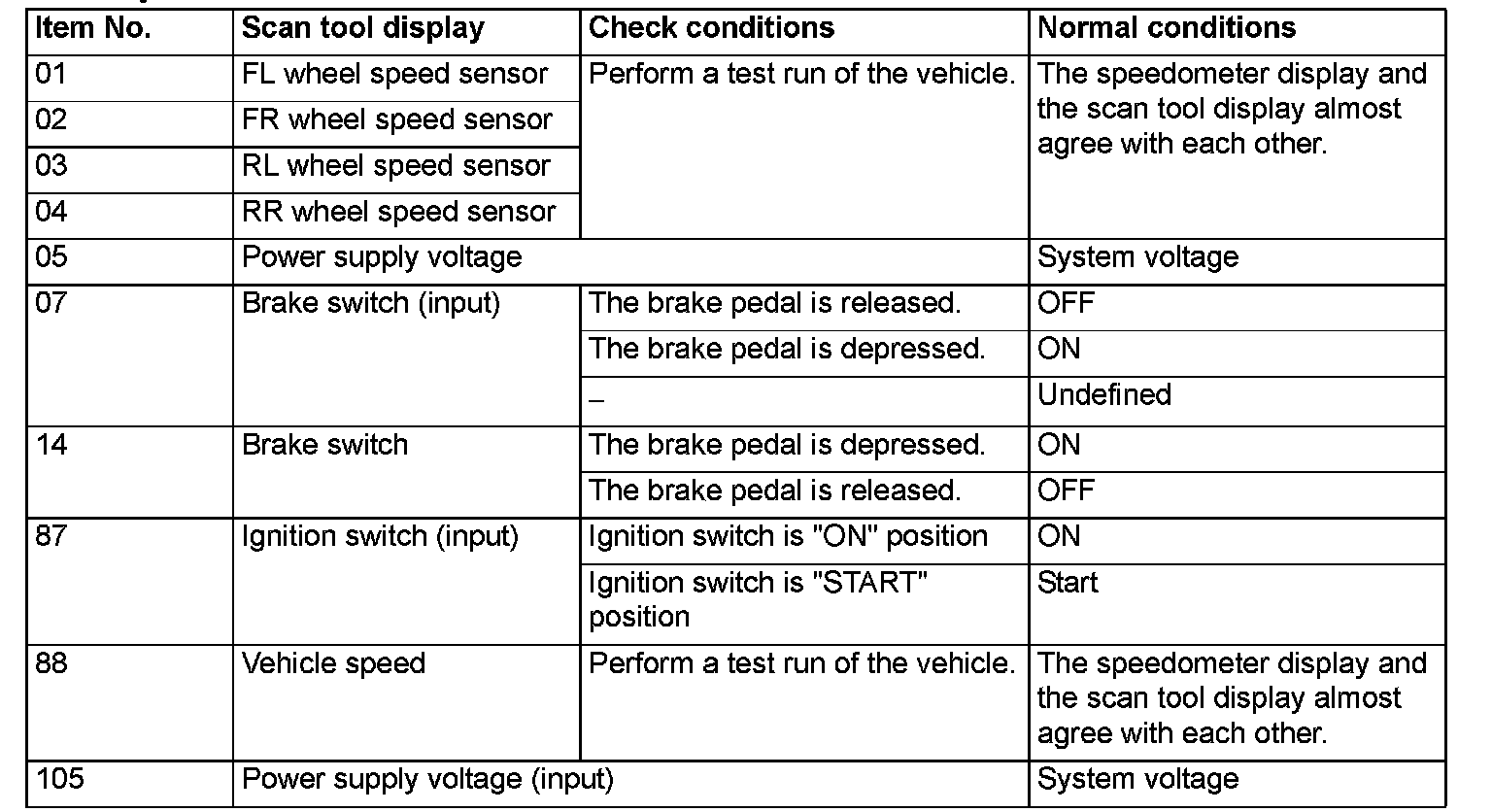

DATA LIST REFERENCE TABLE The following items can be read by the scan tool from the ABS-ECU input data.
The following items of ECU input data can be read using scan tool.
1.
The system is normal.
2.
System shutdown by ECU
While ABS-ECU is disabled by the diagnostic function, the scan tool displayed data is different from the actual measurement.
