A Connectors - Engine Compartment
A Connectors - Engine Compartment

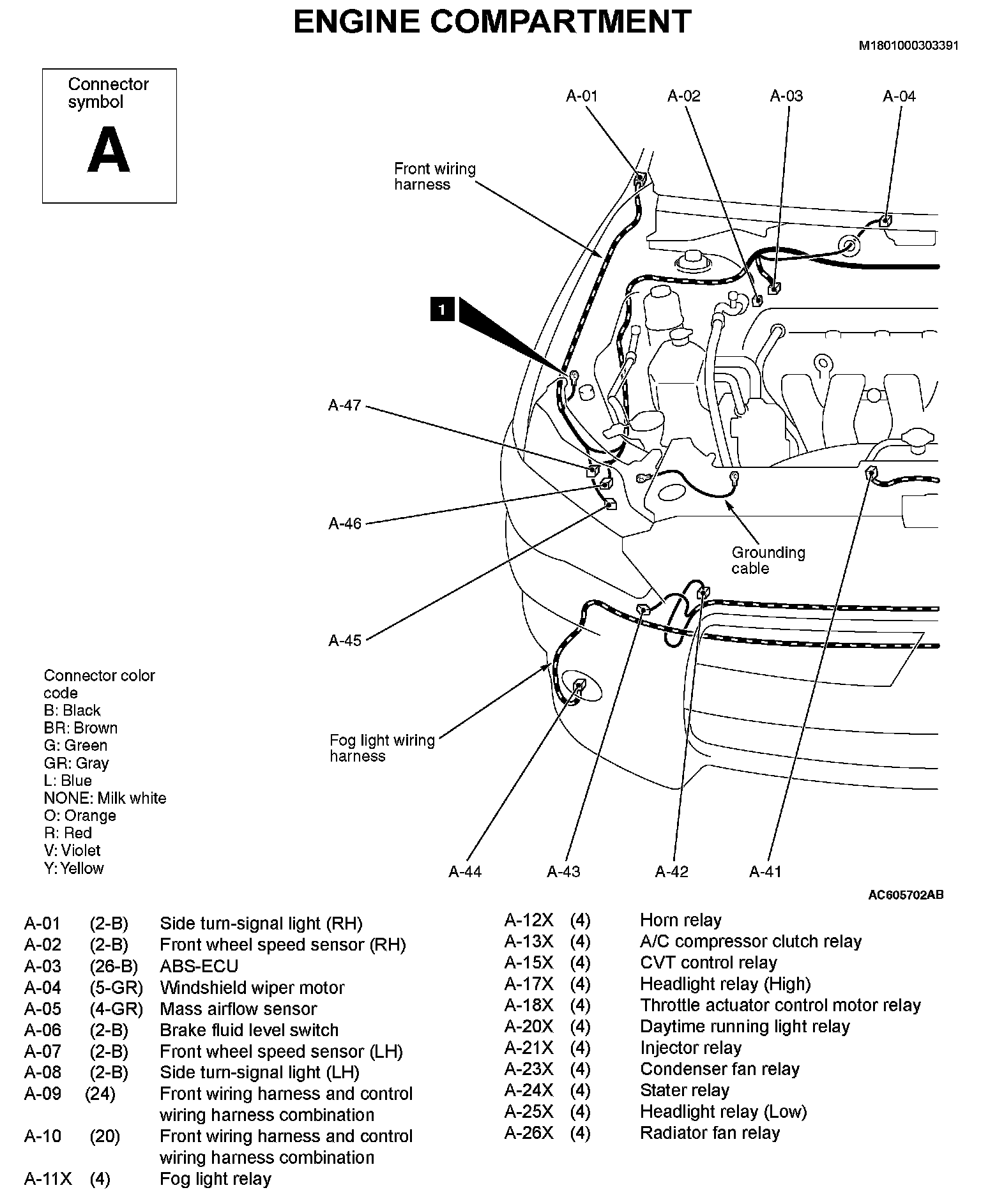

A-01 To A-47 (Part 1):

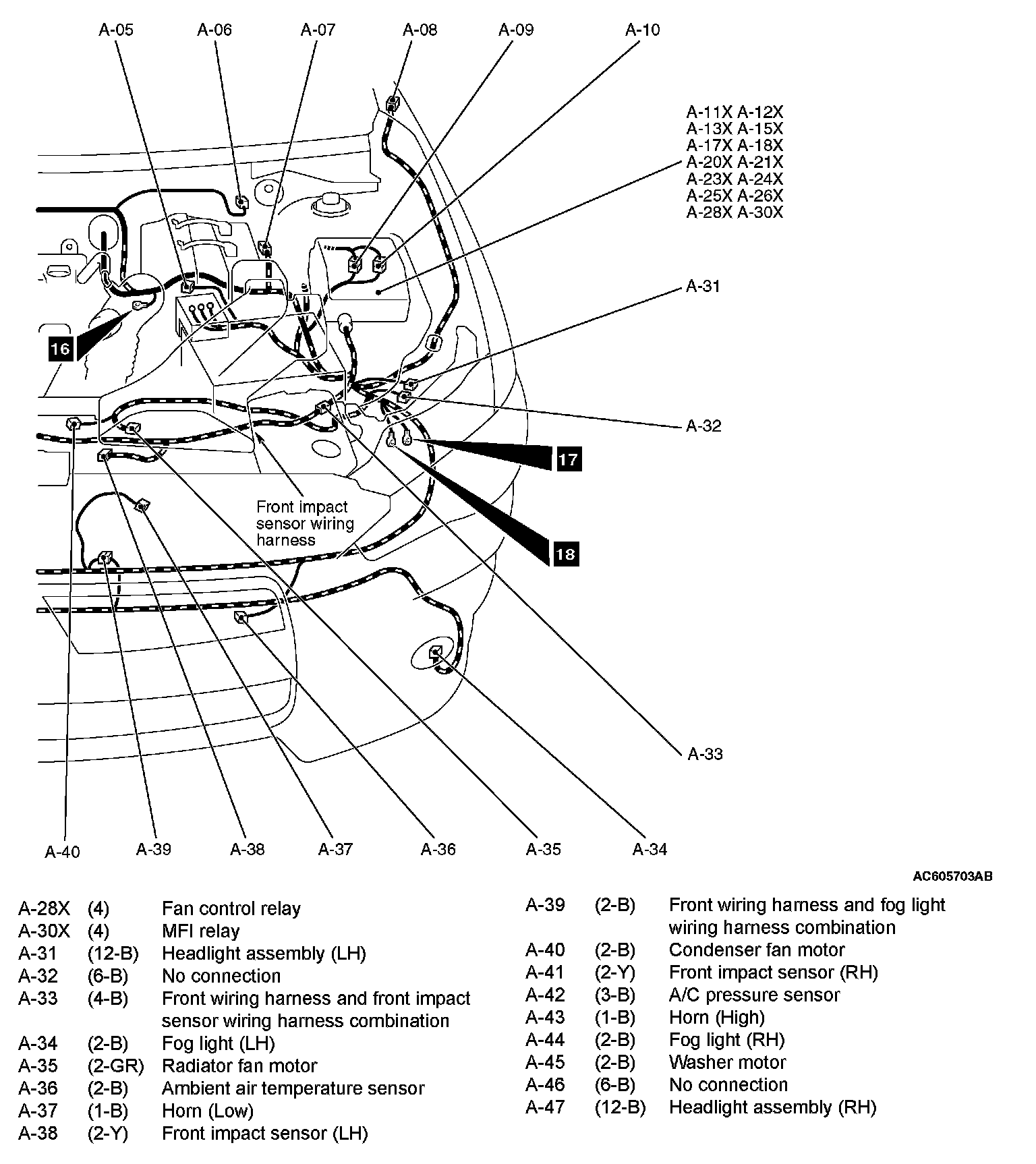

A-01 To A-47 (Part 2):
