Home >> Mitsubishi >> 2008 >> Lancer L4-2.0L (4B11) >> Repair and Diagnosis >> Diagrams >> Connectors >> B Connectors - Engine and Transaxle >> B-101 to B-119

B-101 to B-119

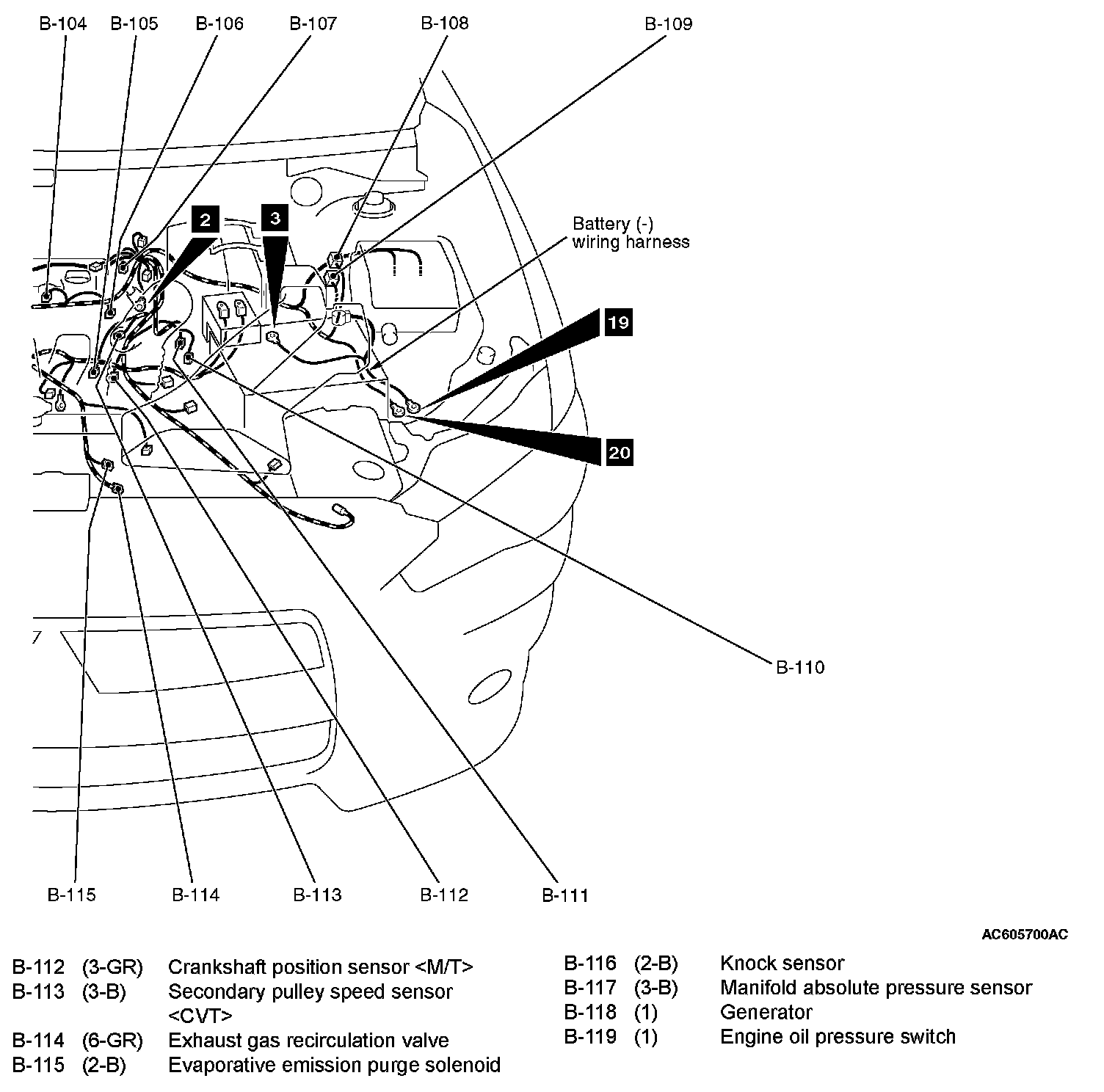

B-101 To B-119 (Part 1):

B-101 To B-119 (Part 2):
