Speedometer Check

ON-VEHICLE SERVICE

SPEEDOMETER CHECK
1. Adjust the pressure of tires to the specified level (Refer to Tire an Wheel, On-vehicle Service).
2. Where applicable, ensure that the TPMS warning light is not illuminating or flashing.

CAUTION: Do not accelerate or decelerate suddenly during servicing work.

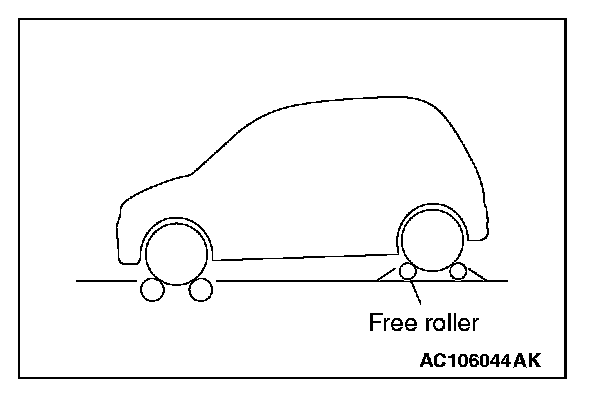

3. For FWD vehicles, set the vehicle onto a speedometer tester and use wheel chocks to hold the rear wheels.

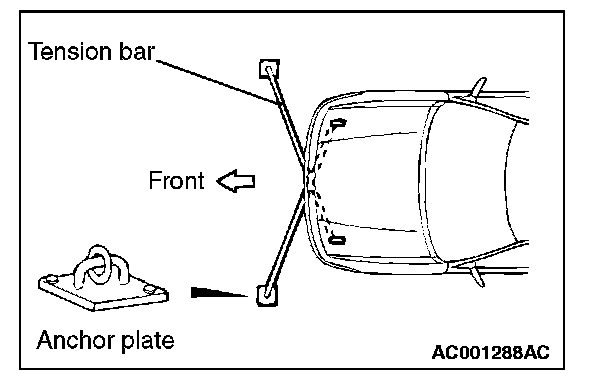

4. To prevent the front wheel from moving from side to side, attach tension bars to the tie-down hook, and secure both ends to anchor plates.
5. To prevent the vehicle from moving, attach a chain or wire to the rear retraction hook, and make sure the end of the chain or wire is secured.

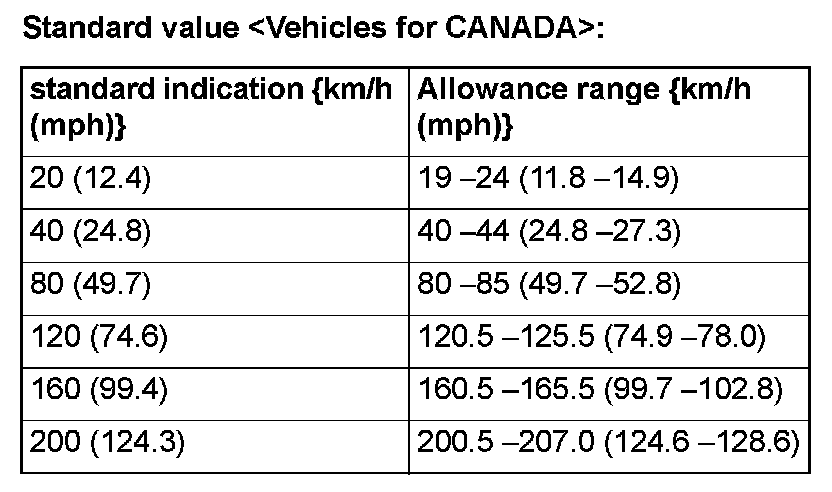

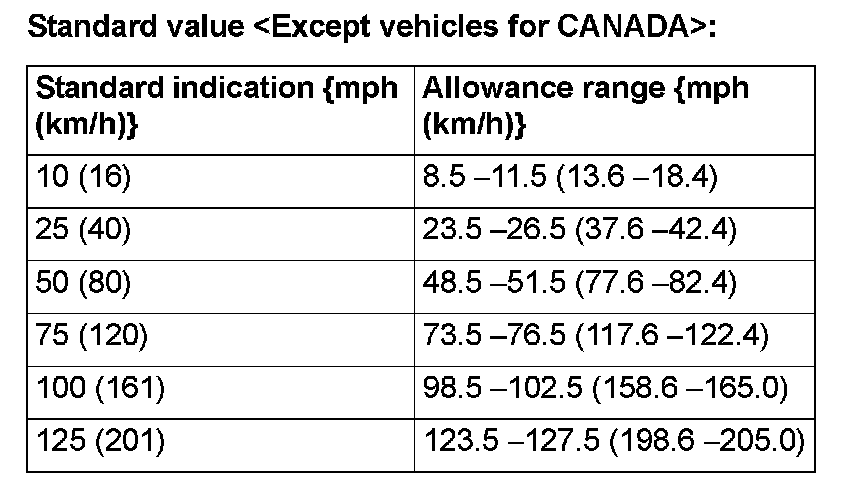

6. Check if the speedometer indicator range is within the standard values.











7. If not within the standard value, check the tire size. If an incorrect size of tire is used, replace it and check again. If the tire size is correct, a defect may be present in components and circuit between the output shaft speed sensor and the combination meter. Check the following items.
- output shaft speed sensor (Refer to CVT Diagnosis).
- Combination meter. Diagnostic Trouble Code Descriptions
