Injector Check

INJECTOR CHECK




1. Disconnect the injector connector.

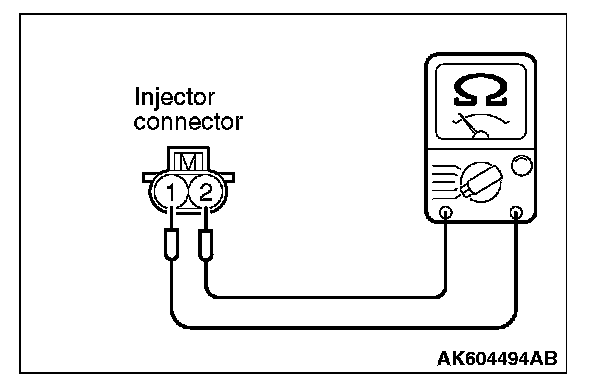

2. Measure the resistance between injector side connector terminals 1 and 2.

Standard value: 10.5 - 13.5 ohms [at 20 °C (68 °F)]

3. Connect the injector connector.
