Multiport Fuel Injection (MFI) Relay Continuity Check

MULTIPORT FUEL INJECTION (MFI) RELAY CONTINUITY CHECK

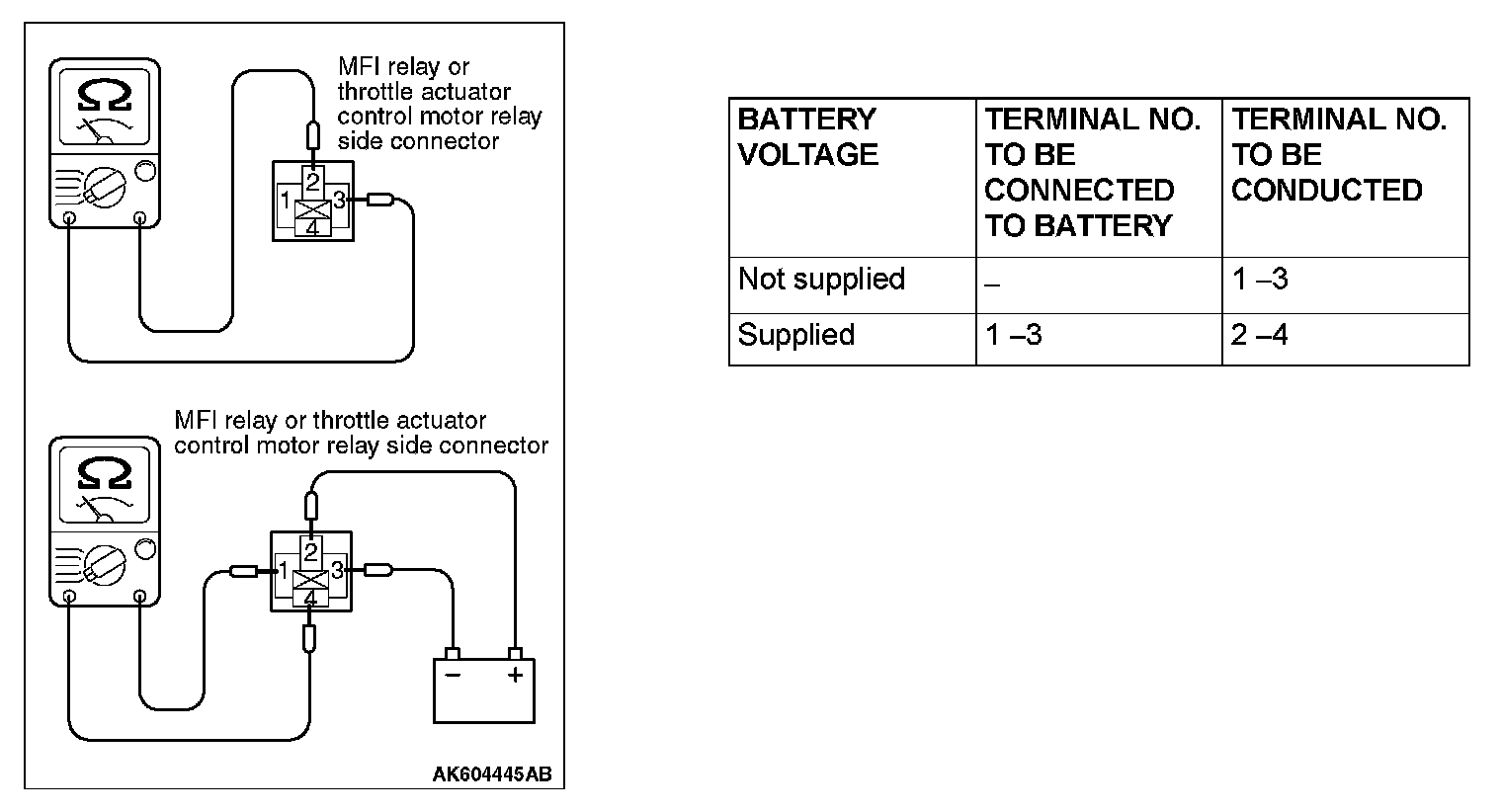

Inspect the MFI relay for continuity in accordance with the chart shown.
