Headlamp Relay: Testing and Inspection
HEADLIGHT RELAY CHECK
HEADLIGHT RELAY (LOW) CHECK
Headlight Relay (Low) Check:

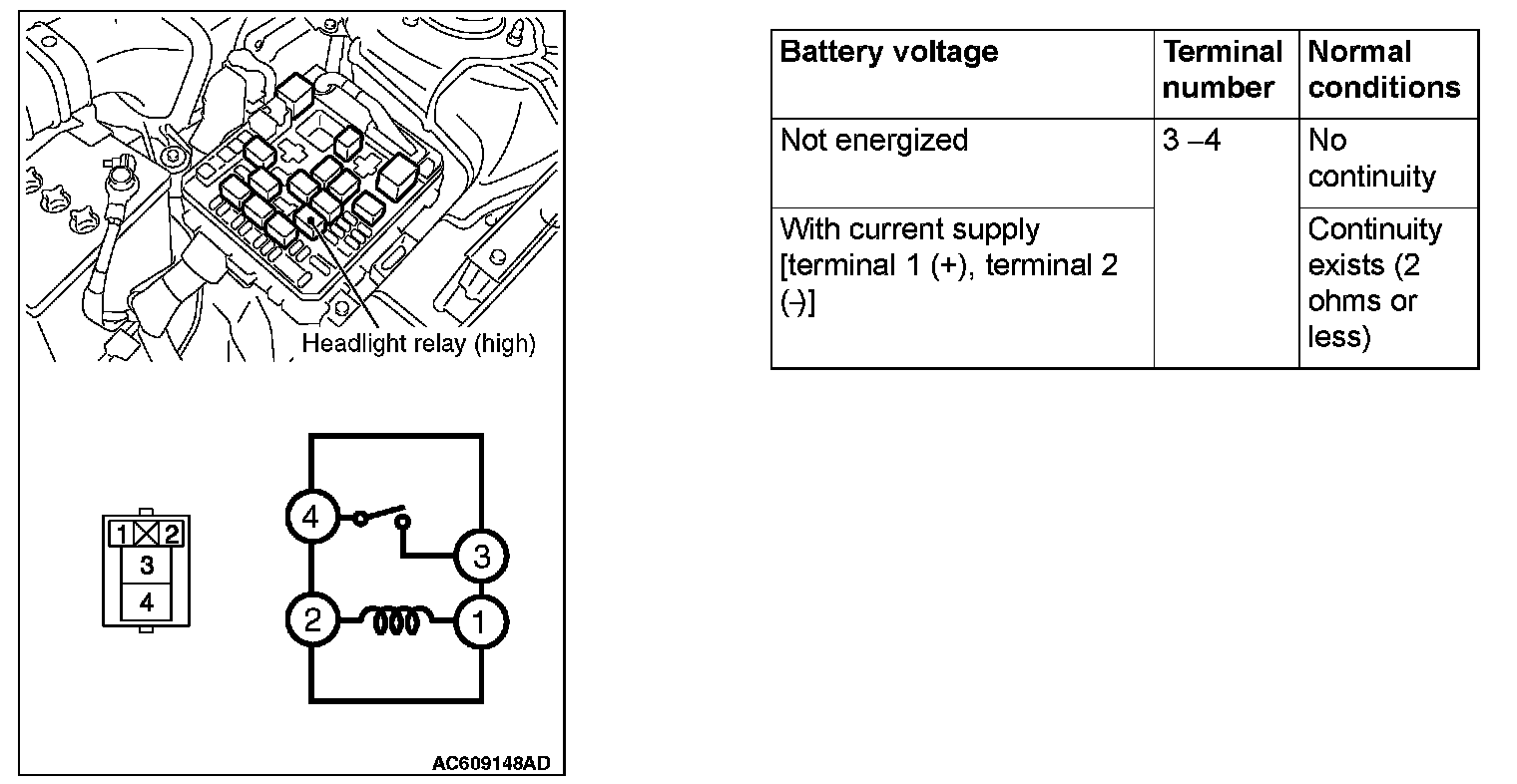

HEADLIGHT RELAY (HIGH) CHECK
Headlight Relay (High) Check:
