Diagnostic Troubleshooting Flow
DIAGNOSIS
DIAGNOSTIC TROUBLESHOOTING FLOW

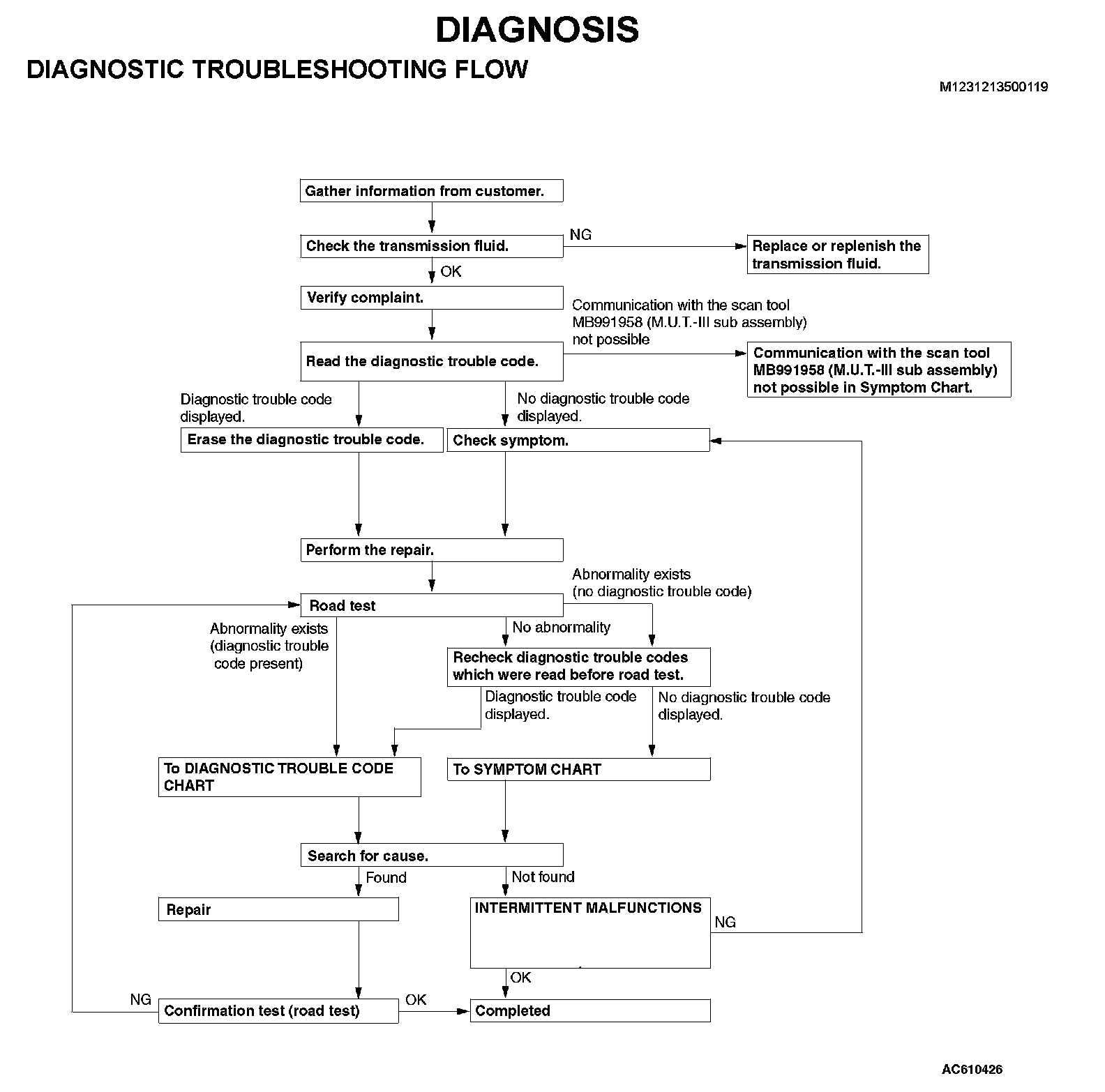

Diagnostic Troubleshooting Flow:
