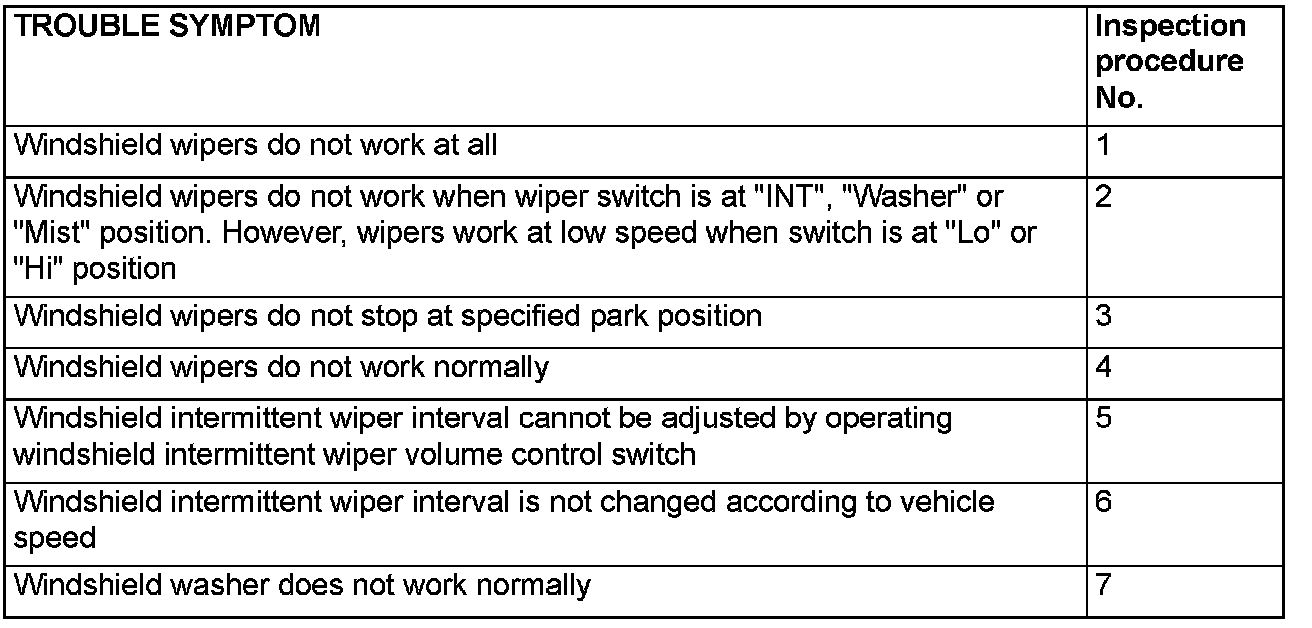

TROUBLE SYMPTOM CHART
Trouble Symptom Chart:
NOTE:
Even when the ETACS-ECU has failed, the windshield wipers can work at low speed as fail-safe mode.
