Front Fender Liner: Service and Repair

LINER - FRONT FENDER

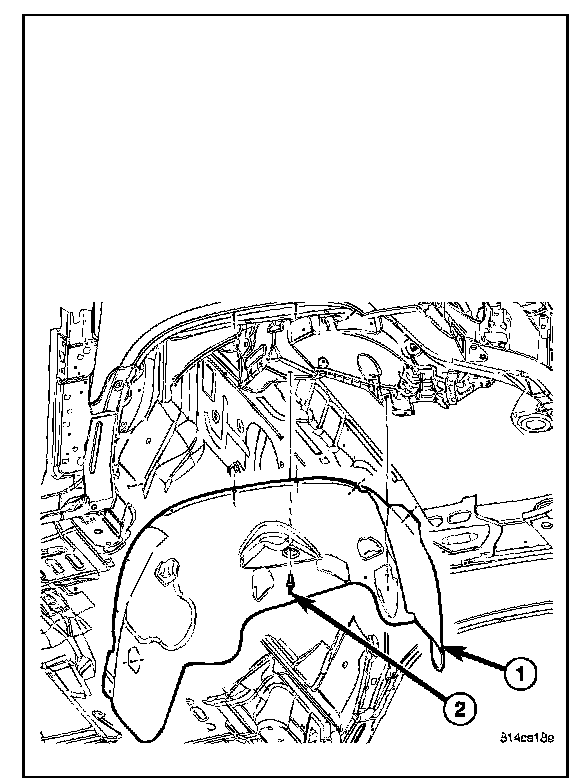

REMOVAL






1. If required, remove wheel.
2. Remove push pins.
3. Remove the rivets.
4. Remove liner.

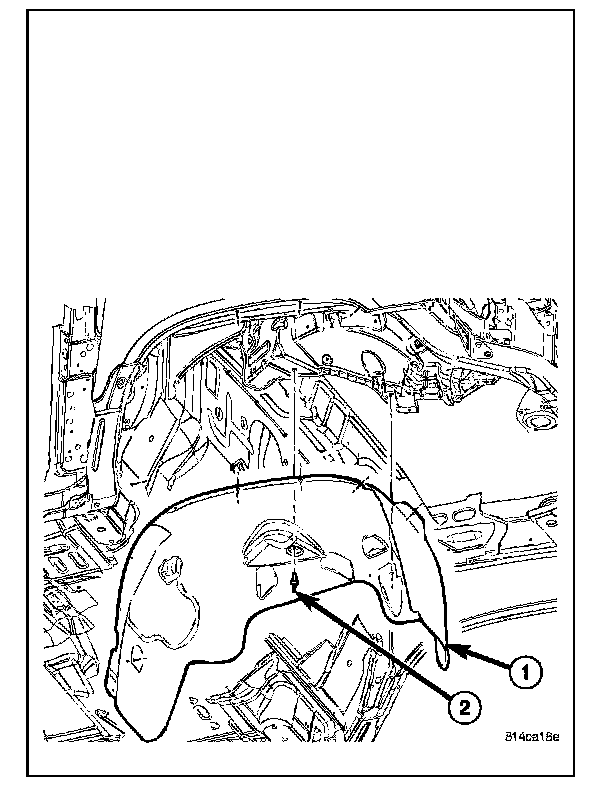

INSTALLATION






1. Install liner.
2. Install push pins and rivets.
3. Install wheel if removed.
