Backup Lamp
>>
System Diagram
System Diagram

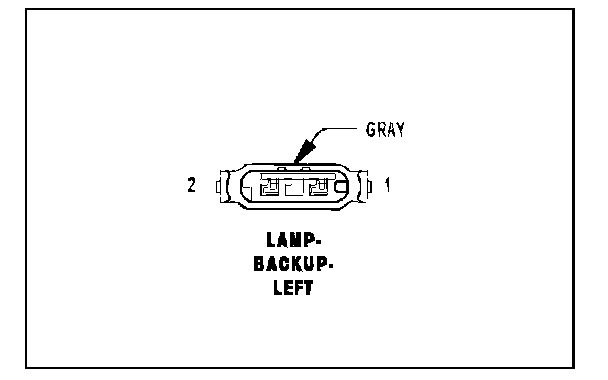

Lamp - Backup - Left - Gray (Chassis) 2 Way (Part 1):

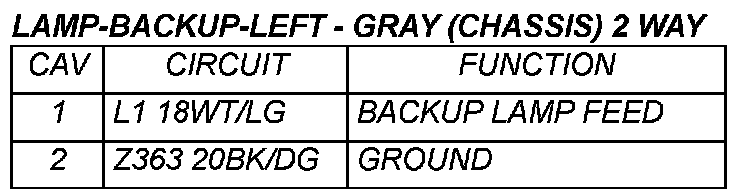

Lamp - Backup - Left - Gray (Chassis) 2 Way (Part 2):

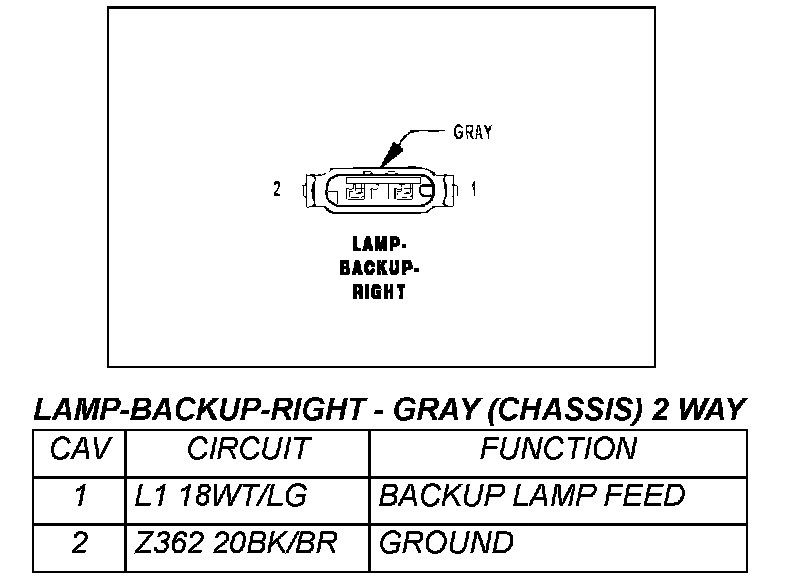

Lamp - Backup - Right - Gray (Chassis) 2 Way:
