Home >> Mitsubishi >> 2008 >> Raider 2WD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dome Lamp

Dome Lamp

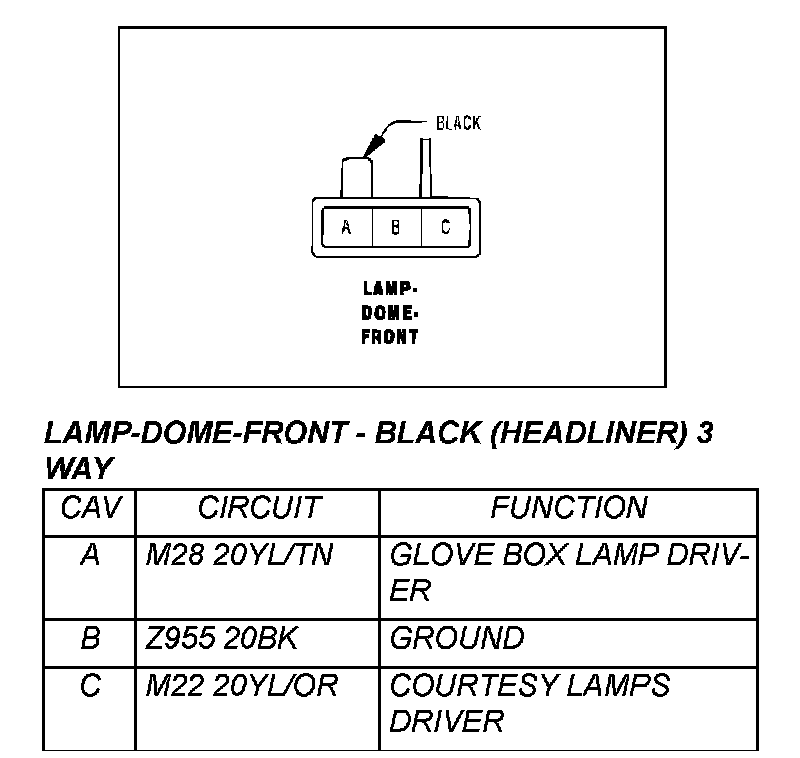

Lamp - Dome - Front - Black (Headliner) 3 Way:

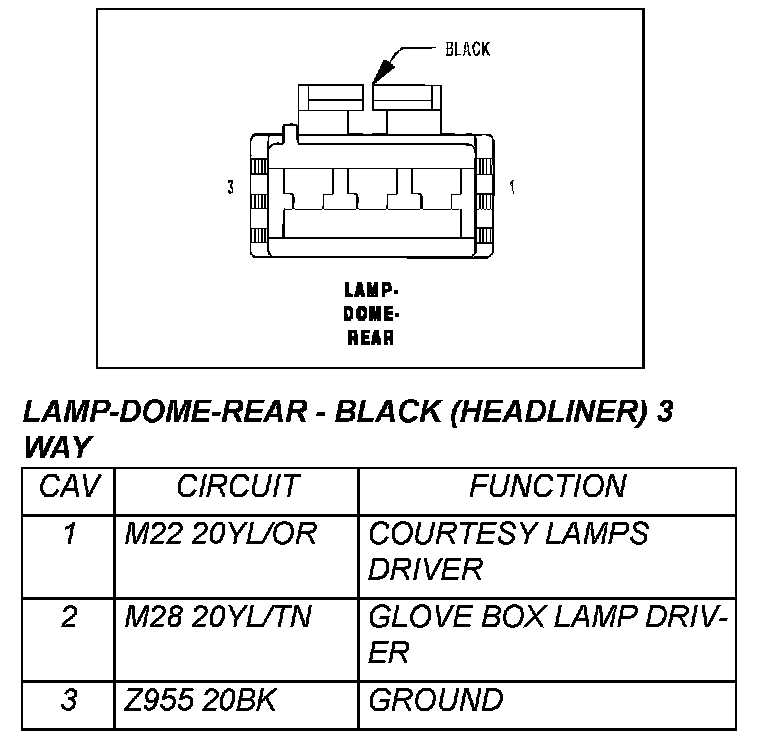

Lamp - Dome - Rear - Black (Headliner) 3 Way:
