Home >> Mitsubishi >> 2008 >> Raider 2WD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Front Door Latch

Front Door Latch

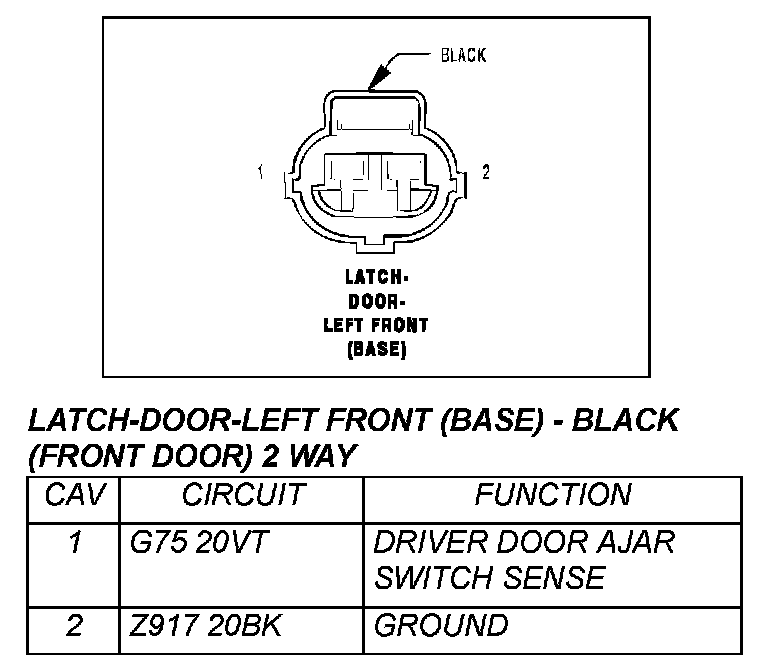

Latch - Door - Left Front (Base) - Black (Front Door) 2 Way:

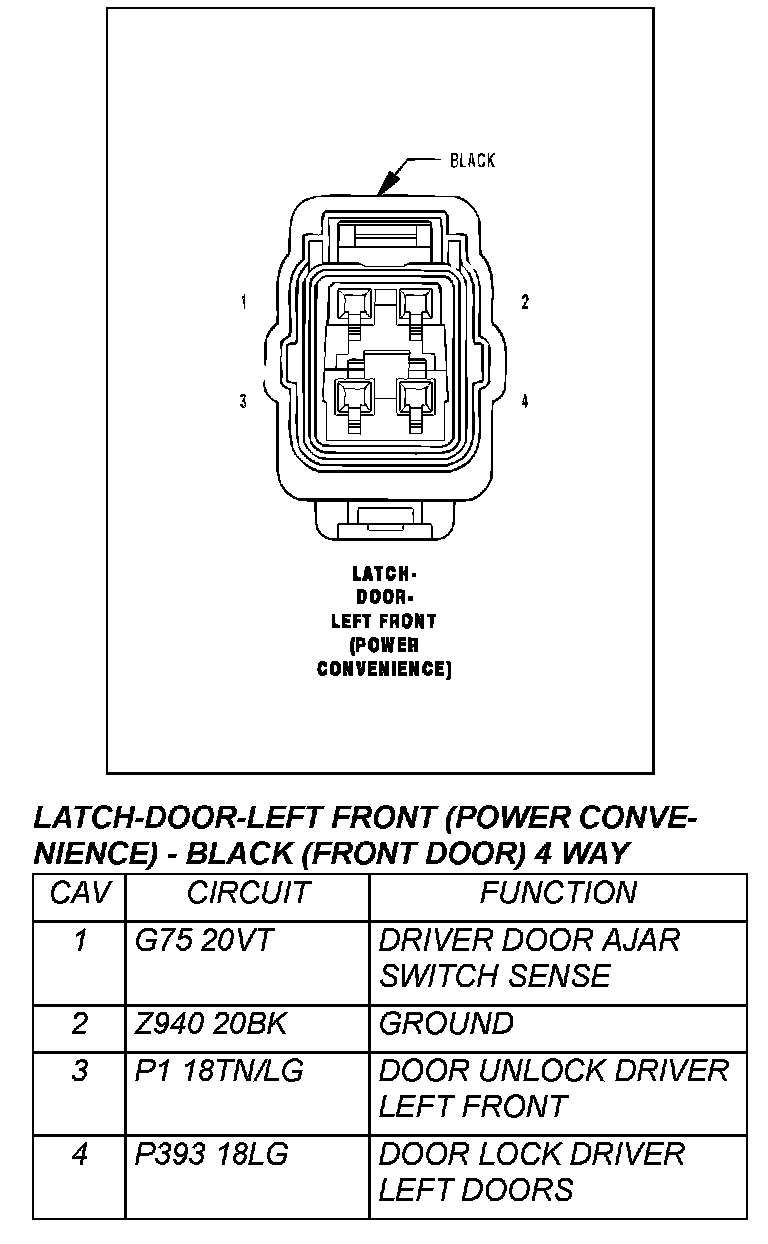

Latch - Door - Left Front (Power Convenience) - Black (Front Door) 4 Way:



Latch - Door - Right Front (Base) - Black (Front Door) 2 Way:

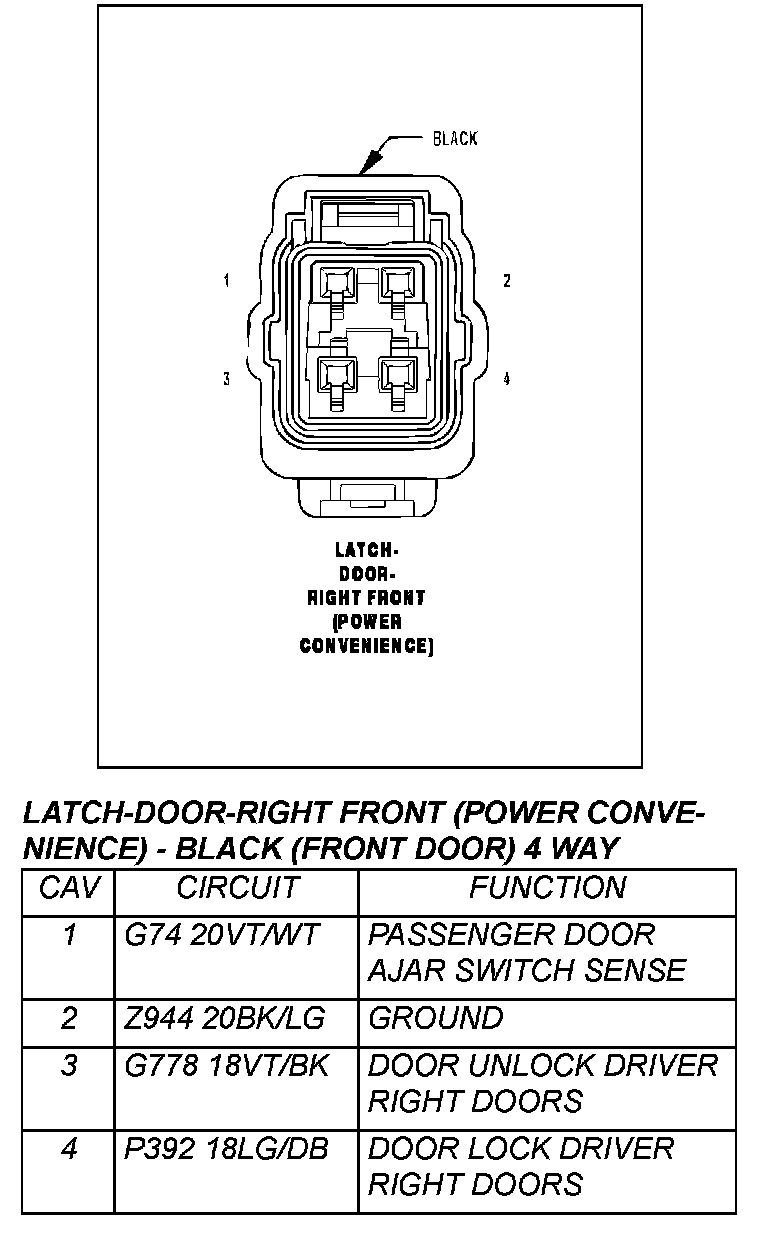

Latch - Door - Right Front (Power Convenience) - Black (Front Door) 4 Way:
