System Diagram

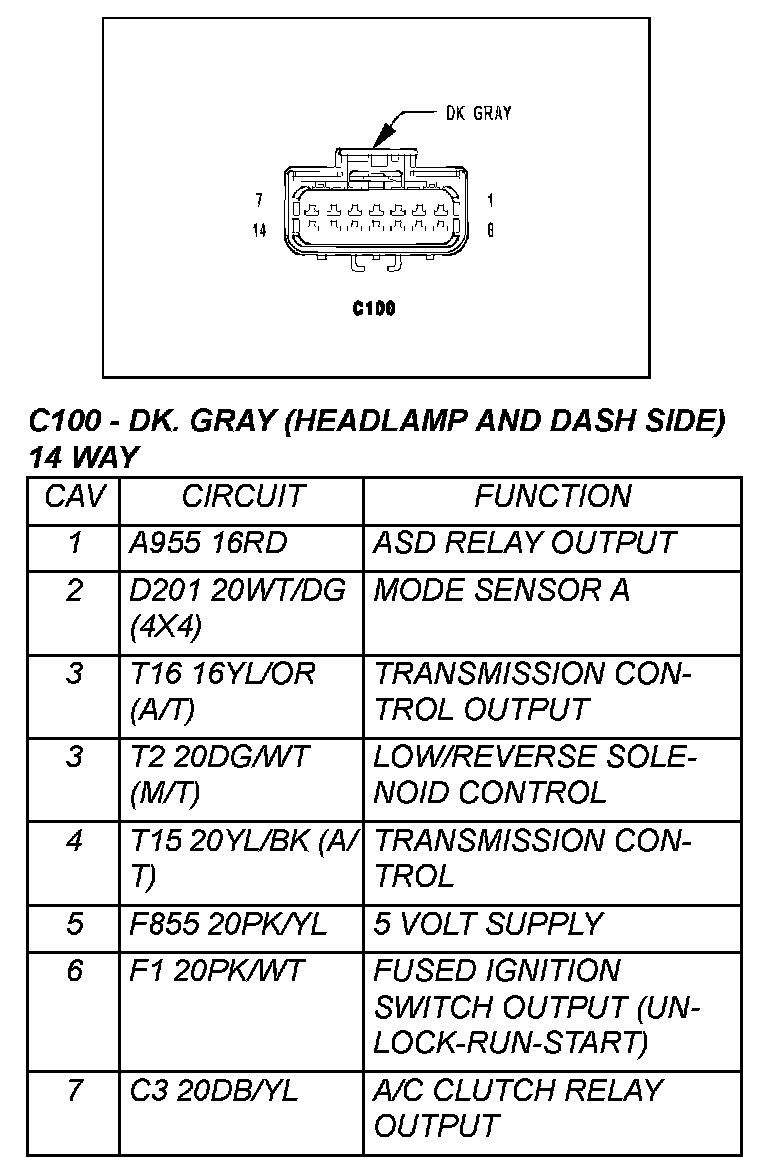

C100 - DK. Gray (Headlamp And Dash Side) 14 Way (Part 1):

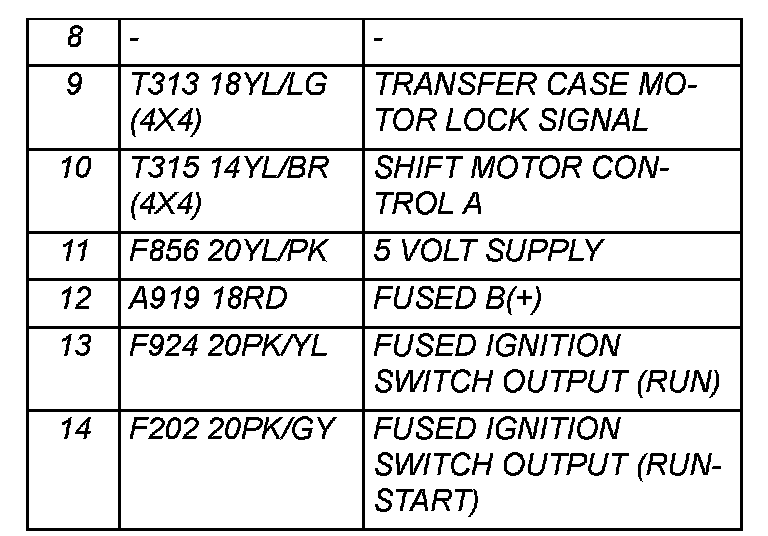

C100 - DK. Gray (Headlamp And Dash Side) 14 Way (Part 2):

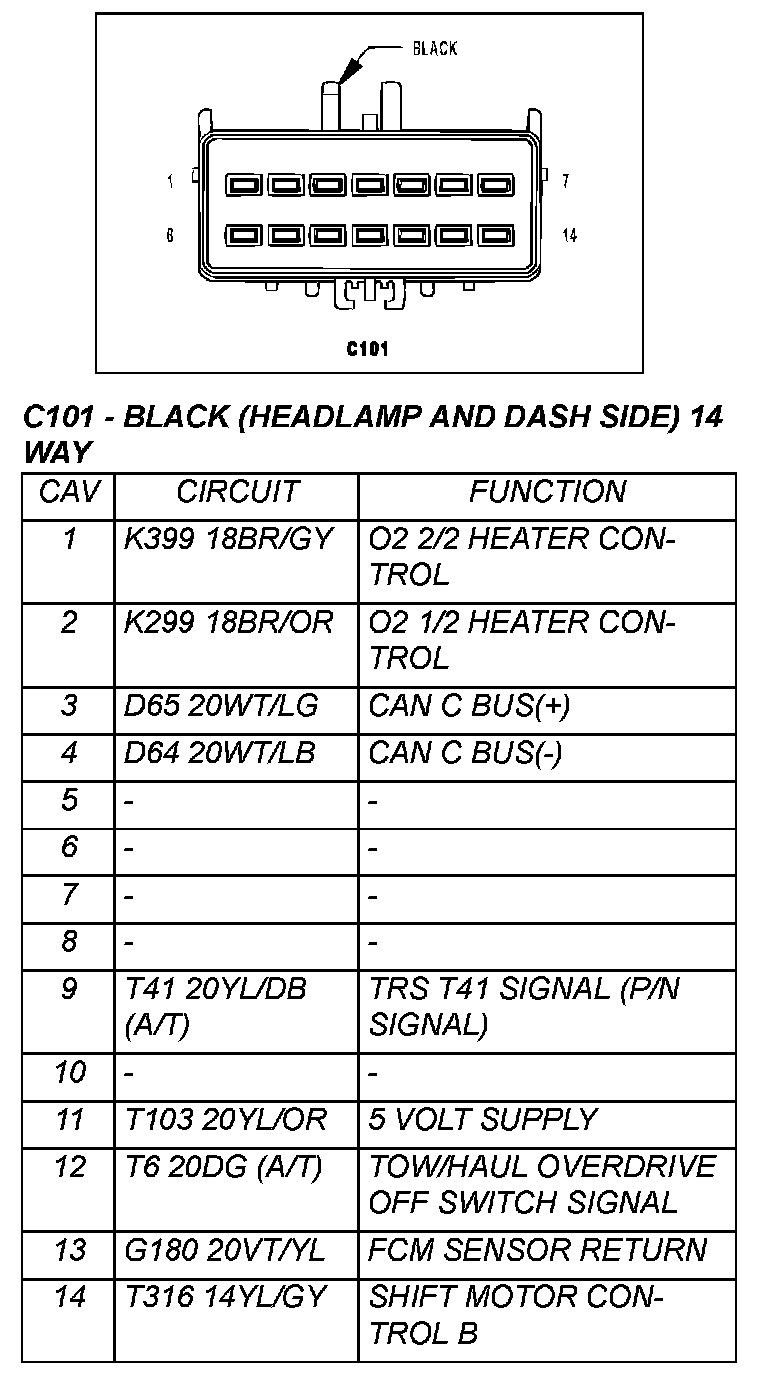

C101 - Black (Headlamp And Dash Side) 14 Way:

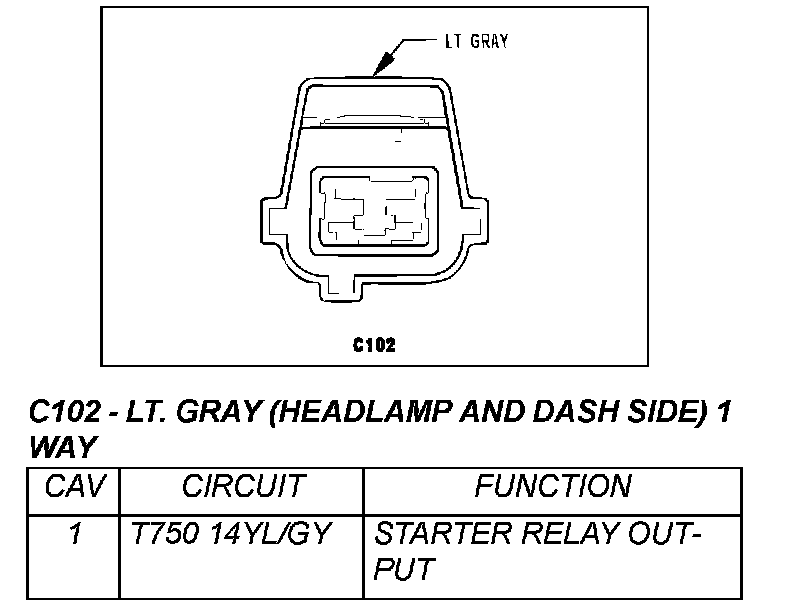

C102 - LT. Gray (Headlamp And Dash Side) 1 Way:

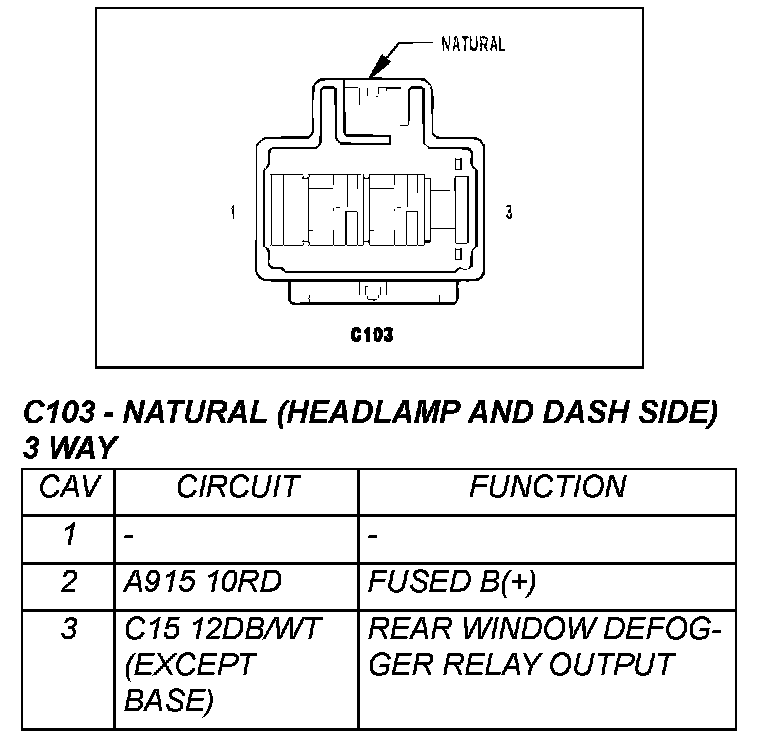

C103 - Natural (Headlamp And Dash Side) 3 Way:

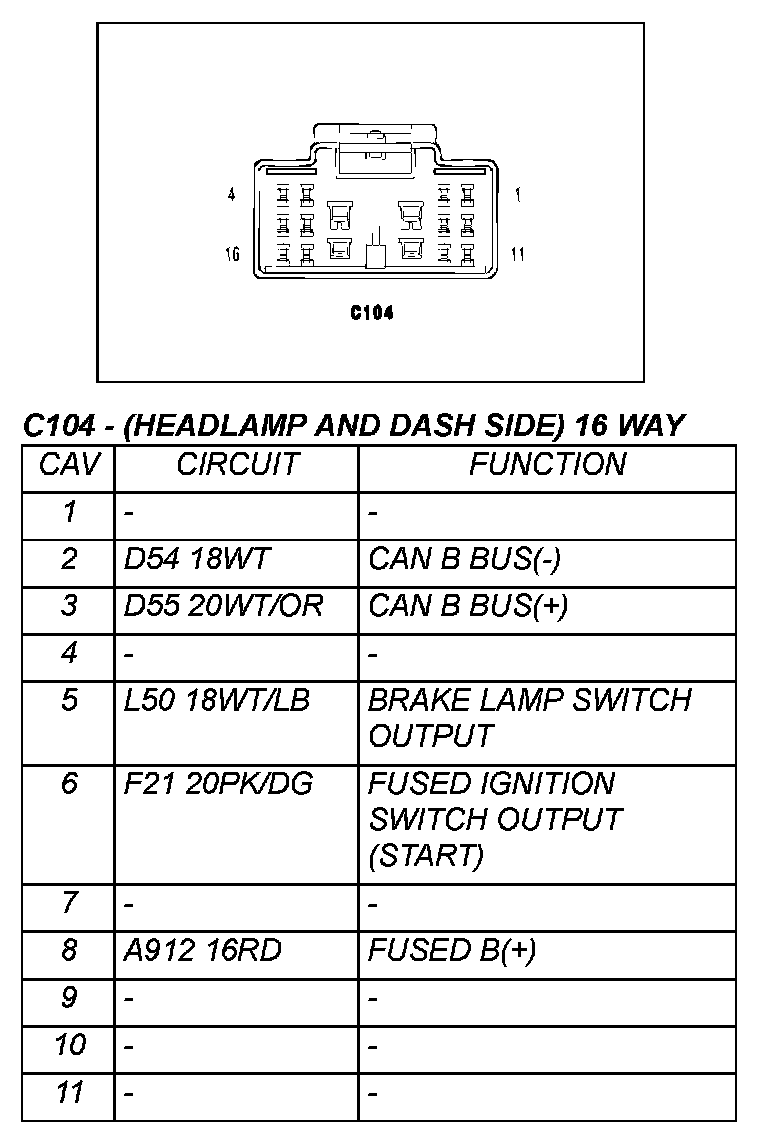

C104 - (Headlamp And Dash Side) 16 Way (Part 1):

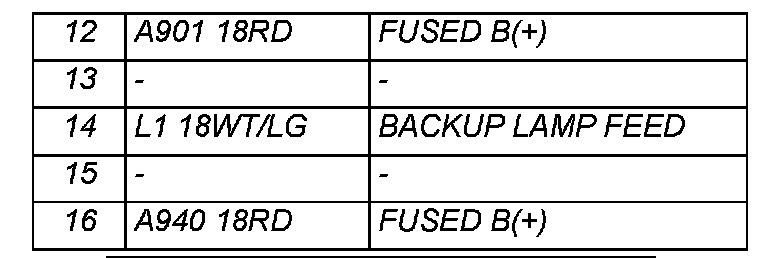

C104 - (Headlamp And Dash Side) 16 Way (Part 2):

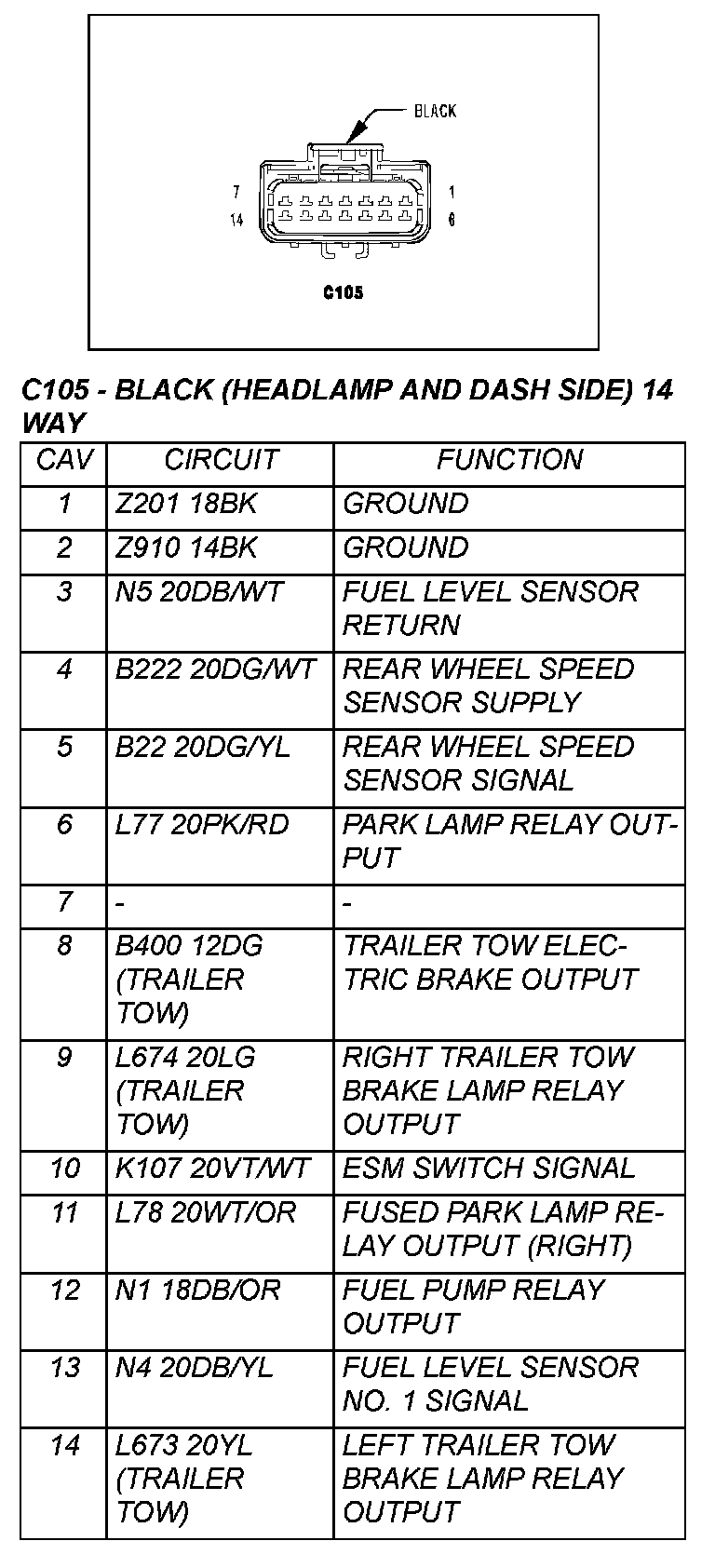

C105 - Black (Headlamp And Dash Side) 14 Way:

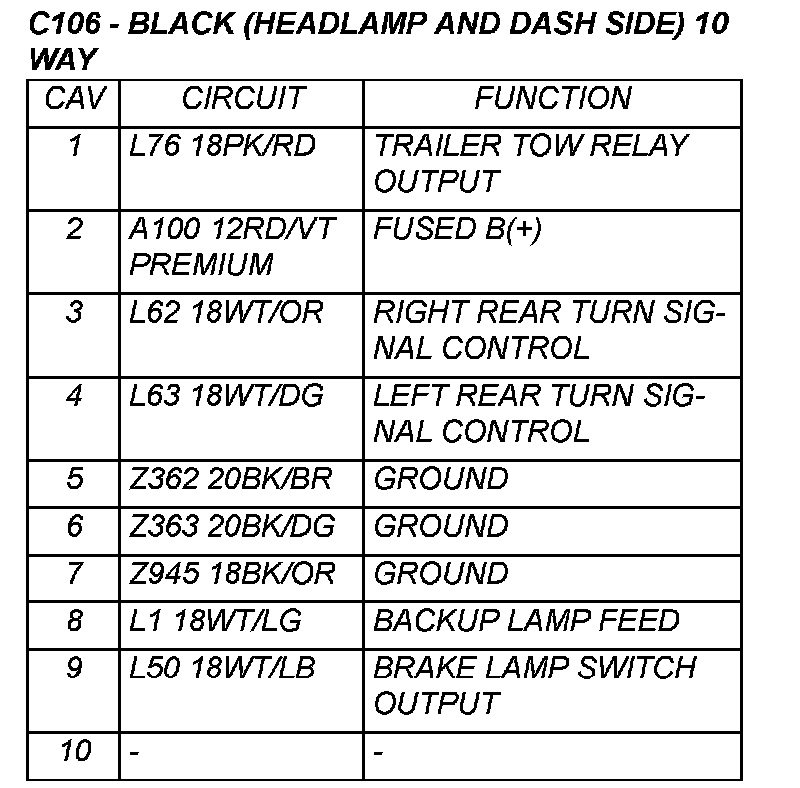

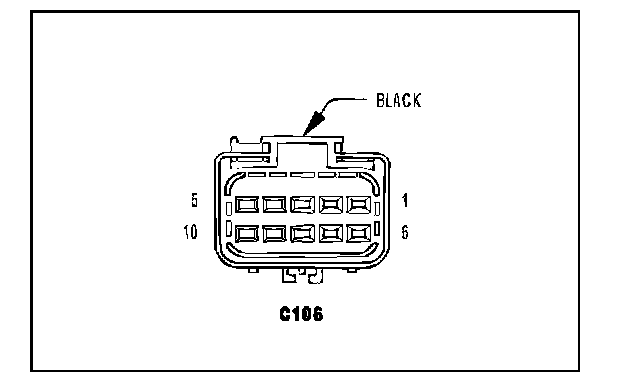

C106 - Black (Headlamp And Dash Side) 10 Way (Part 1):

C106 - Black (Headlamp And Dash Side) 10 Way (Part 2):

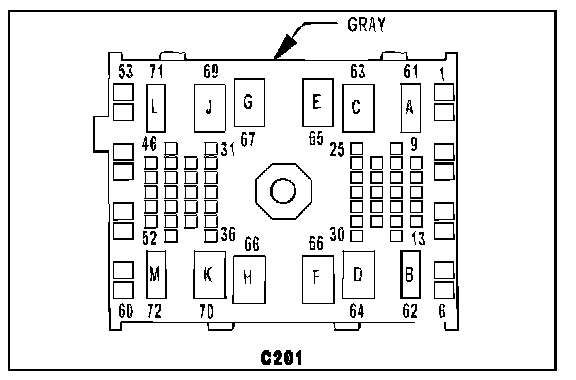

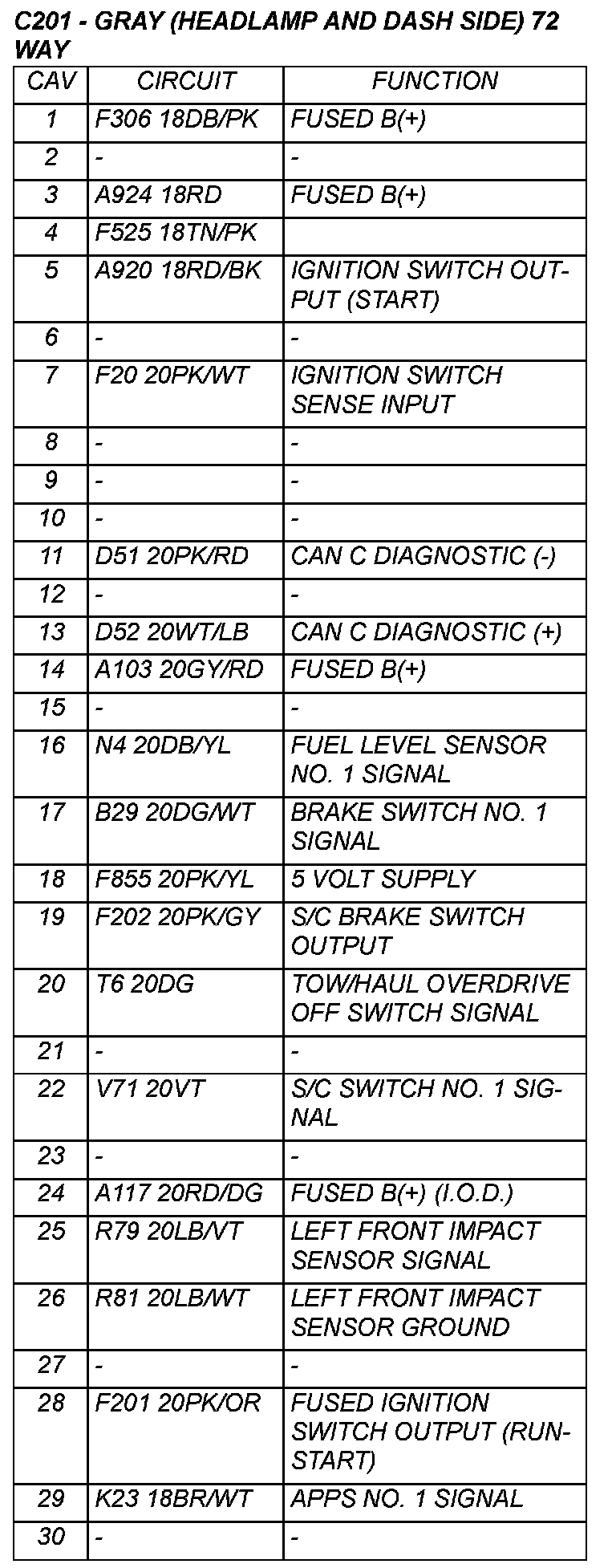

C201 - Gray (Headlamp And Dash Side) 72 Way (Part 1):

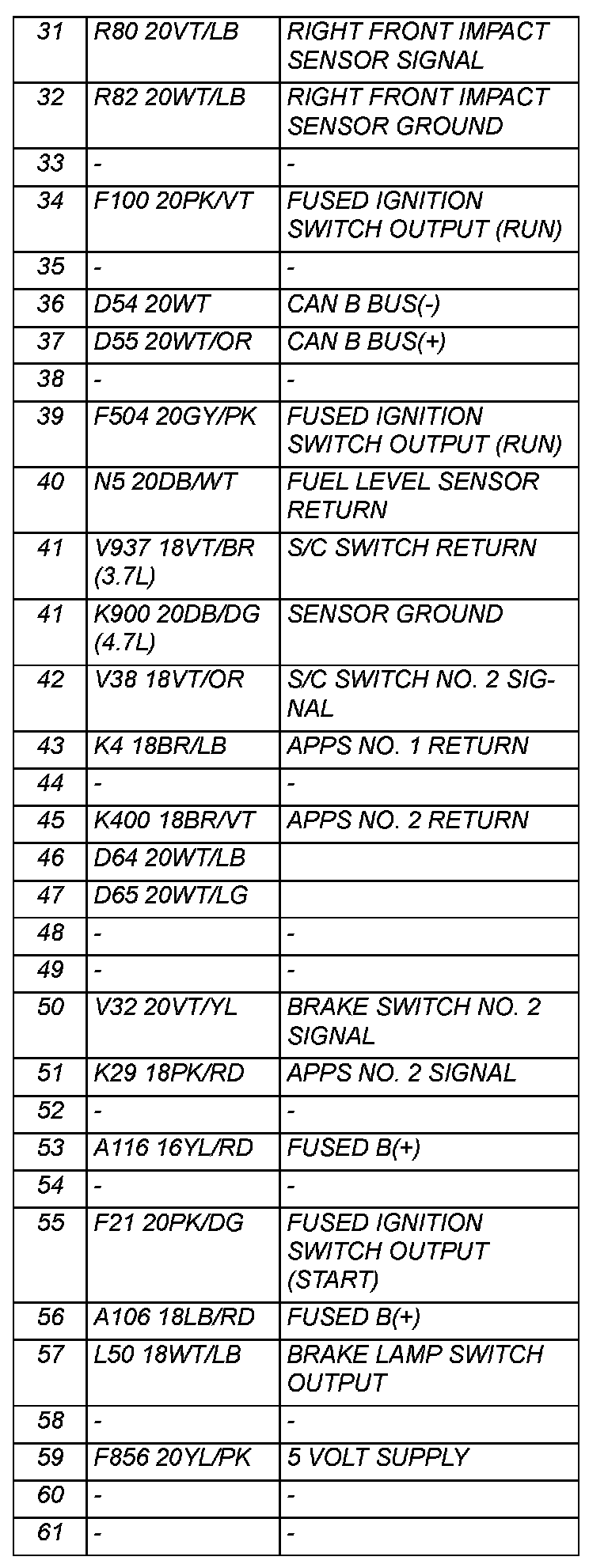

C201 - Gray (Headlamp And Dash Side) 72 Way (Part 2):

C201 - Gray (Headlamp And Dash Side) 72 Way (Part 3):

C201 - Gray (Headlamp And Dash Side) 72 Way (Part 4):

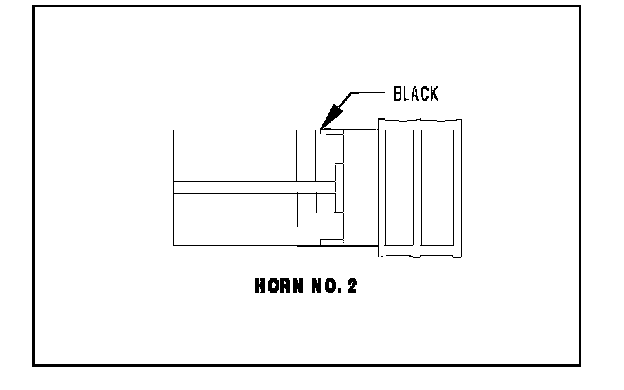

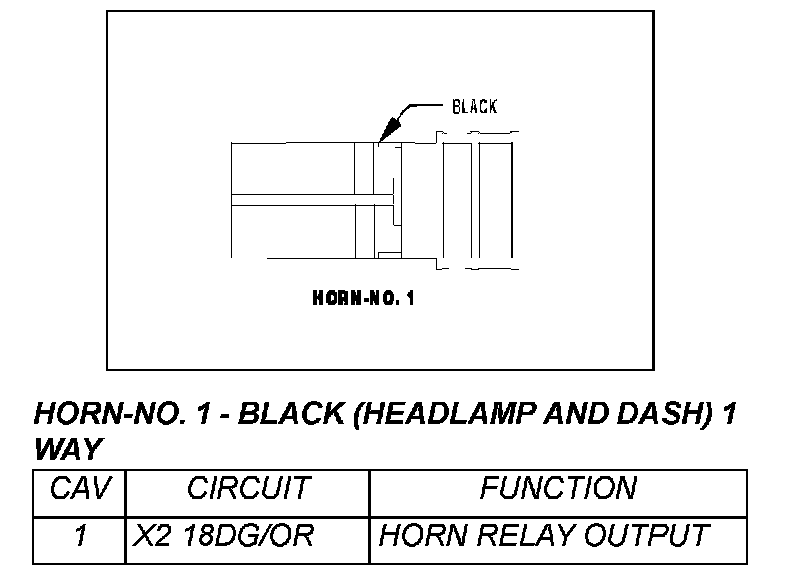

Horn - No. 1 - Black (Headlamp And Dash) 1 Way:

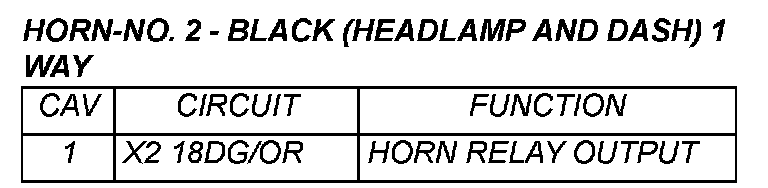

Horn - No. 2 - Black (Headlamp And Dash) 1 Way (Part 1):

Horn-No. 2 - Black (Headlamp And Dash) 1 Way (Part 2):

Lamp - Fog - Left Front - Black (Headlamp And Dash) 2 Way (Part 1):

Lamp - Fog - Left Front - Black (Headlamp And Dash) 2 Way (Part 2):

Lamp - Fog - Right Front - Black (Headlamp And Dash) 2 Way:

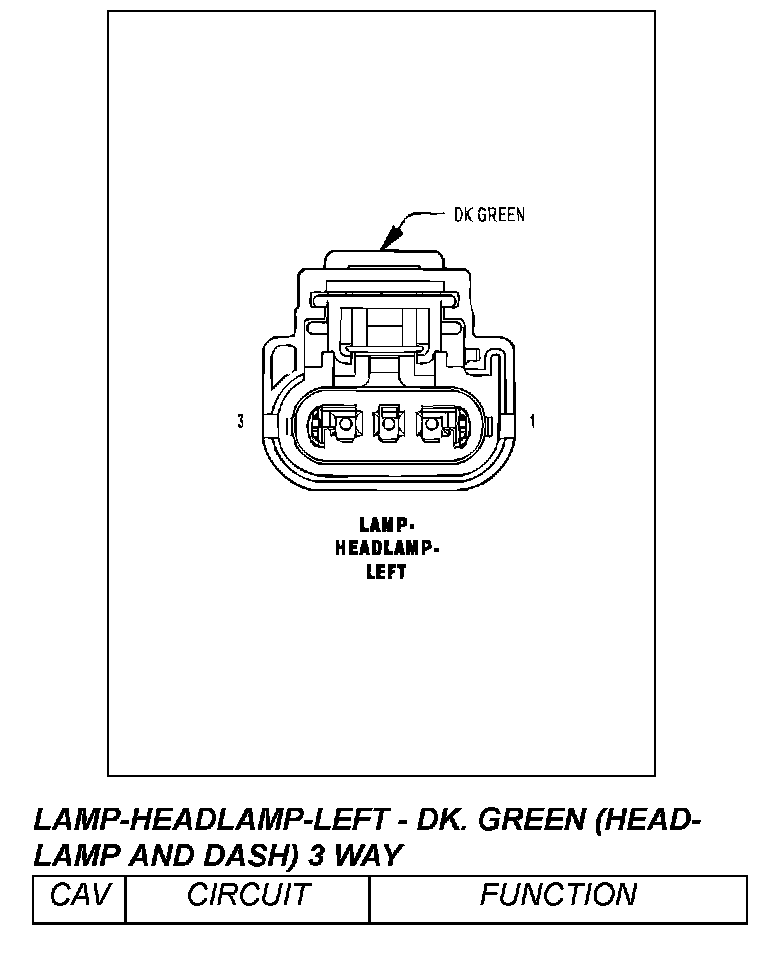

Lamp - Headlamp - Left - DK. Green (Headlamp And Dash) 3 Way (Part 1):

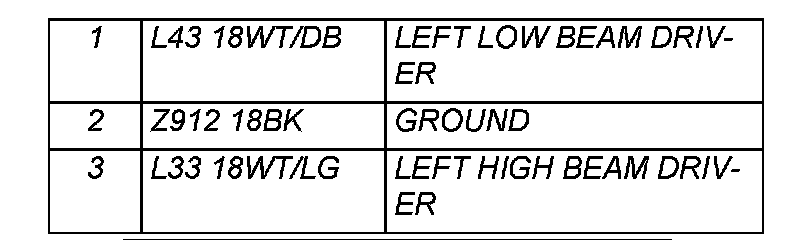

Lamp - Headlamp - Left - DK. Green (Headlamp And Dash) 3 Way (Part 2):

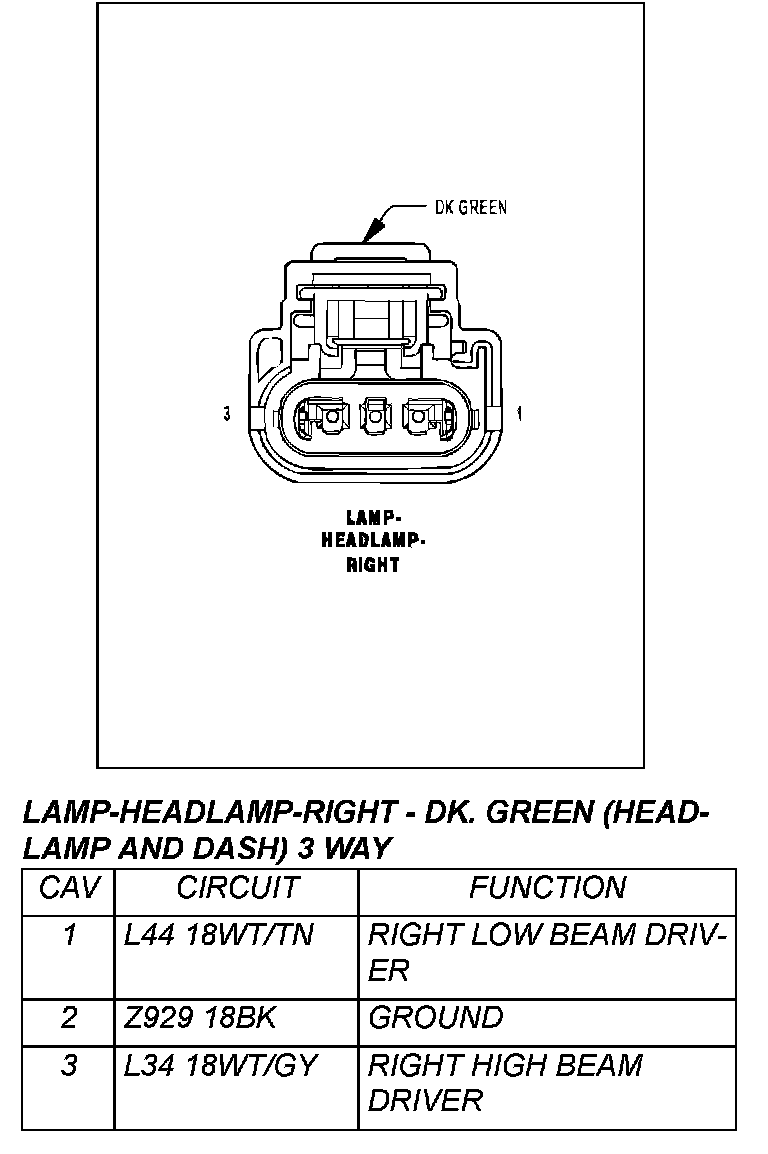

Lamp - Headlamp - Right - DK. Green (Headlamp And Dash) 3 Way:

Lamp Park/Turn - Left Front - Black (Headlamp And Dash) 3 Way:

Lamp Park/Turn - Right Front - Black (Headlamp And Dash) 3 Way (Part 1):

Lamp Park/Turn - Right Front - Black (Headlamp And Dash) 3 Way (Part 2):

Module - Anti-Lock Brakes (AWAL) - (Headlamp And Dash) 46 Way (Part 1):

Module - Anti-Lock Brakes (AWAL) - (Headlamp And Dash) 46 Way (Part 2):

Module - Anti-Lock Brakes (RWAL) - Black (Headlamp And Dash) 14 Way:

Module - Break Provision - Blue (Headlamp And Dash) 4 Way (Part 1):

Module - Break Provision - Blue (Headlamp And Dash) 4 Way (Part 2):

Module - Front Control C1 - (Headlamp And Dash) 24 Way (Part 1):

Module - Front Control C1 - (Headlamp And Dash) 24 Way (Part 2):

Module - Front Control C2 - Black (Headlamp And Dash) 12 Way (Part 1):

Module - Front Control C2 - Black (Headlamp And Dash) 12 Way (Part 2):

Module - Integrated Power C1 - (Headlamp And Dash) 20 Way (Part 1):

Module - Integrated Power C1 - (Headlamp And Dash) 20 Way (Part 2):

Module - Integrated Power C2 - Black (Headlamp And Dash) 20 Way (Part 1):

Module - Integrated Power C2 - Black (Headlamp And Dash) 20 Way (Part 2):

Module - Integrated Power C3 - Black (Headlamp And Dash) 40 Way (Part 1):

Module - Integrated Power C3 - Black (Headlamp And Dash) 40 Way (Part 2):

Module - Integrated Power C3 - Black (Headlamp And Dash) 40 Way (Part 3):

Module - Integrated Power C4 - Gray (Headlamp And Dash) 40 Way (Part 1):

Module - Integrated Power C4 - Gray (Headlamp And Dash) 40 Way (Part 2):

Module - Integrated Power C5 - Brown (Headlamp And Dash) 40 Way (Part 1):

Module - Integrated Power C5 - Brown (Headlamp And Dash) 40 Way (Part 2):

Module - Powertrain Control C3 - Black/Natural (Headlamp And Dash) 38 Way (Part 1):

Module - Powertrain Control C3 - Black/Natural (Headlamp And Dash) 38 Way (Part 2):

Motor - Windshield Wiper - Black (Headlamp And Dash) 6 Way (Part 1):

Motor - Windshield Wiper - Black (Headlamp And Dash) 6 Way (Part 2):

Pump - Washer - Windshield - (Headlamp And Dash) 2 Way (Part 1):

Pump - Washer - Windshield - (Headlamp And Dash) 2 Way (Part 2):

Sensor - Ambient Air Temperature - Black (Headlamp And Dash) 2 Way:

Sensor - Brake Fluid Level - Black (Headlamp And Dash) 2 Way:

Sensor - Front Impact - Left - DK. Gray (Headlamp And Dash) 2 Way (Part 1):

Sensor - Front Impact - Left - DK. Gray (Headlamp And Dash) 2 Way (Part 2):

Sensor - Front Impact - Right - DK. Gray (Headlamp And Dash) 2 Way:

Sensor - Wheel Speed - ABS Left Front (AWAL) - Black (Headlamp And Dash) 2 Way:

Sensor - Wheel Speed - ABS - Right Front (AWAL) - Black (Headlamp And Dash) 2 Way:

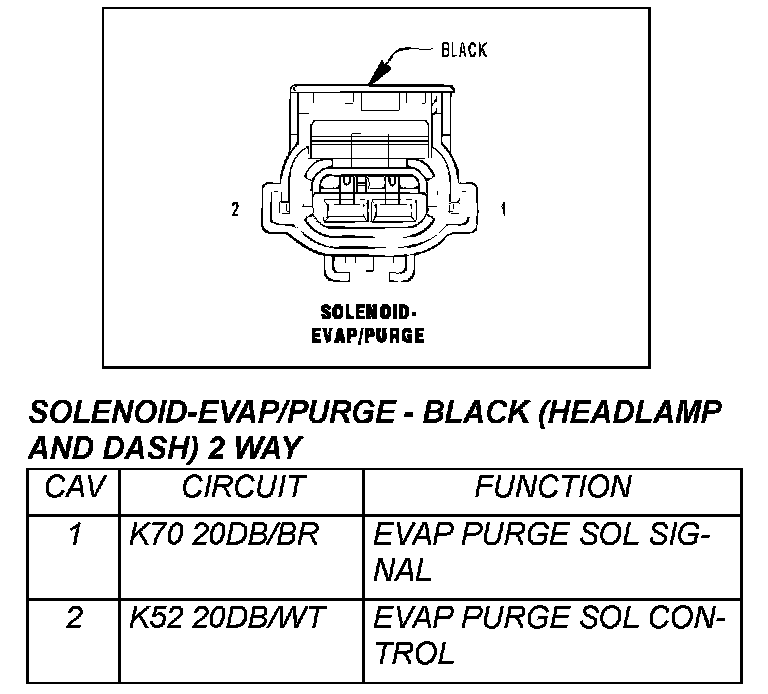

Solenoid - EVAP/Purge - Black (Headlamp And Dash) 2 Way:

Switch - Clutch Interlock - Green (Headlamp And Dash) 2 Way:

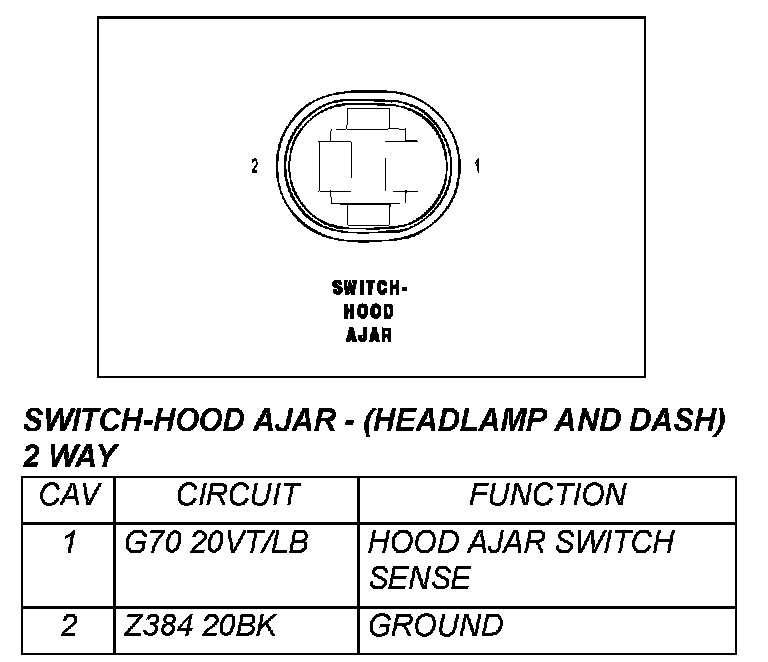

Switch - Hood Ajar - (Headlamp And Dash) 2 Way:

Transducer - A/C Pressure - Gray (Headlamp And Dash) 4 Way:
