System Diagram

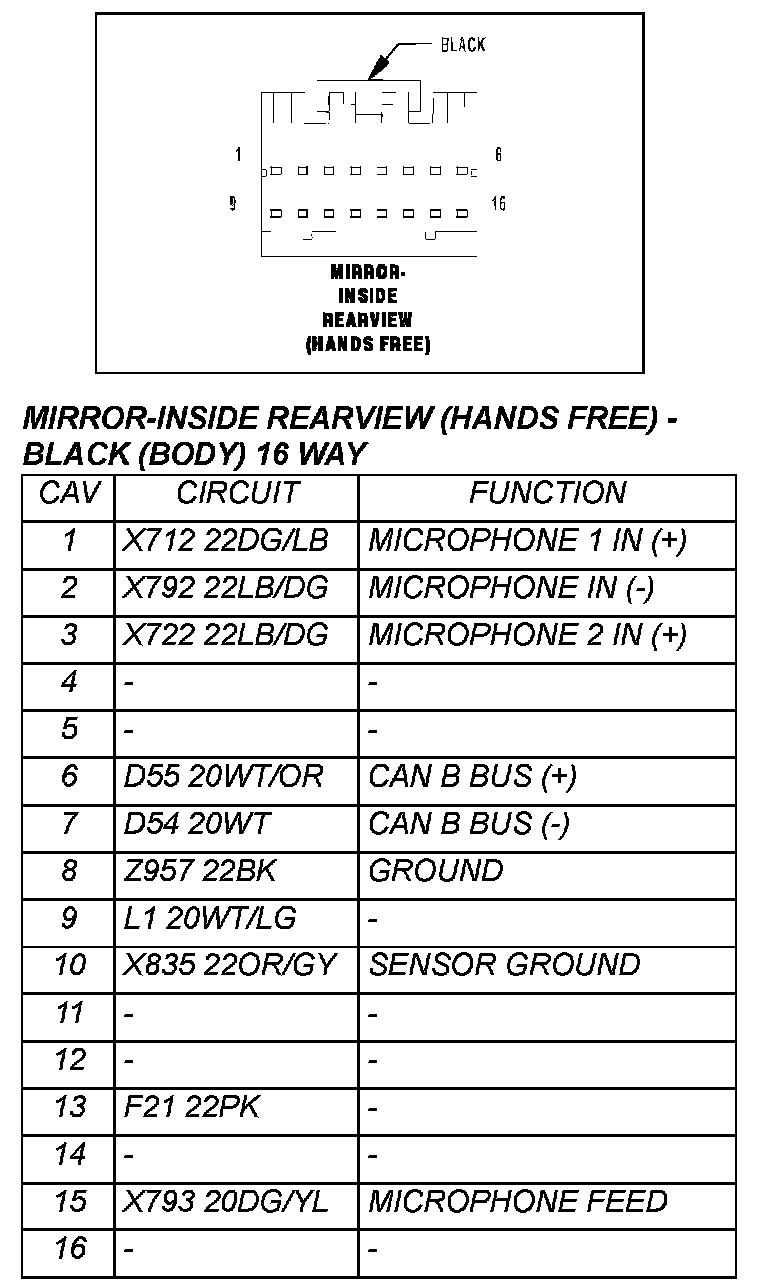

Mirror - Inside Rearview (Hands Free) - Black (Body) 16 Way:

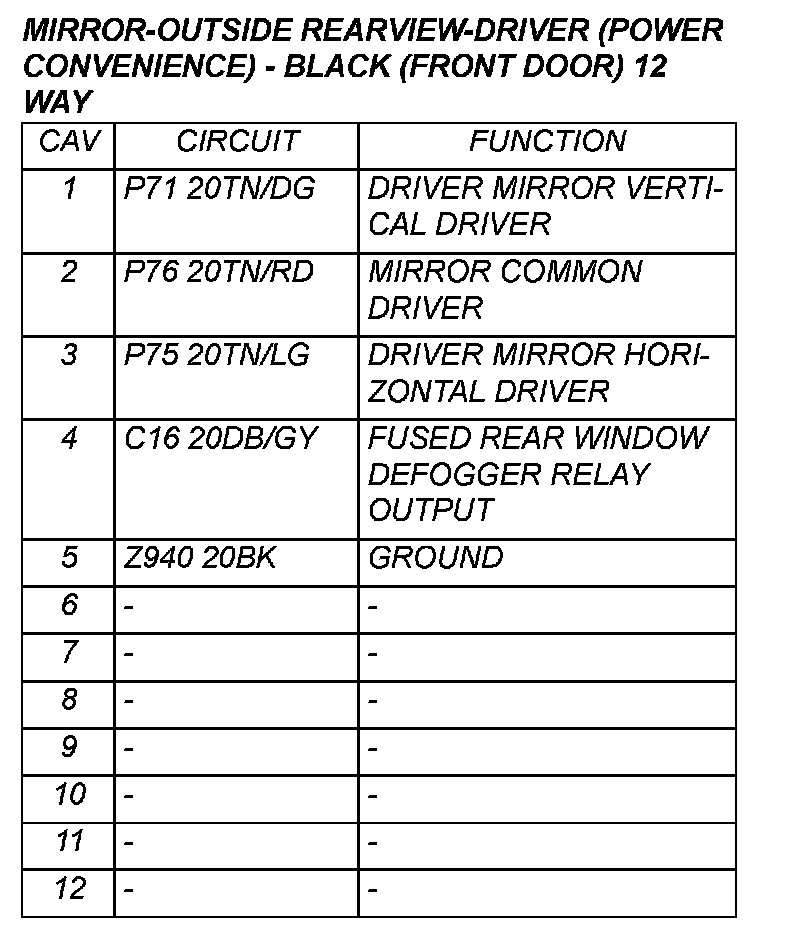

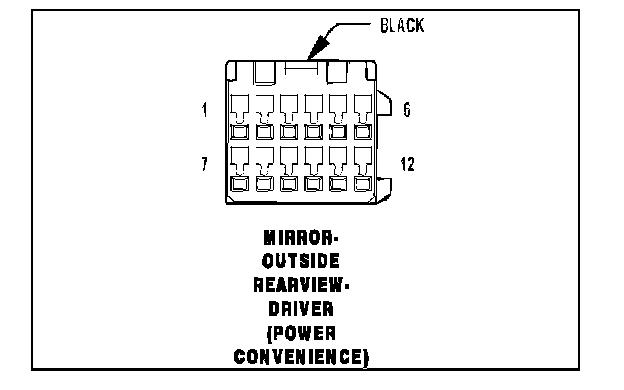

Mirror - Outside Rearview - Driver (Power Convenience) - Black (Front Door) 12 Way (Part 1):

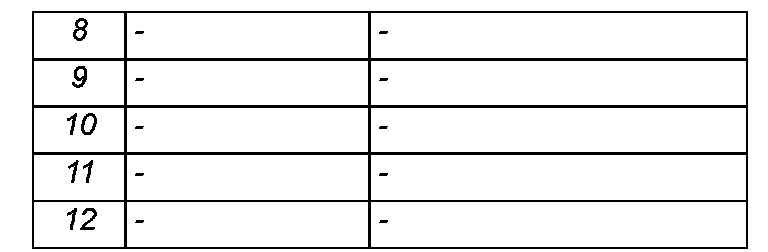

Mirror - Outside Rearview - Driver (Power Convenience) - Black (Front Door) 12 Way (Part 2):

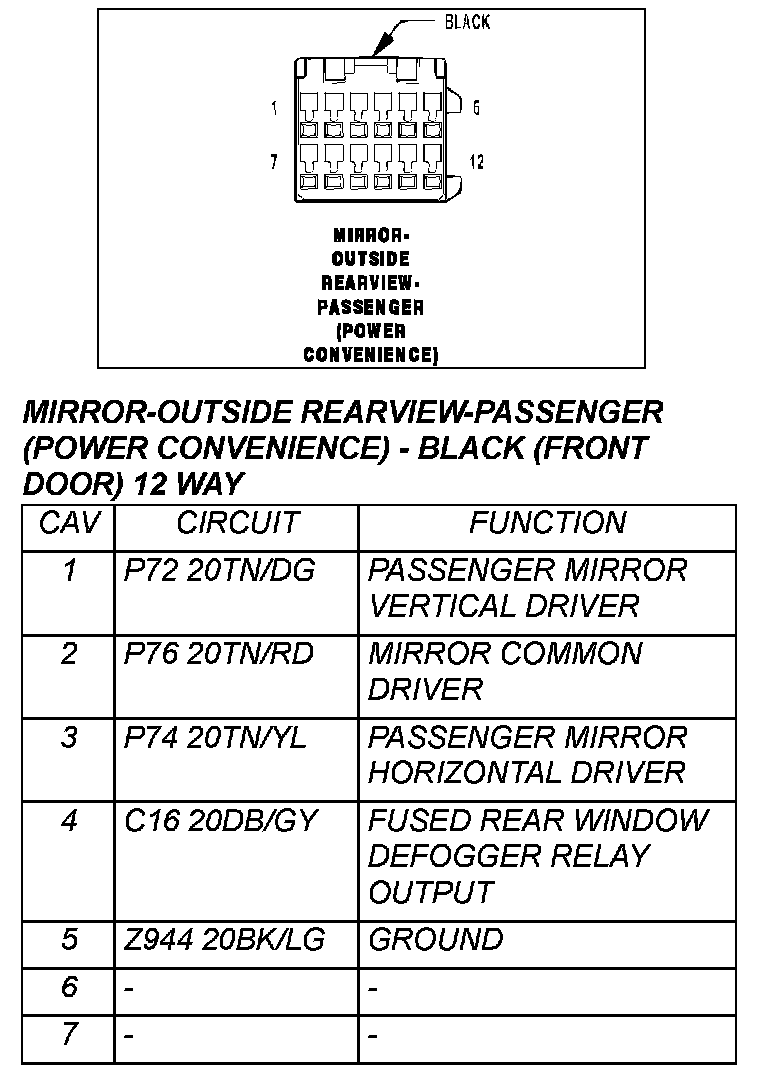

Mirror - Outside Rearview - Passenger (Power Convenience) - Black (Front Door) 12 Way (Part 1):

Mirror - Outside Rearview - Passenger (Power Convenience) - Black (Front Door) 12 Way (Part 2):
