Power Seat Motor
Power Seat Motor

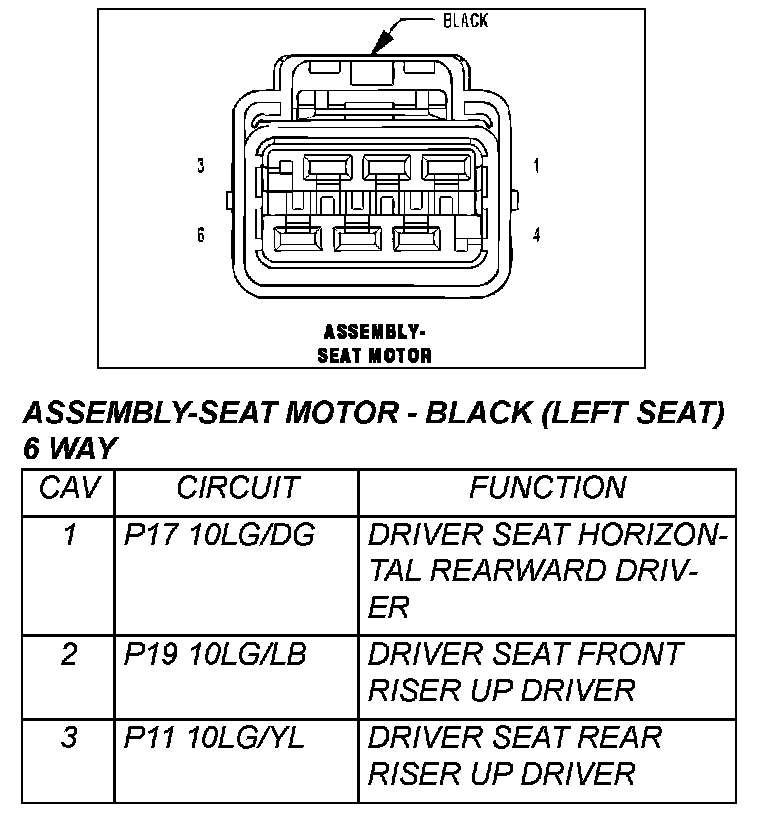

Assembly-Seat Motor - Black (Left Seat) 6 Way (Part 1):

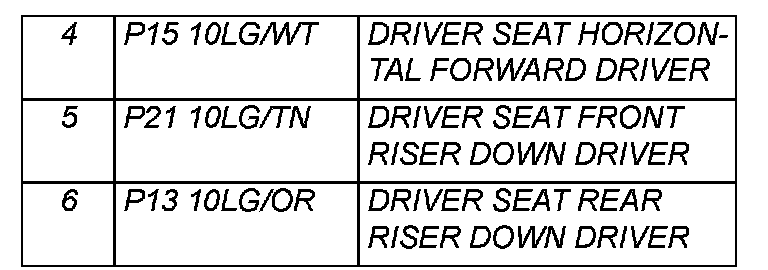

Assembly-Seat Motor - Black (Left Seat) 6 Way (Part 2):
