Seat Temperature Switch
Seat Temperature Switch

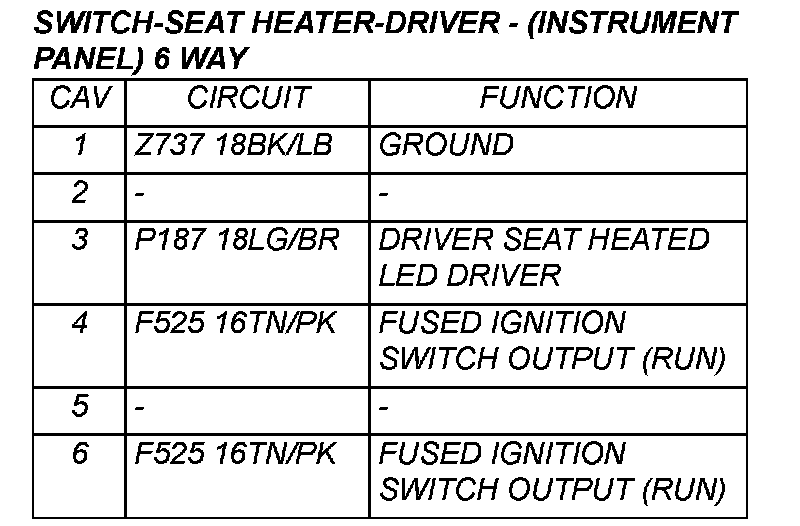

Switch - Seat Heater - Driver - (Instrument Panel) 6 Way (Part 1):

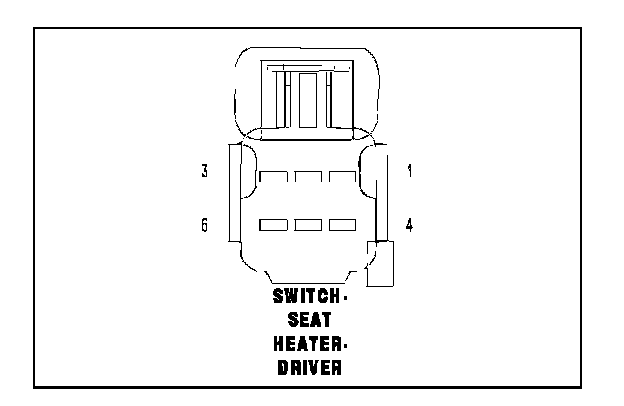

Switch - Seat Heater - Driver - (Instrument Panel) 6 Way (Part 2):

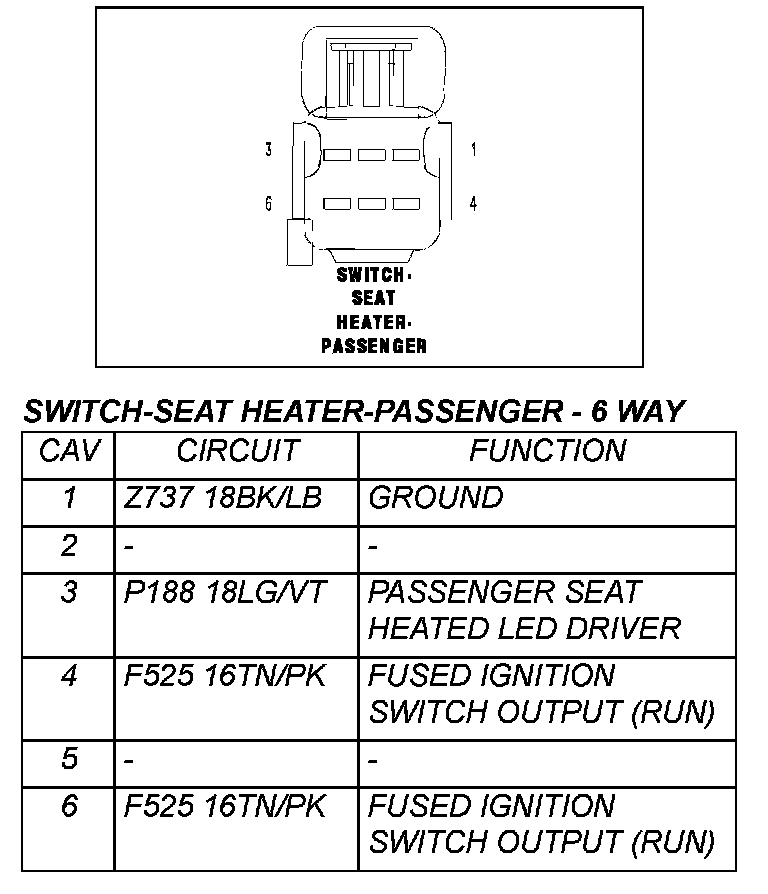

Switch - Seat Heater - Passenger - 6 Way:
