Home
>>
Mitsubishi
>>
2008
>>
Raider 2WD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Connector
Trailer Connector

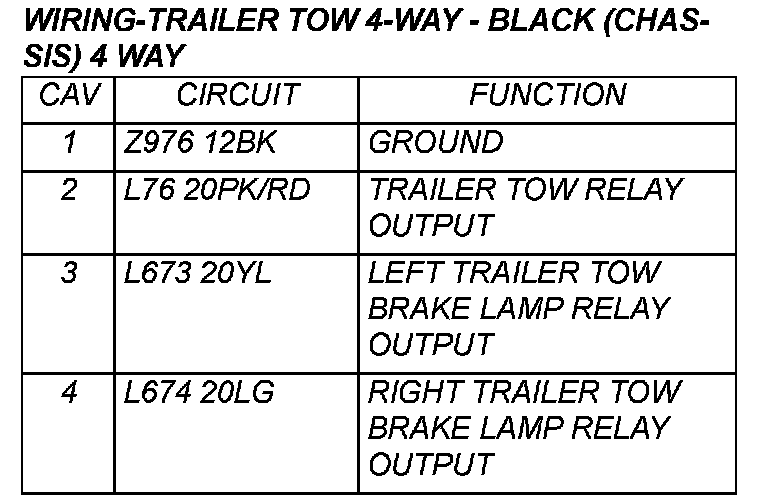

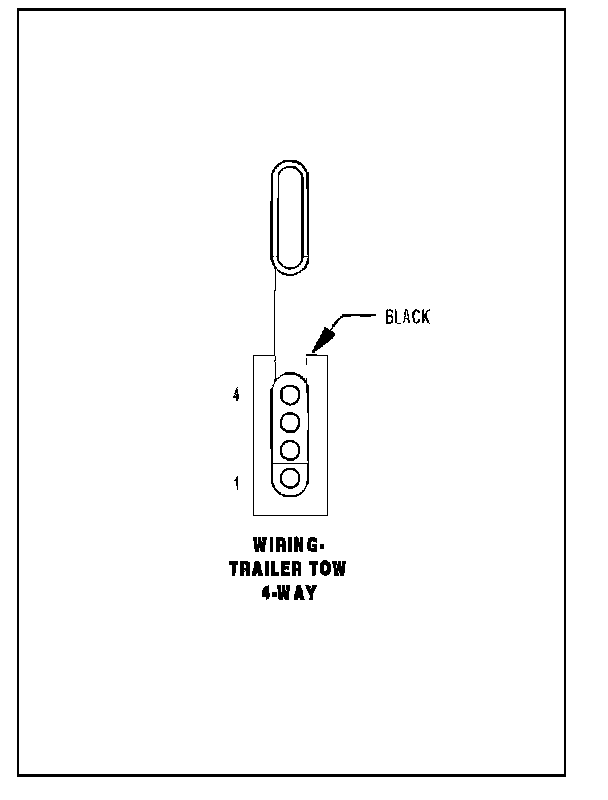

Wiring - Trailer Tow 4-way - Black (Chassis) 4 Way (Part 1):
Wiring - Trailer Tow 4-way - Black (Chassis) 4 Way (Part 2):
Wiring - Trailer Tow 7-way - Black (Chassis) 10 Way:
