System Diagram

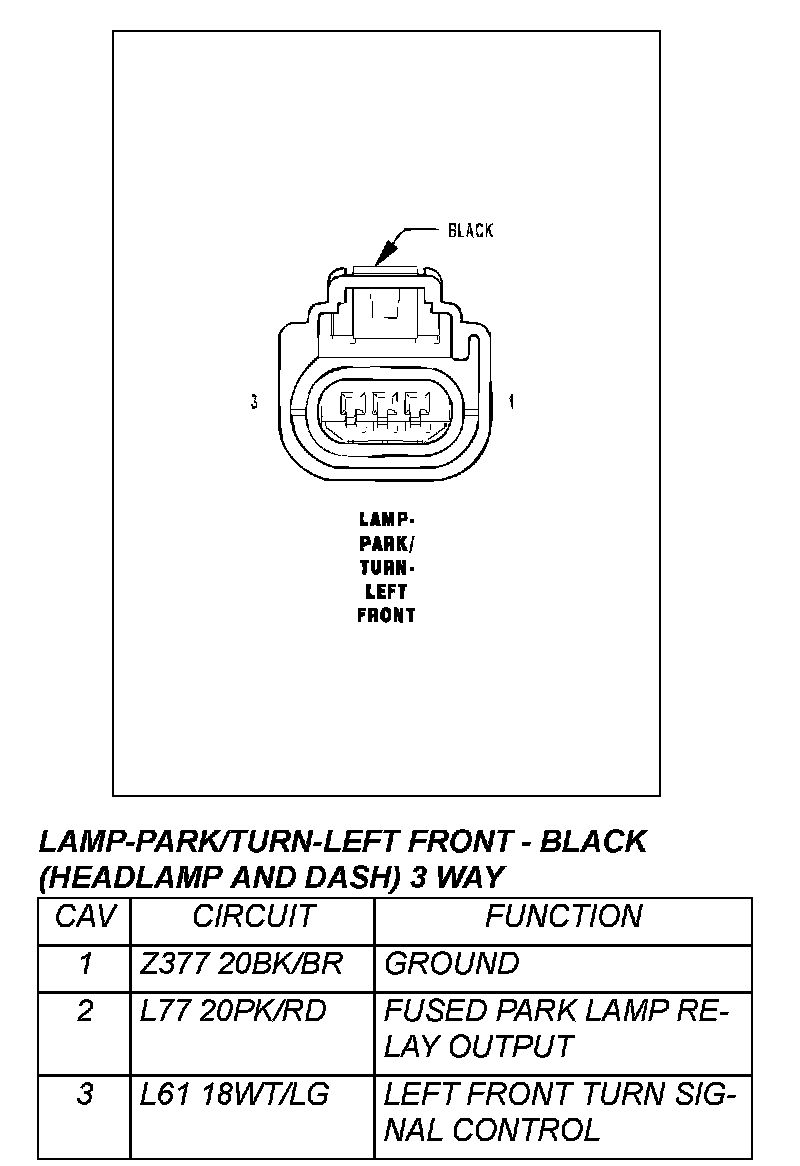

Lamp Park/Turn - Left Front - Black (Headlamp And Dash) 3 Way:

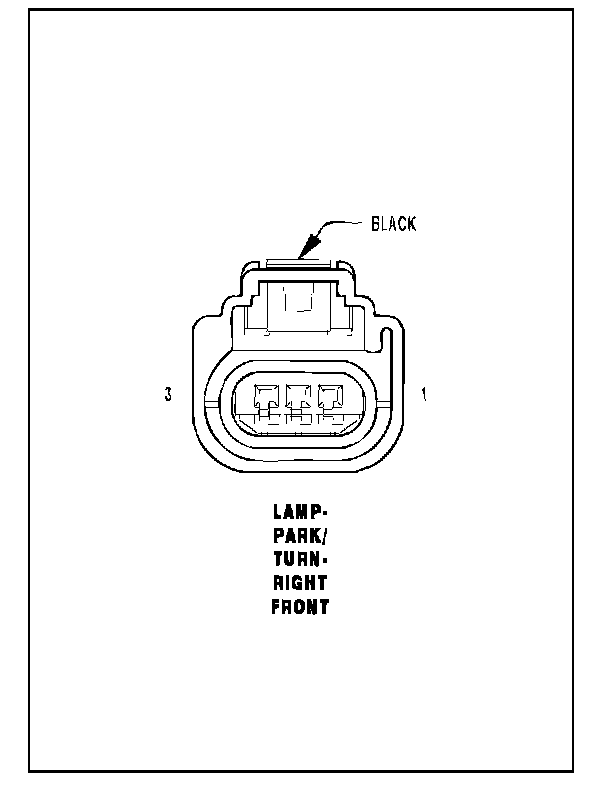

Lamp Park/Turn - Right Front - Black (Headlamp And Dash) 3 Way (Part 1):

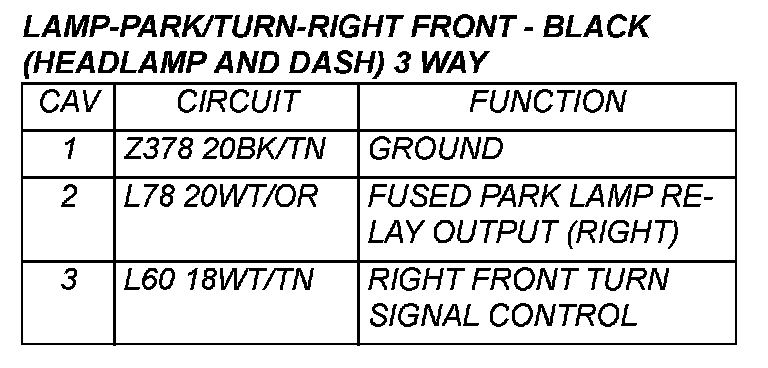

Lamp Park/Turn - Right Front - Black (Headlamp And Dash) 3 Way (Part 2):

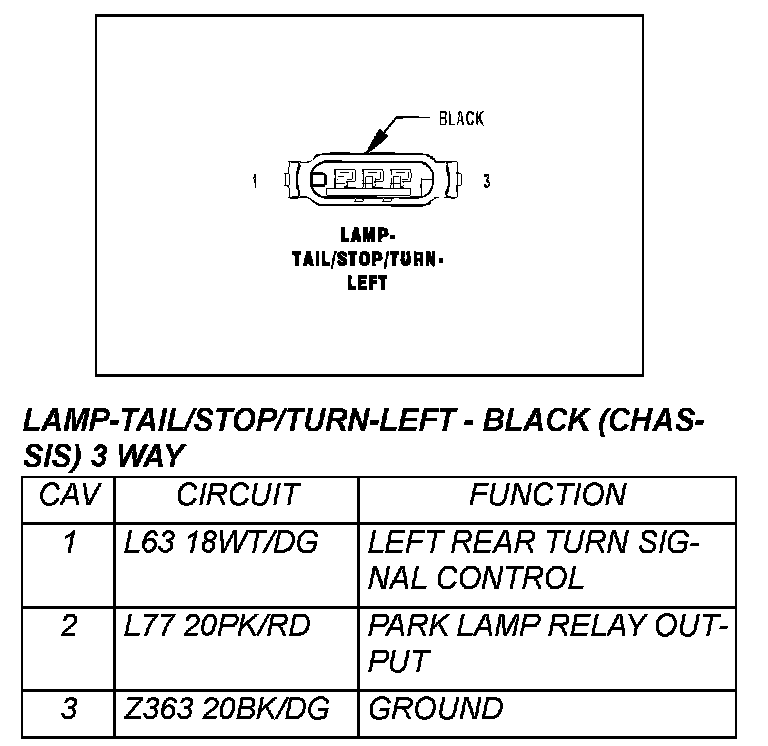

Lamp - Tail/Stop/Turn - Left - Black (Chassis) 3 Way:

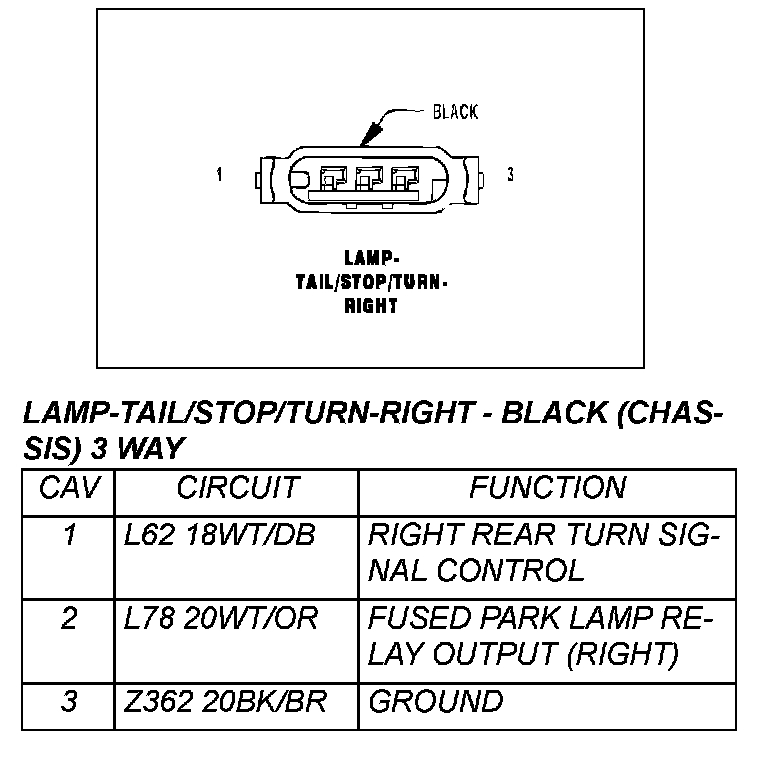

Lamp - Tail/Stop/Turn - Right - Black (Chassis) 3 Way:
