Illumination Lamp
ILLUMINATION LAMPBULB-A/C-HEAT CONTROL REMOVAL
WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
NOTE: There may be minor variations in the locations of the bulb/bulb holder units on the back of the A/C-heater control as a result of various optional A/C-heater control units. However, the bulb types and service procedures are identical for all of these bulbs.
1. Disconnect and isolate the battery negative cable.

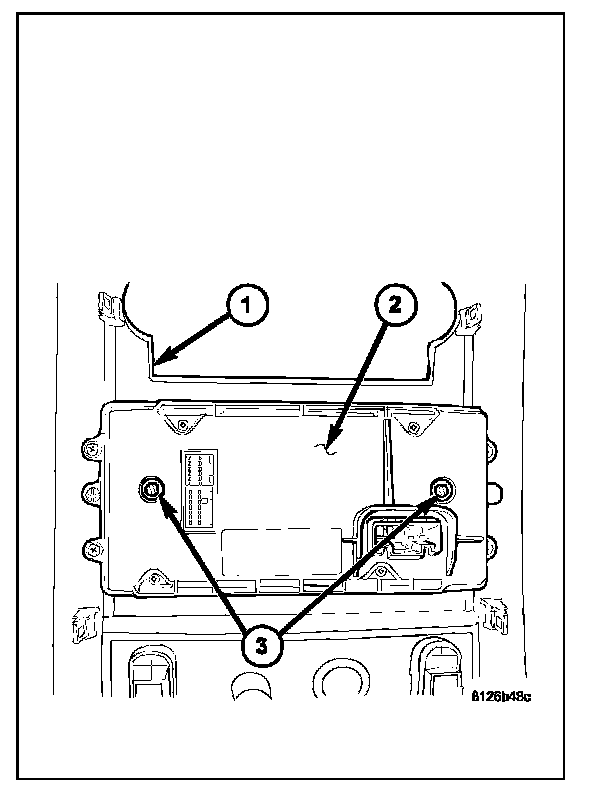

2. Remove the center bezel (1) from the instrument panel.
3. Use a small thin-bladed screwdriver to rotate the bulb holder (3) counterclockwise about 30 degrees to unlock it from the keyed opening in the front A/C-heater control (2) circuit board.
4. Pull the bulb holder and bulb straight out of the circuit board.
ILLUMINATION LAMP-BULB-CMTC CONTROL REMOVAL
WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
NOTE: There are provisions for up to four bulb/bulb holder units on the Compass Mini-Trip Computer (CMTC) circuit board. The two outboard bulbs illuminate the CMTC push buttons, while the two center bulbs illuminate the optional universal transmitter push buttons. Therefore, the center bulb locations are only populated on vehicles equipped with the optional universal transmitter.
1. Disconnect and isolate the battery negative cable.

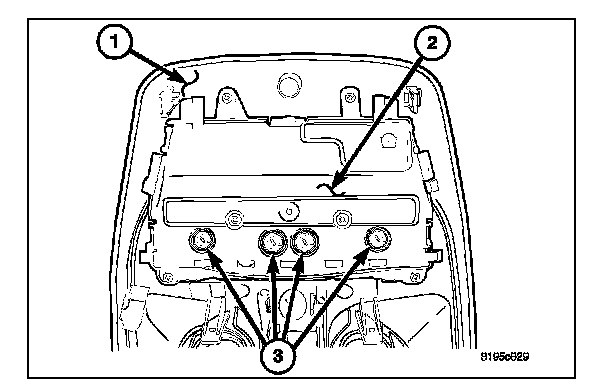

2. Remove the overhead console (1) from the headliner.
3. Use a small thin-bladed screwdriver to rotate the bulb holder (3) counterclockwise about 30 degrees to unlock it from the keyed opening in the Compass Mini-Trip Computer (CMTC) unit (2) circuit board.
4. Pull the bulb holder and bulb straight out of the circuit board.
BULB - A/C-HEAT CONTROL INSTALLATION
WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.
NOTE: There may be minor variations in the locations of the bulb/bulb holder units on the back of the A/C-heater control as a result of various optional A/ C-heater control units. However, the bulb types and service procedures are identical for all of these bulbs.
1. Align the bulb holder and bulb (3) with the keyed opening in the circuit board of the front A/C-heater control (2).
2. Insert the bulb holder and bulb straight into the circuit board until the bulb holder is firmly seated.
3. Using a small thin-bladed screwdriver, rotate the bulb holder clockwise about 30 degrees on the circuit board to lock it into place.
4. Reinstall the center bezel (1) onto the instrument panel.
5. Reconnect the battery negative cable.
ILLUMINATION LAMP - BULB - CMTC CONTROL INSTALLATION
WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.
NOTE: There are provisions for up to four bulb/bulb holder units on the Compass Mini-Trip Computer (CMTC) circuit board. The two outboard bulbs illuminate the CMTC push buttons, while the two center bulbs illuminate the optional universal transmitter push buttons. Therefore, the center bulb locations are only populated on vehicles equipped with the optional universal transmitter.

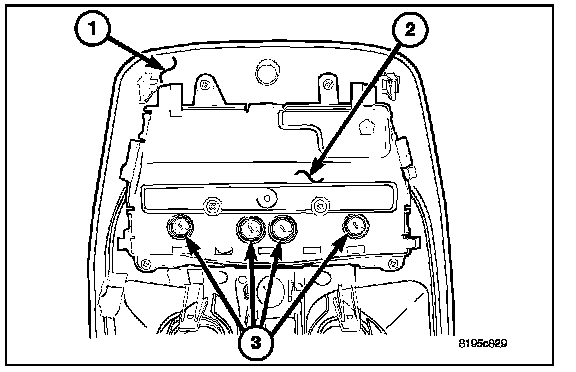

1. Align the bulb holder and bulb (3) with the keyed opening in the circuit board of the Compass Mini-Trip Computer (CMTC) (2).
2. Insert the bulb holder and bulb straight into the circuit board until the bulb holder is firmly seated.
3. Using a small thin-bladed screwdriver, rotate the bulb holder clockwise about 30 degrees on the circuit board to lock it into place.
4. Reinstall the overhead console (1) onto the headliner.
5. Reconnect the battery negative cable.
