Connector Location Index

PLEASE NOTE:
If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

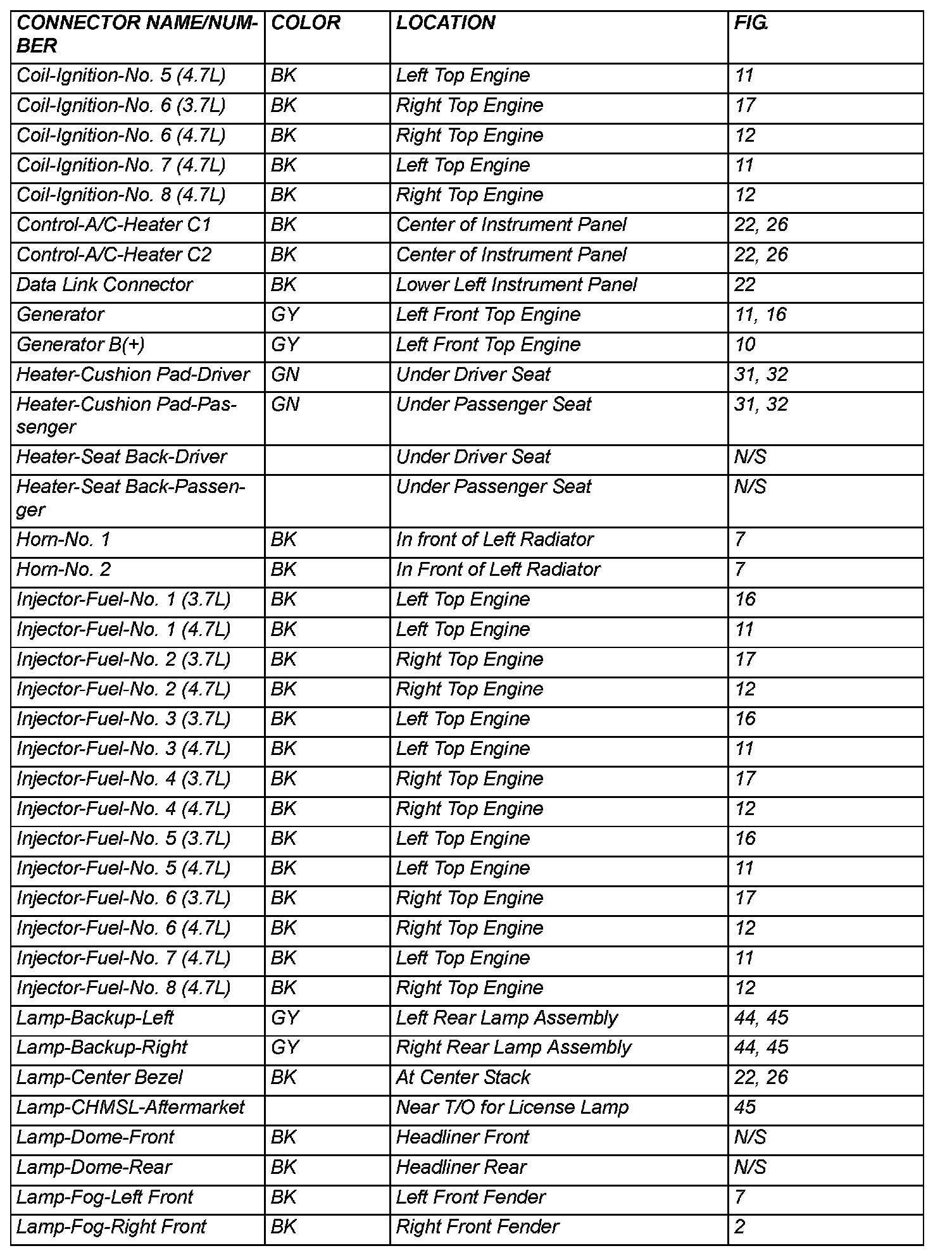

Ac - Ba:

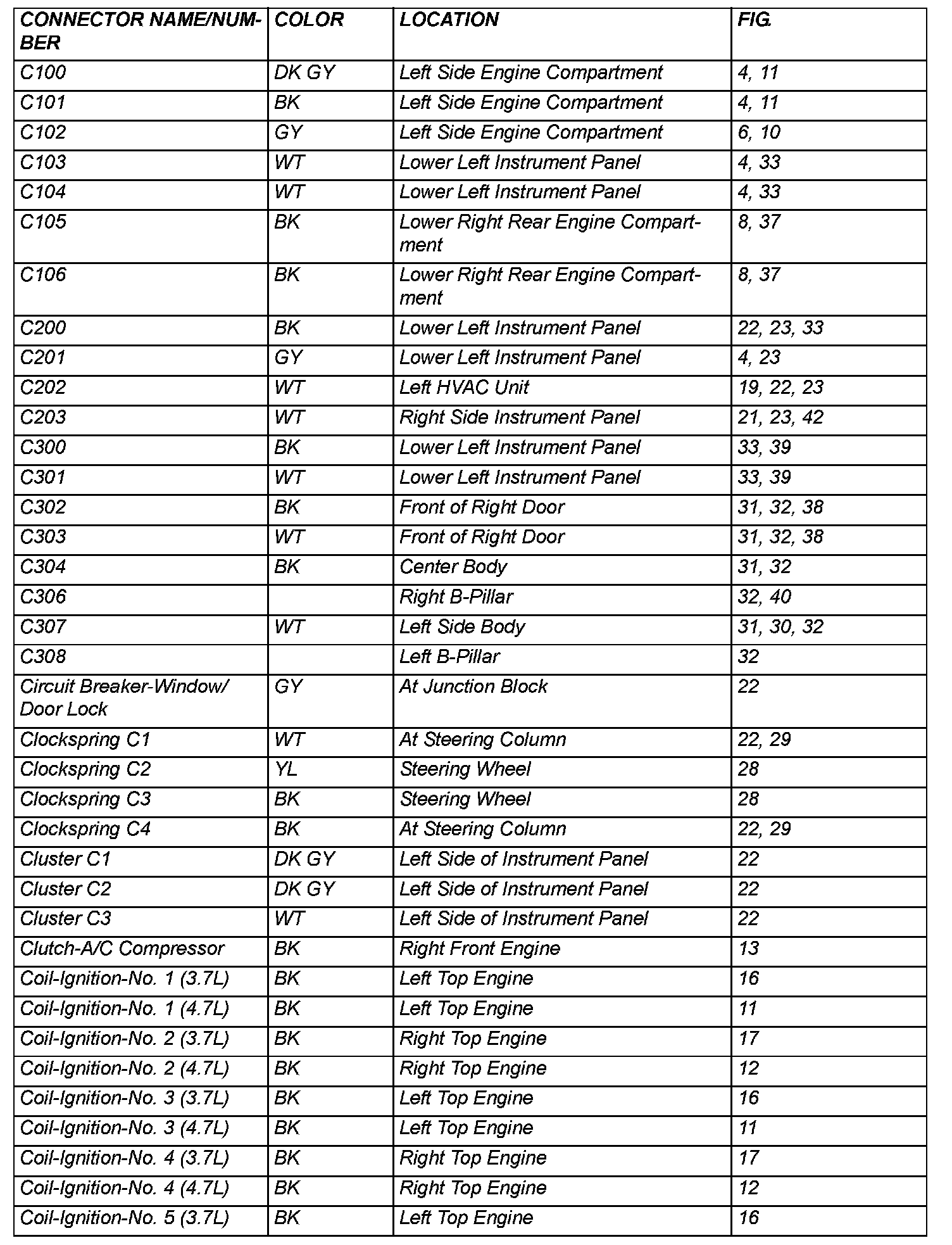

C100 - Co:

Co - La:

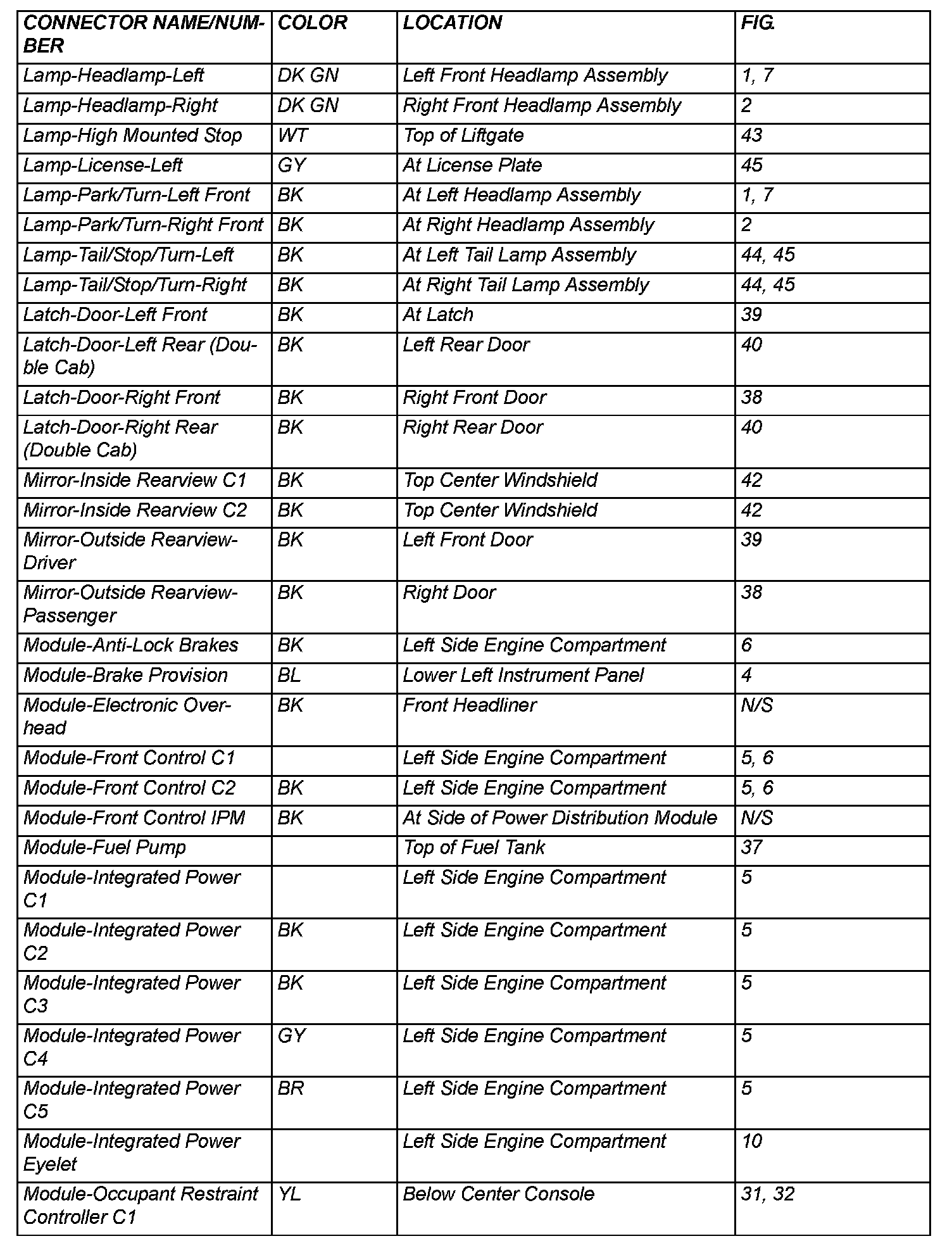

La - Mo:

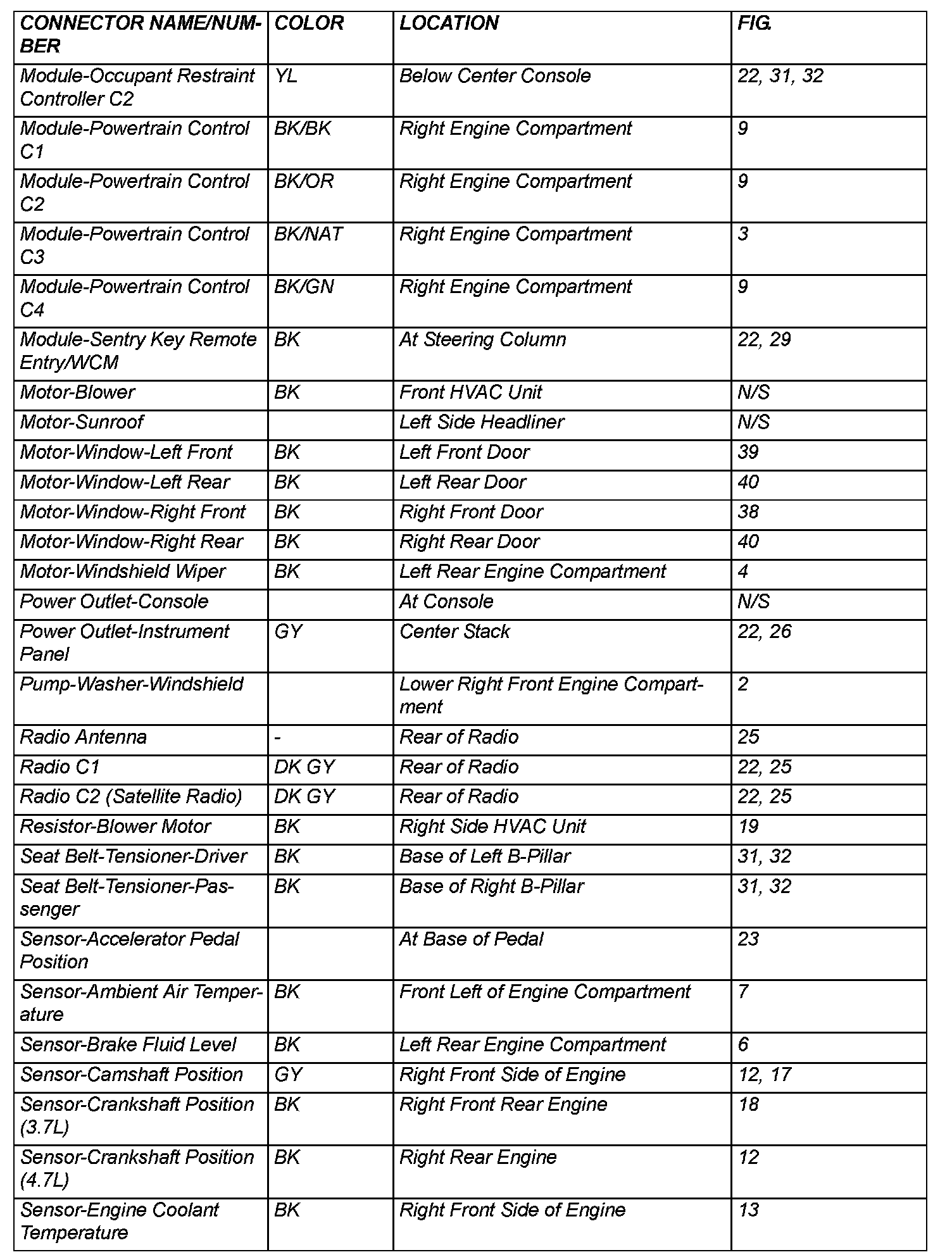

Mo - Se:

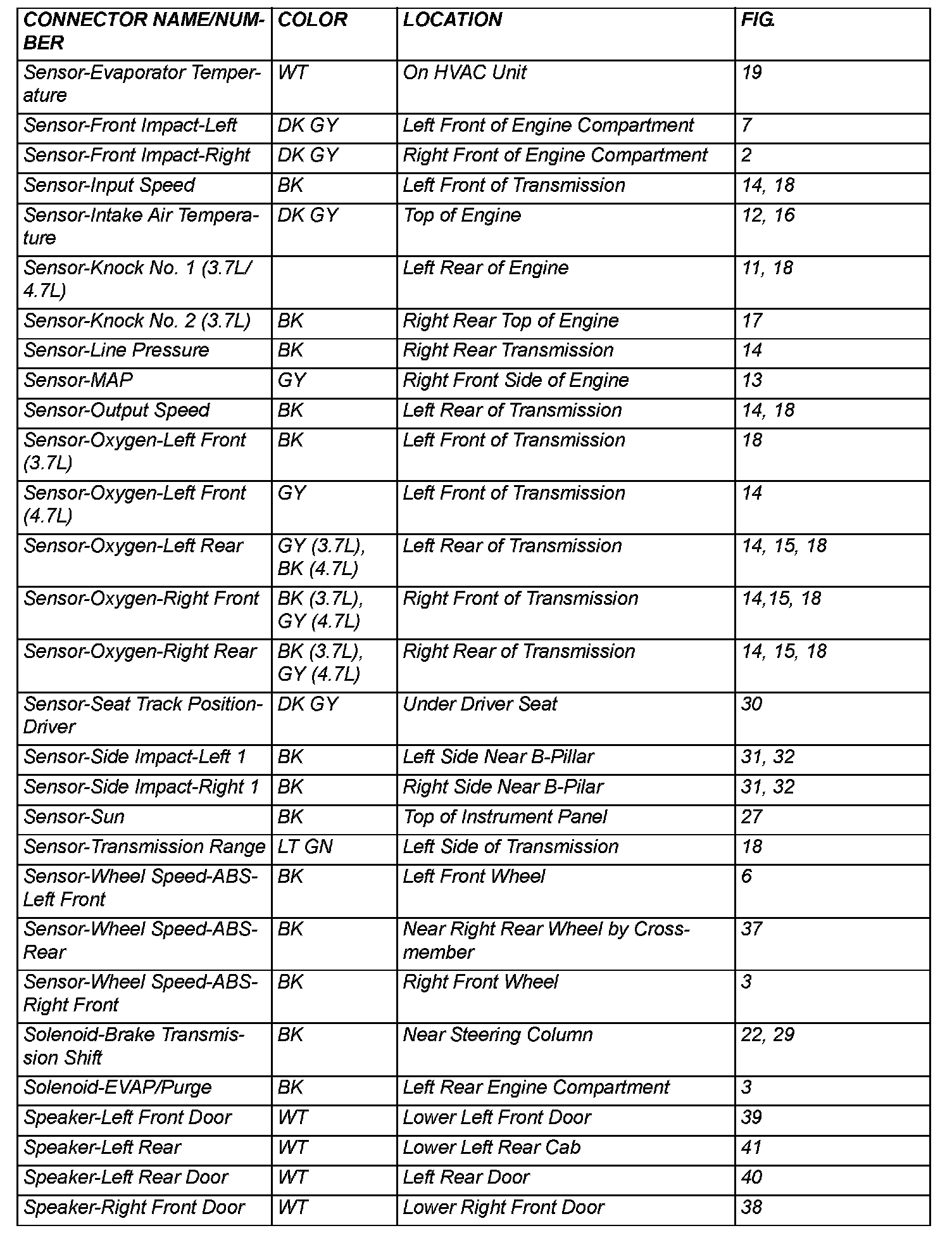

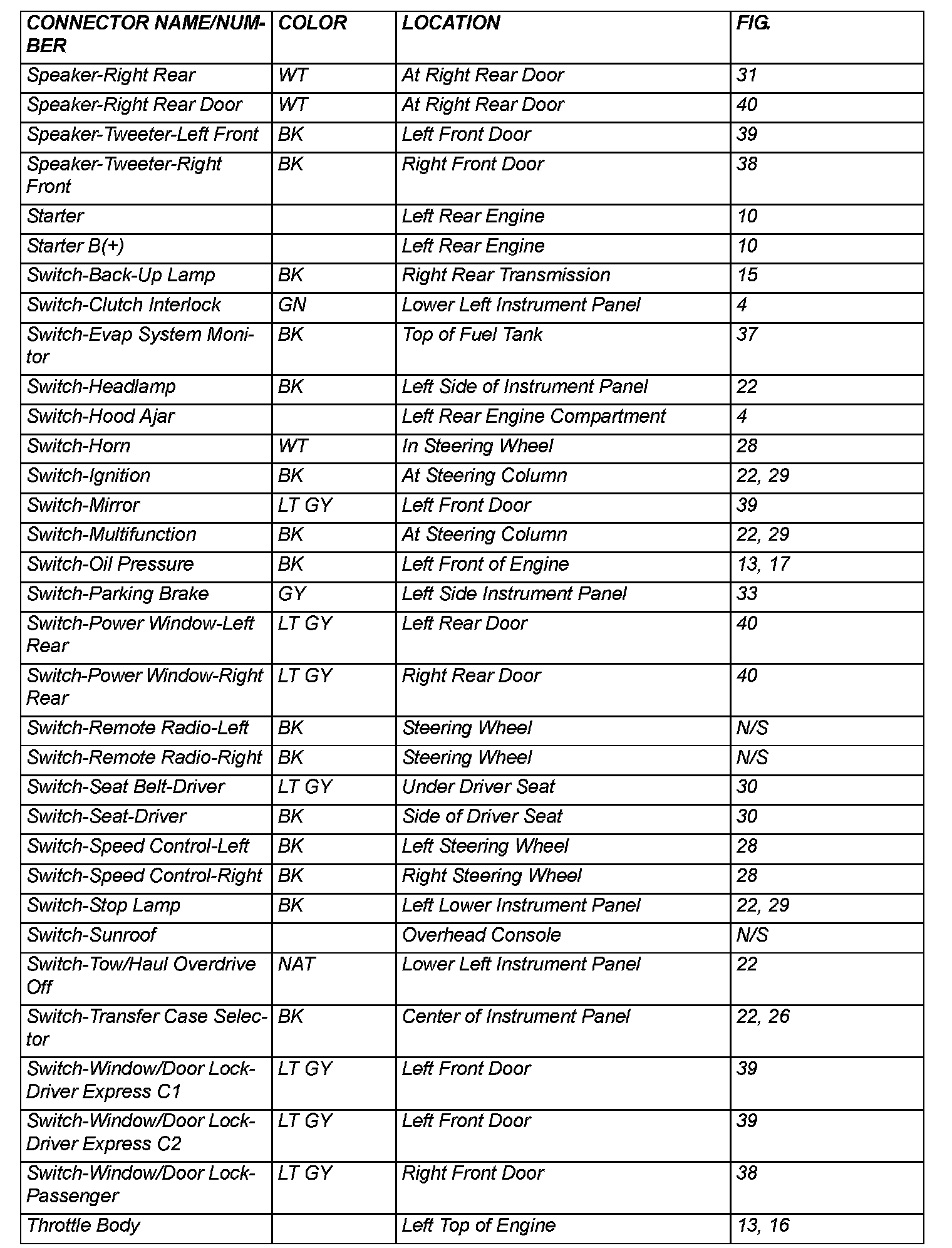

Se - Sp:

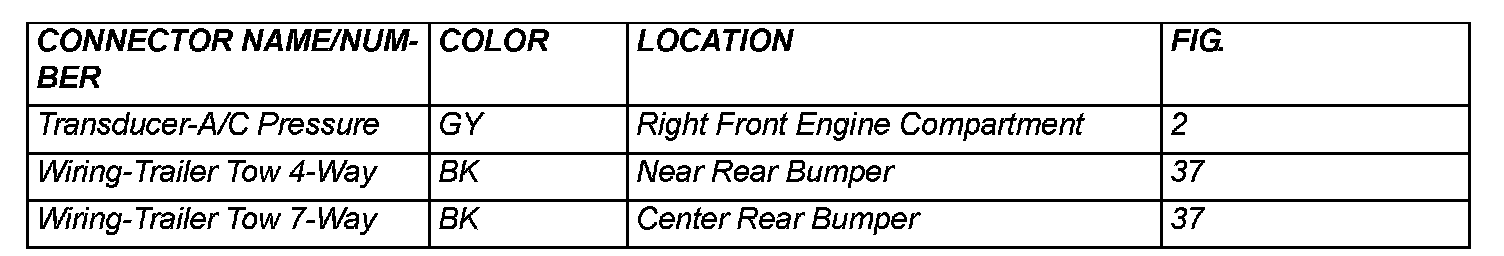

Sp - Th:

Tr - Wi:
