Home >> Mitsubishi >> 2008 >> Raider 2WD V6-3.7L >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 45

Figure 45

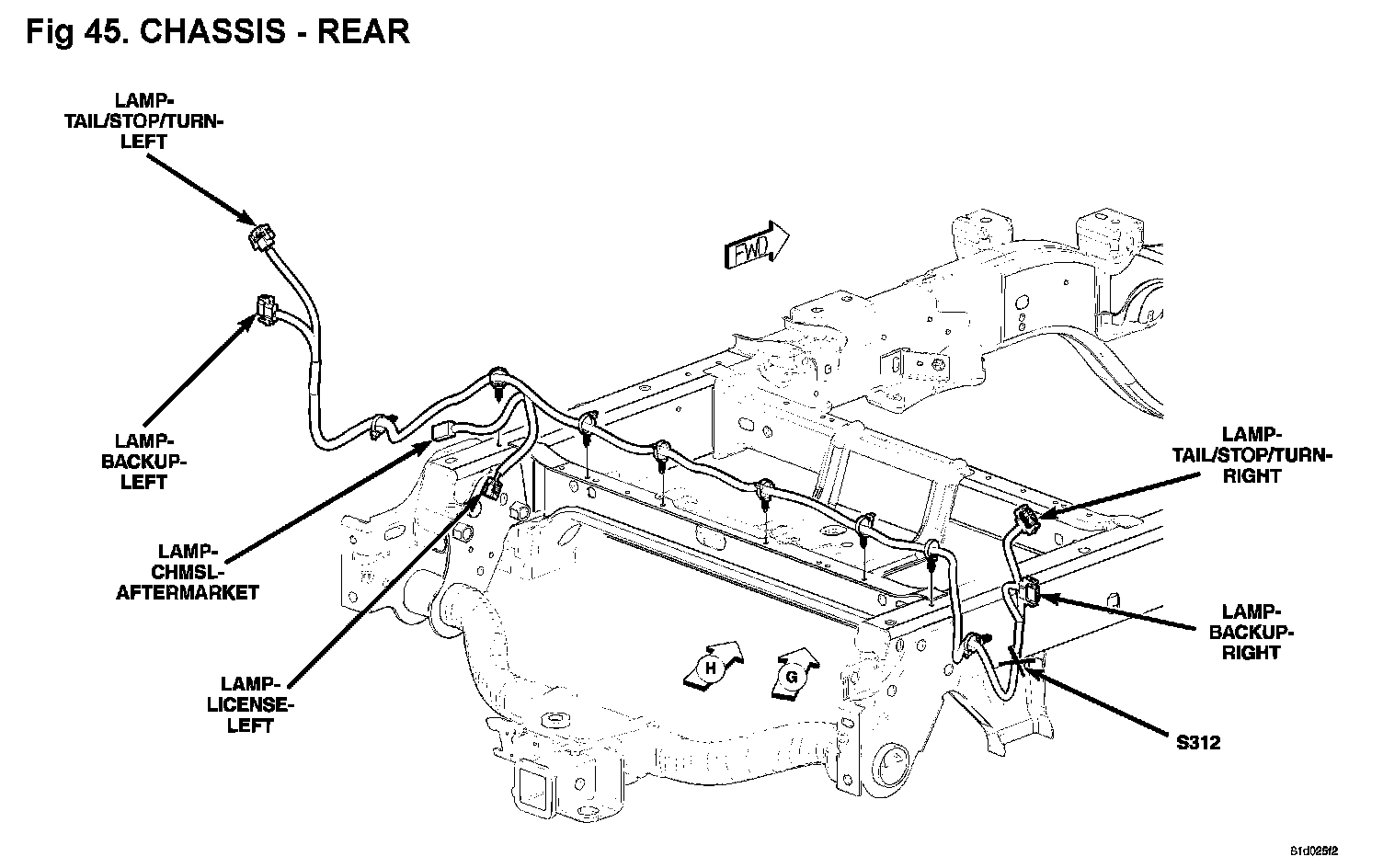

Fig. 45 Chassis Rear:
