Relay Box: Application and ID

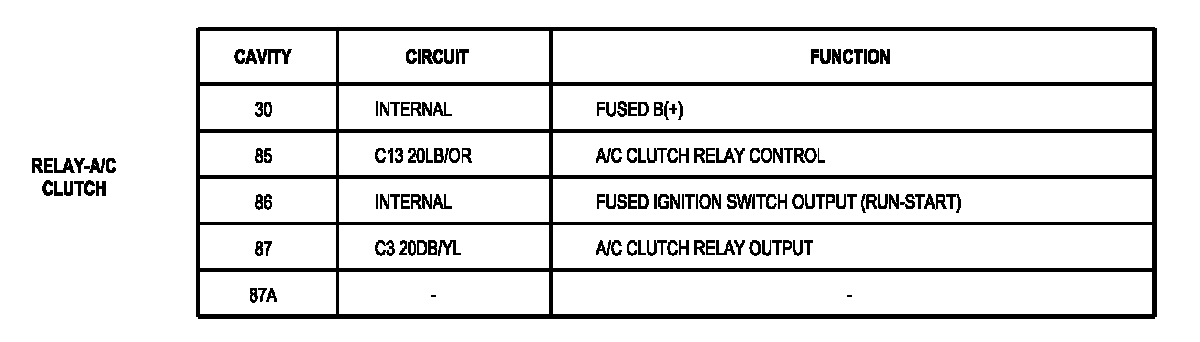

Relay - A/C Clutch:

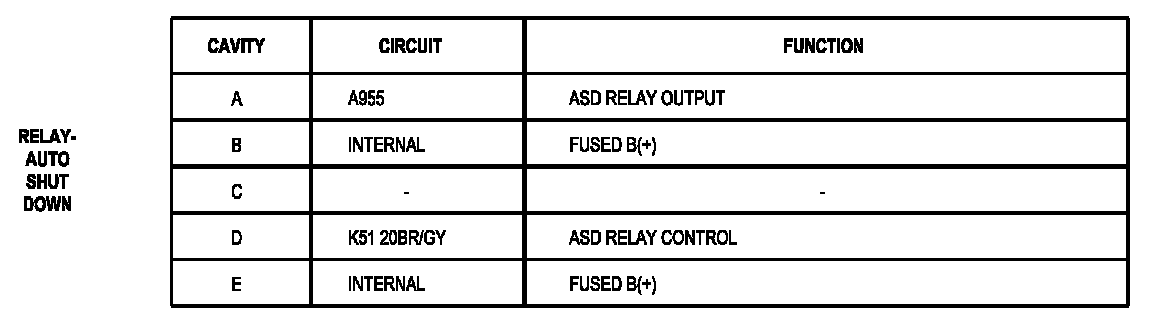

Relay - Auto Shut Down:

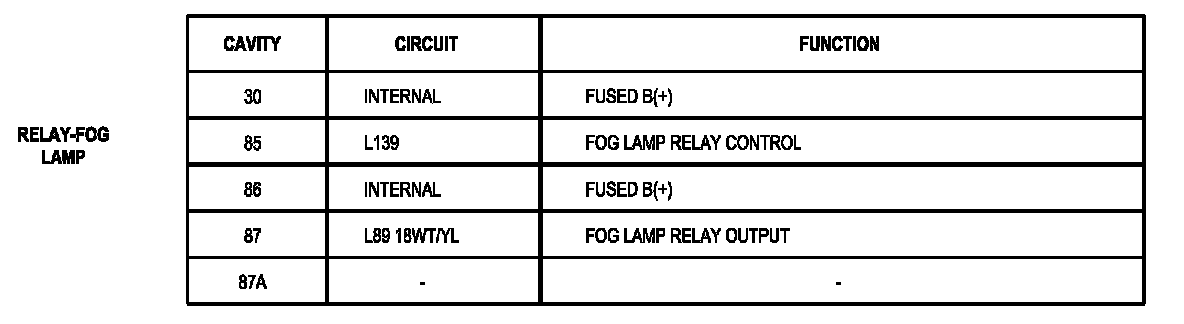

Relay - Fog Lamp:

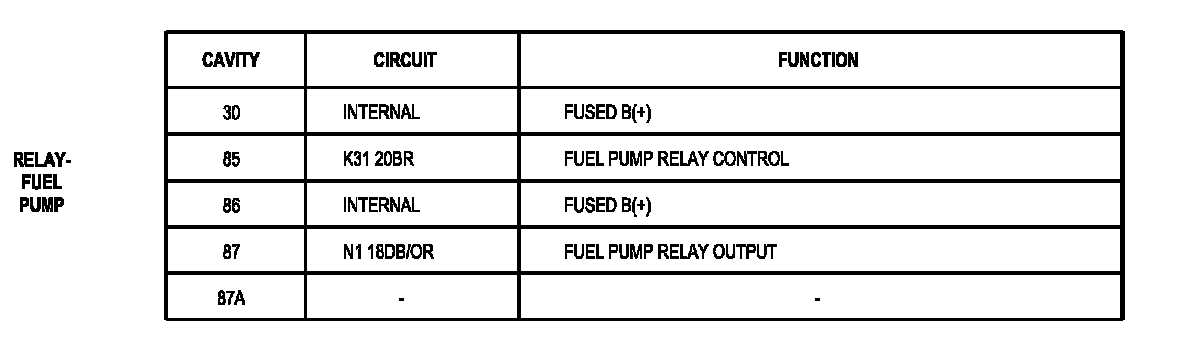

Relay - Fuel Lamp:

Relay - Horn:

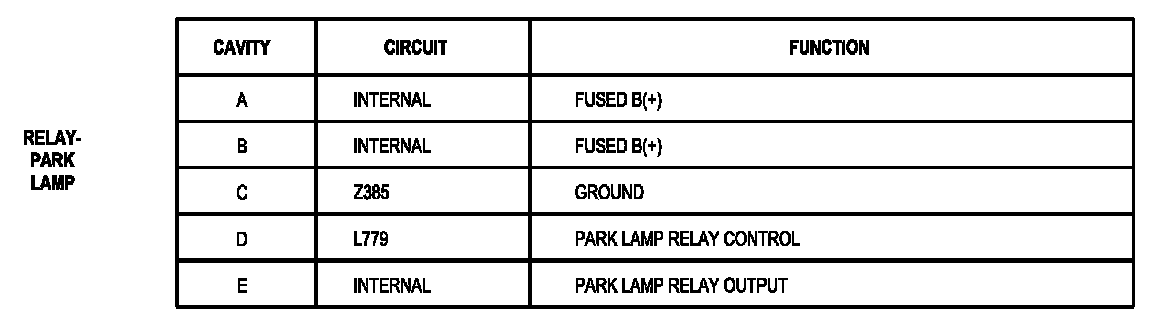

Relay - Park Lamp:

Relay - Run/Start:

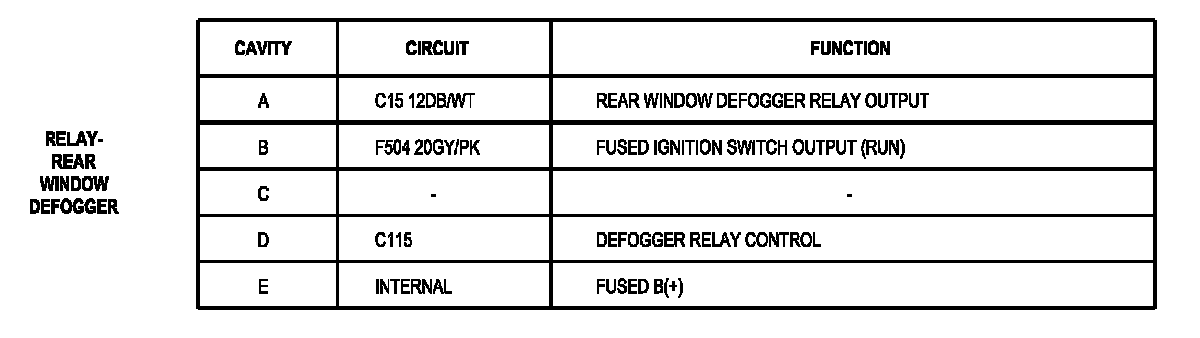

Relay - Rear Window Defogger:

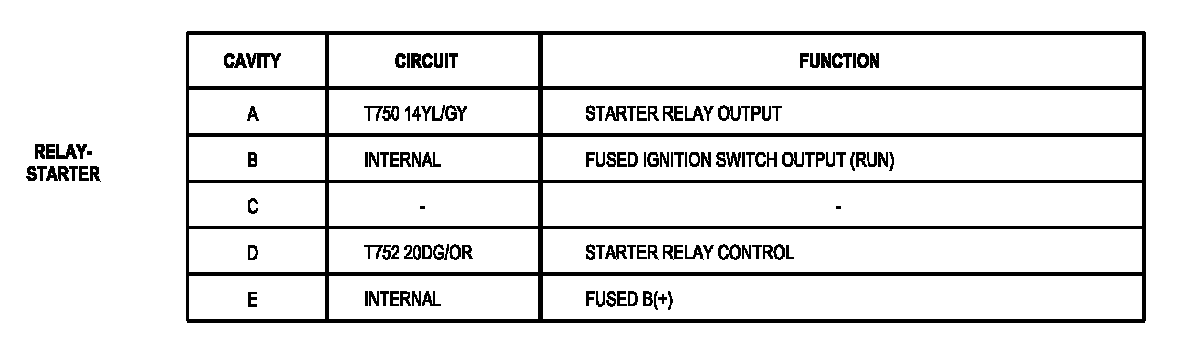

Relay - Starter:

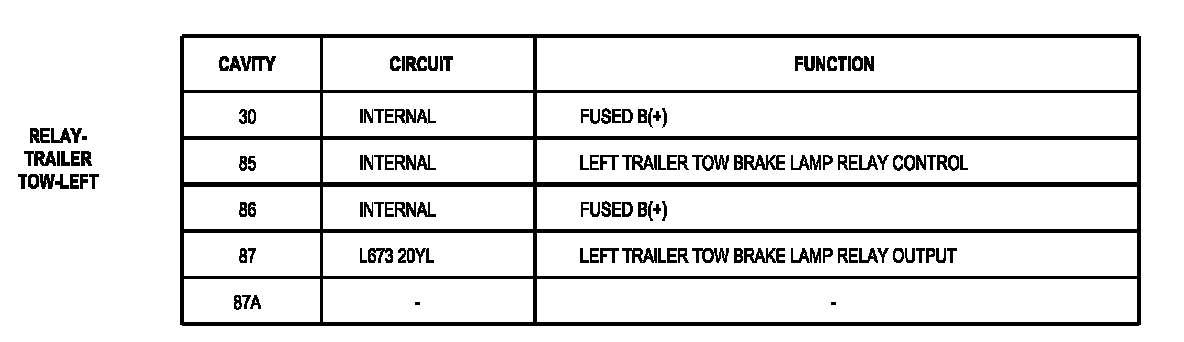

Relay - Trailer Tow-Left:

Relay - Trailer Tow-Right:

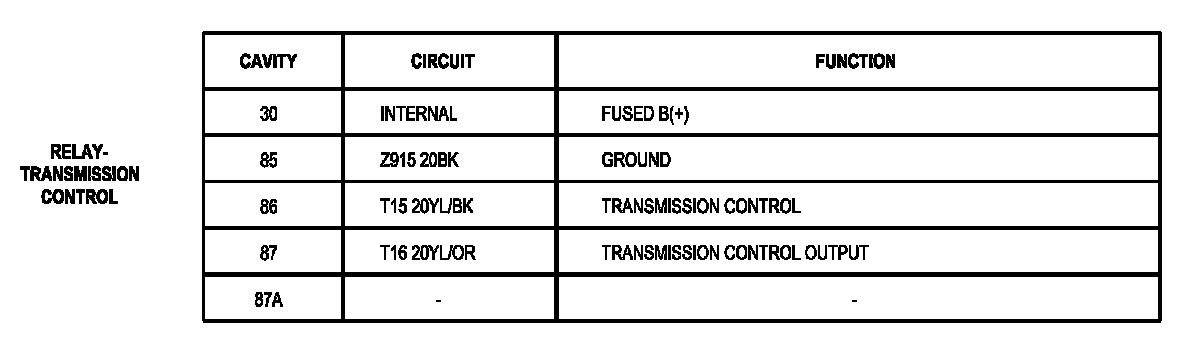

Relay - Transmission Control:

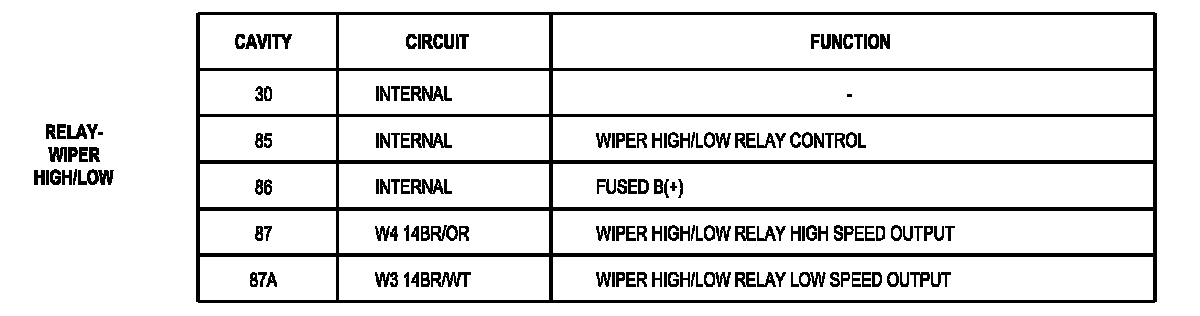

Relay - Wiper High/Low:

Relay - Wiper On/Off:
