EGR Control Solenoid: Service and Repair

VALVE - EGR

REMOVAL - 3.7L




The electronic EGR valve and solenoid assembly (1) is attached to the rear of the left cylinder head.

1. Use a diagnostic scan tool to record any DTC's (Diagnostic Trouble Codes).
2. Disconnect and isolate the negative battery cable.

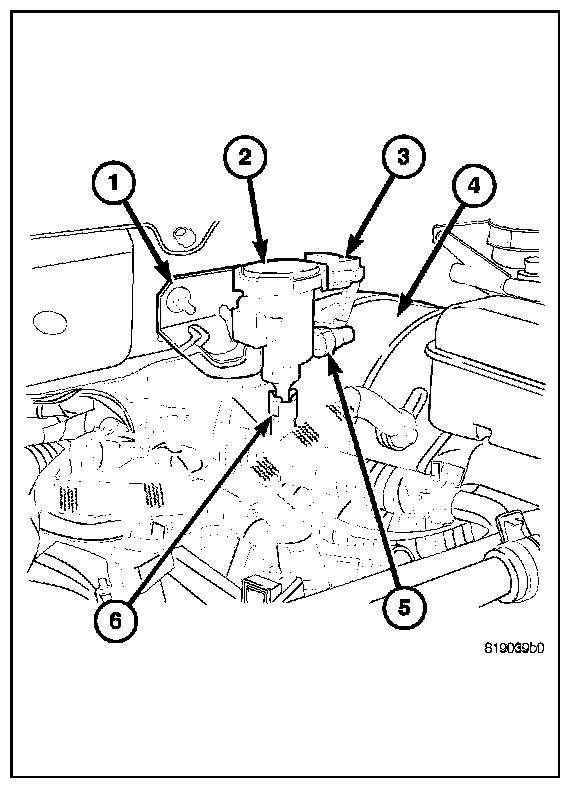

3. Remove EVAP purge solenoid (2). Solenoid lifts from tongue-type bracket (1).

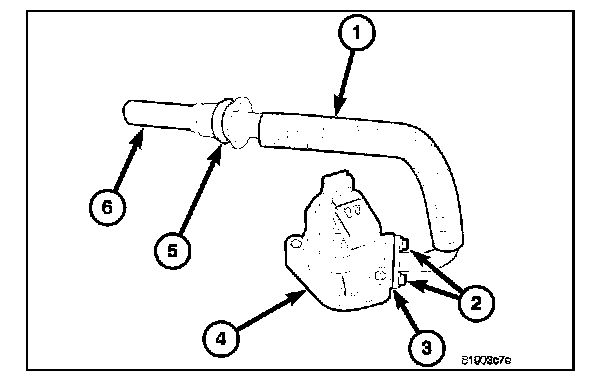

An exhaust gas routing tube (1) connects the EGR valve (4) to the intake manifold.

4. Remove two tube mounting bolts (2).
5. Remove tube (1) from solenoid (4). Slip opposite end of tube (6) from intake manifold.
6. Remove gasket (3) located between EGR valve solenoid and tube flange.

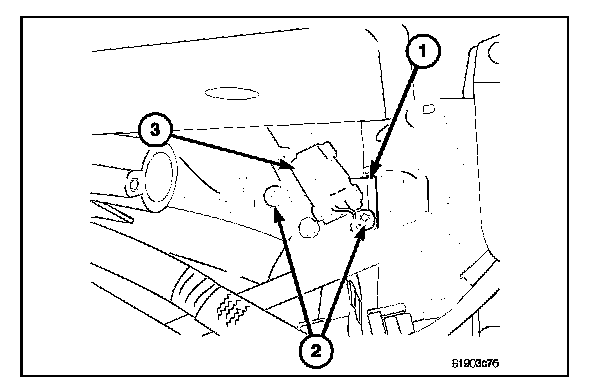

7. Disconnect electrical connector (3) at solenoid (1).
8. Remove two EGR valve solenoid mounting bolts (2).
9. Remove solenoid (1) from engine.

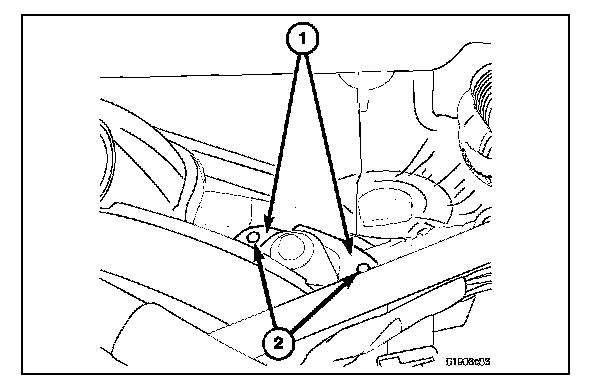

10. Remove and discard gasket (1) located under EGR solenoid.

INSTALLATION - 3.7L

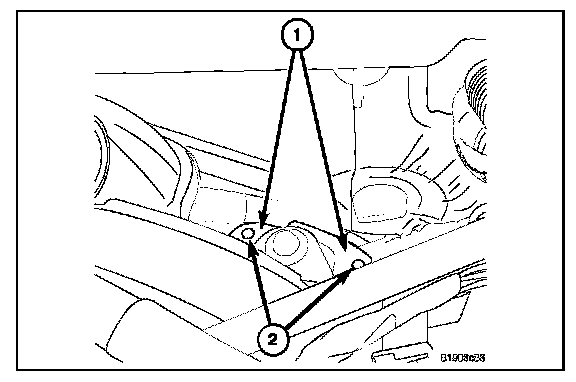

1. Clean gasket area (1) at rear of left cylinder head where it joins base of EGR valve.
2. Clean EGR tube where it joins EGR valve.
3. Position new gasket between EGR valve and cylinder head.

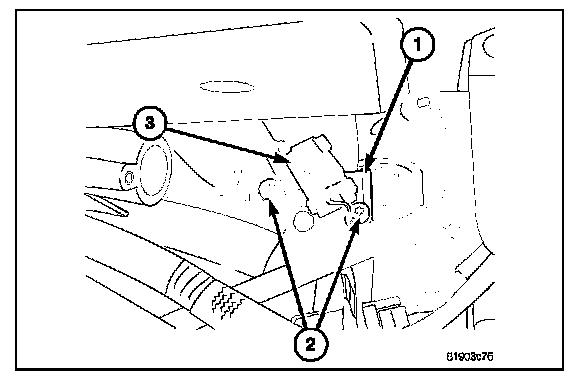

4. Position EGR valve to cylinder head. Install and tighten two bolts (2). Torque to 9 N.m (80 in.lbs.).

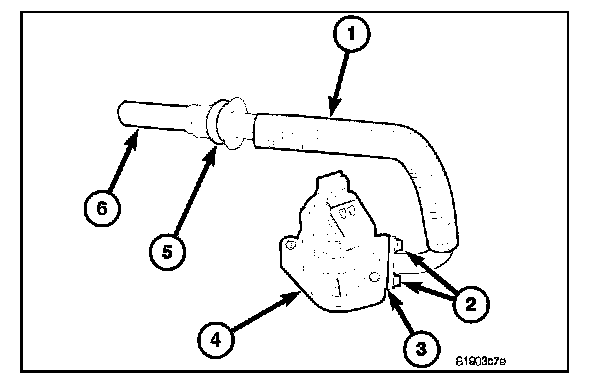

5. Position new gasket (3) between EGR tube flange and EGR valve assembly.
6. Position EGR tube (1) to side of EGR valve. Position end of tube (6) into intake manifold. Install two bolts (2). Torque to 11 N.m (8.5 ft. lbs.).




7. Connect electrical connector (3) to top of EGR valve solenoid (1).

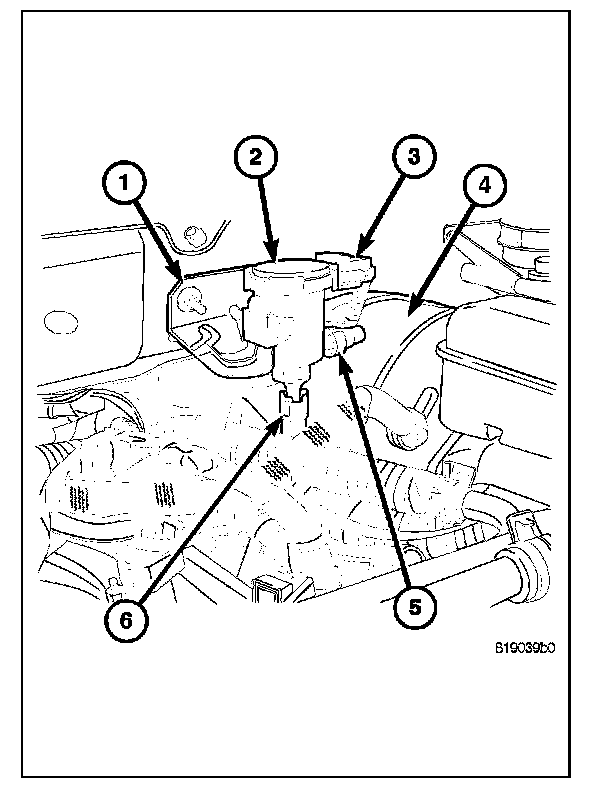

8. Install EVAP canister purge solenoid (2) by slipping assembly to tongue-type bracket (1).
9. Connect negative battery cable.
10. Using a diagnostic scan tool, erase any previously recorded DTC's (Diagnostic Trouble Codes).
