Ignition Coil: Diagrams

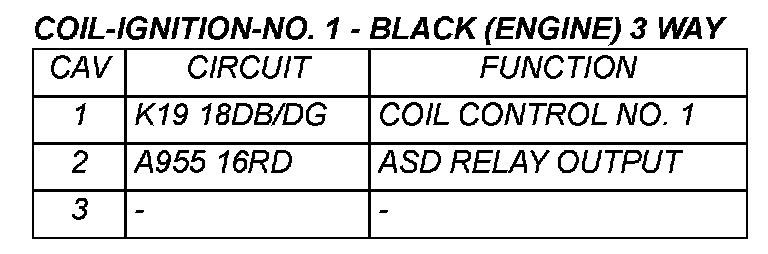

Coil - Ignition No. 1 - Black (engine) 3 Way (Part 1):

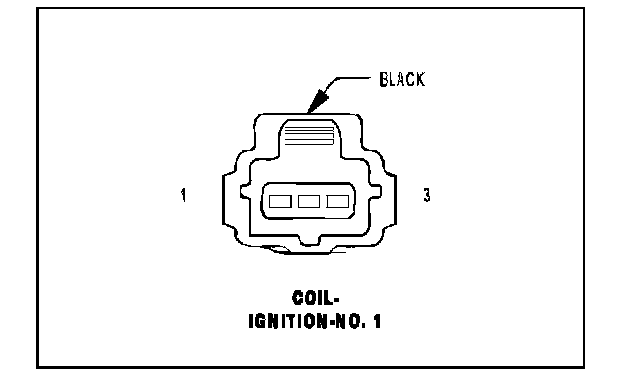

Coil - Ignition No. 1 - Black (Engine) 3 Way (Part 2):

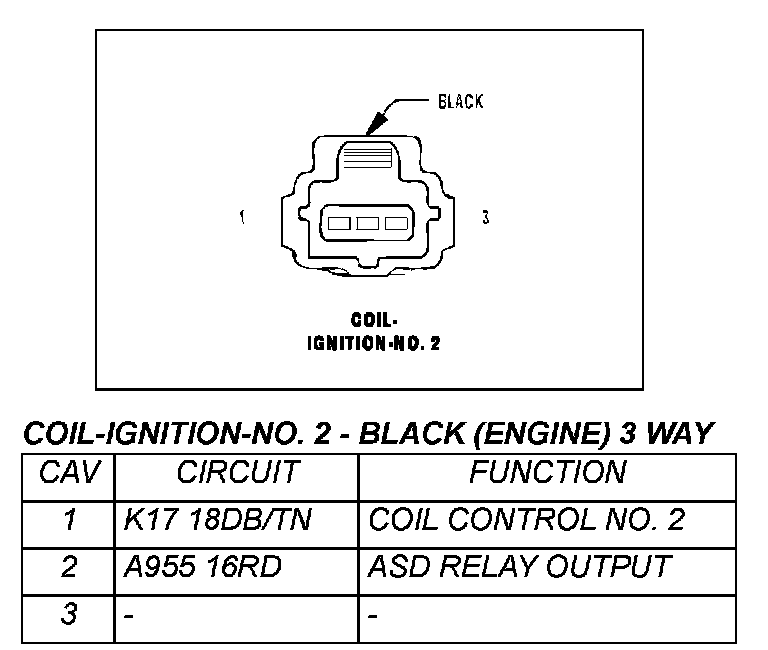

Coil - Ignition No. 2 - Black (Engine) 3 Way:

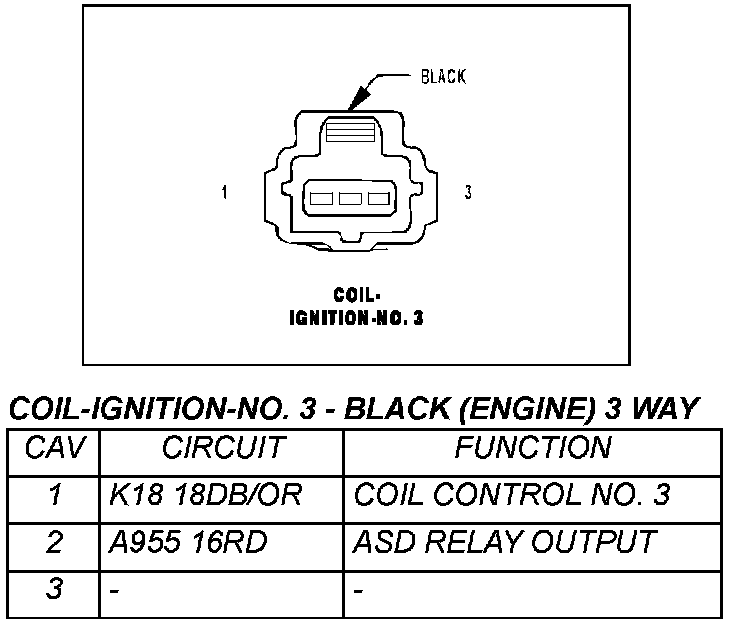

Coil - Ignition No. 3 - Black (Engine) 3 Way:

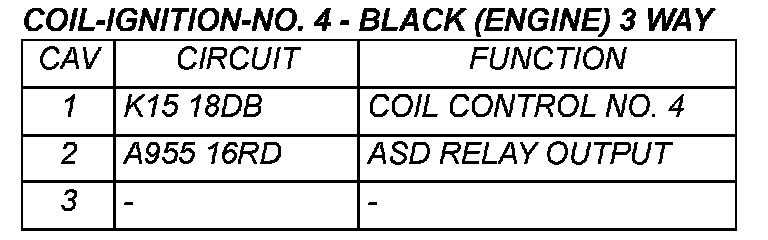

Coil - Ignition No. 4 - Black (Engine) 3 Way (Part 1):

Coil - Ignition No. 4 - Black (Engine) 3 Way (Part 2):

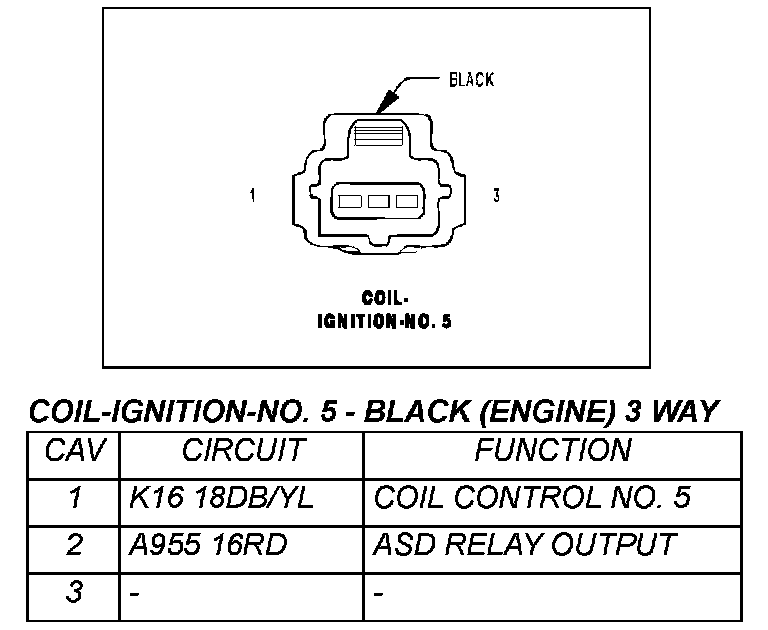

Coil - Ignition No. 5 - Black (Engine) 3 Way:

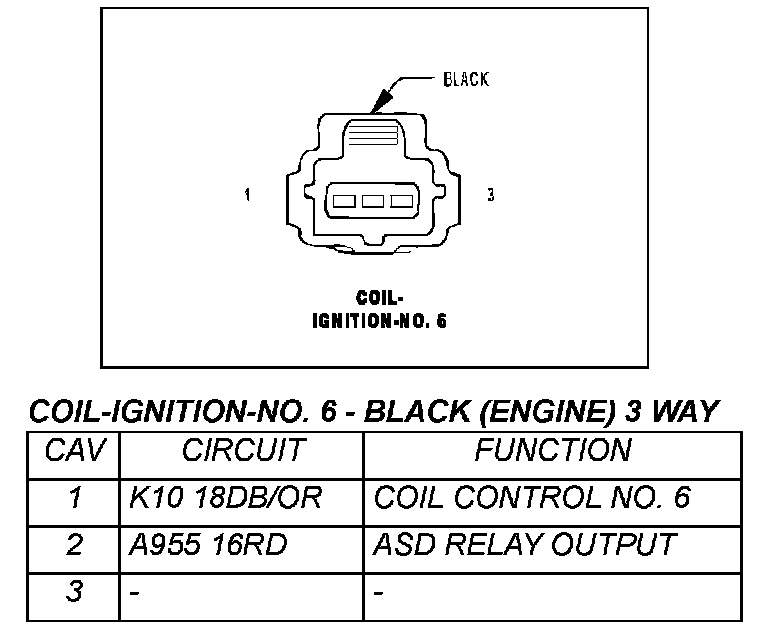

Coil - Ignition No. 6 - Black (Engine) 3 Way:
