Standard Bolt Tightening Torque

TORQUE REFERENCES
Individual Torque Charts appear within many of the Groups. Refer to the Standard Torque Specifications Chart for torque references not listed in the individual torque charts.

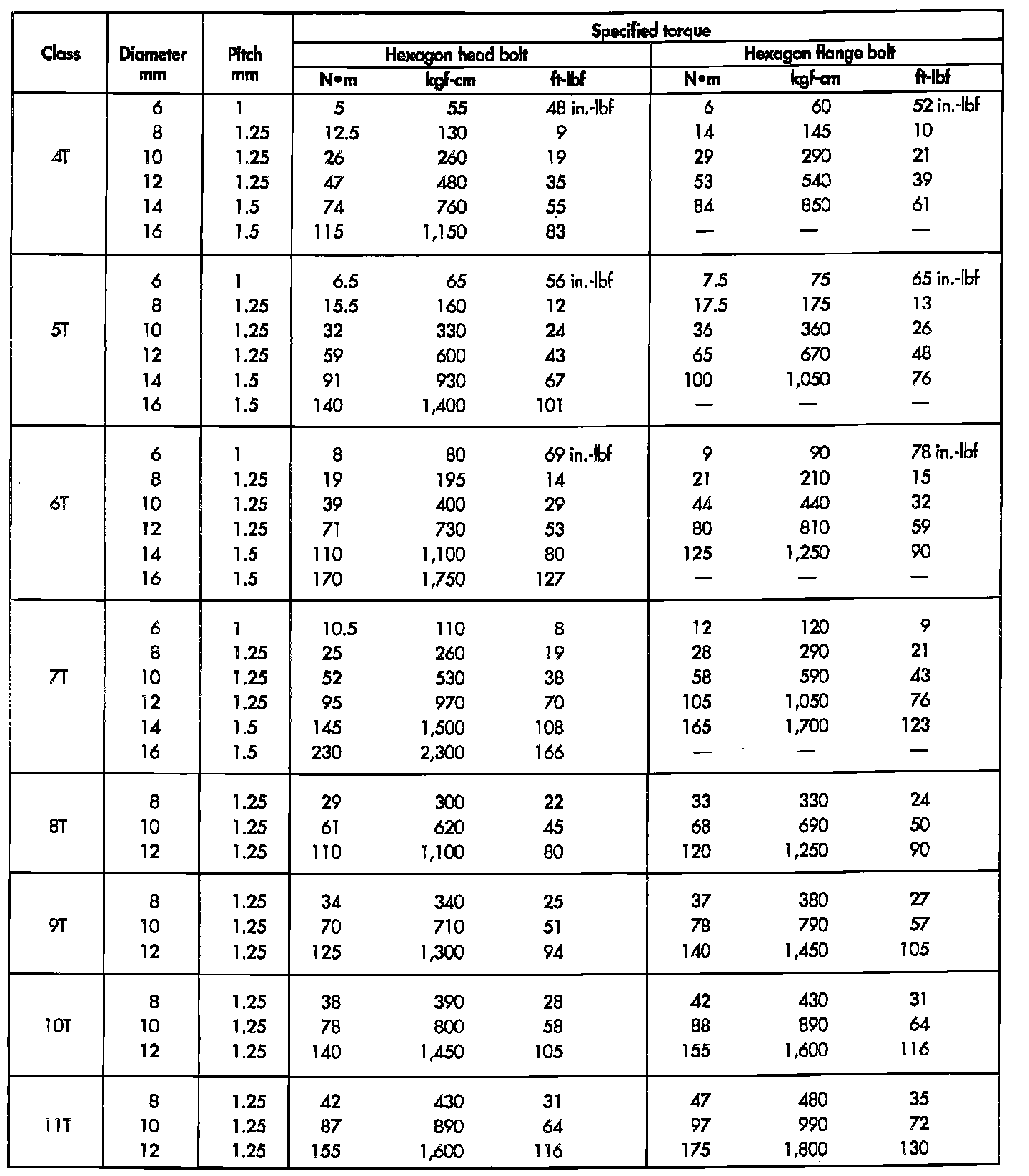

SPECIFIED TORQUE FOR STANDARD BOLTS
