Connector Views

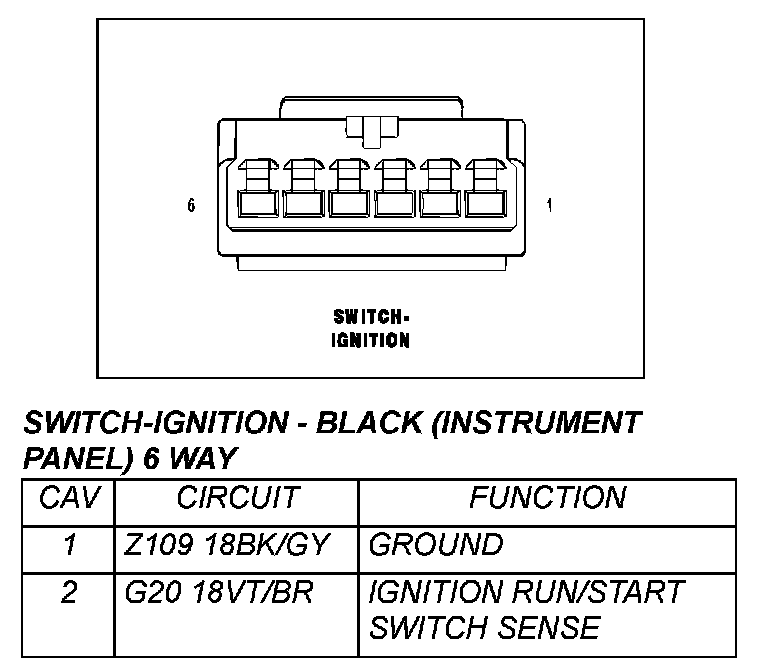

Switch - Ignition - Black (Instrument Panel) 6 Way (Part 1):

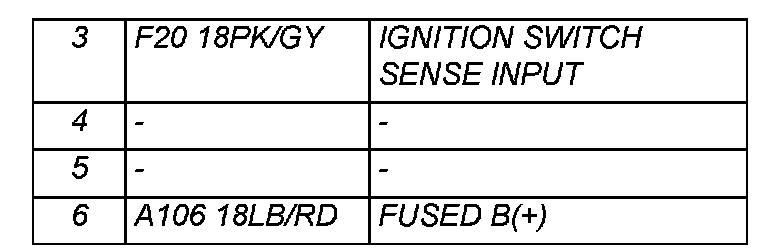

Switch - Ignition - Black (Instrument Panel) 6 Way (Part 2):
