Front Door Window Glass: Service and Repair

GLASS

REMOVAL

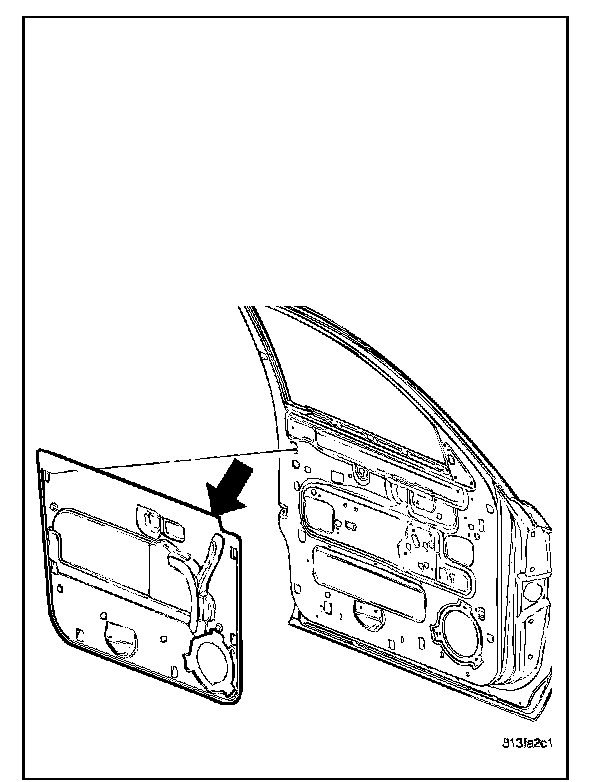

1. Remove the watershield.

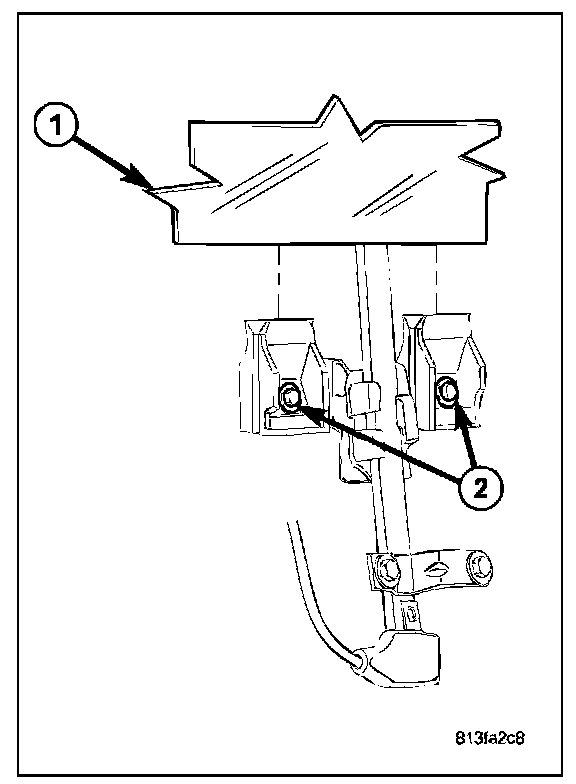

2. Temporarily install the window switch or window handle and position the glass (1) to gain access to the glass clamp screws (2).






3. Loosen the glass clamp screws (2) and carefully remove the glass (1) from the door.

INSTALLATION

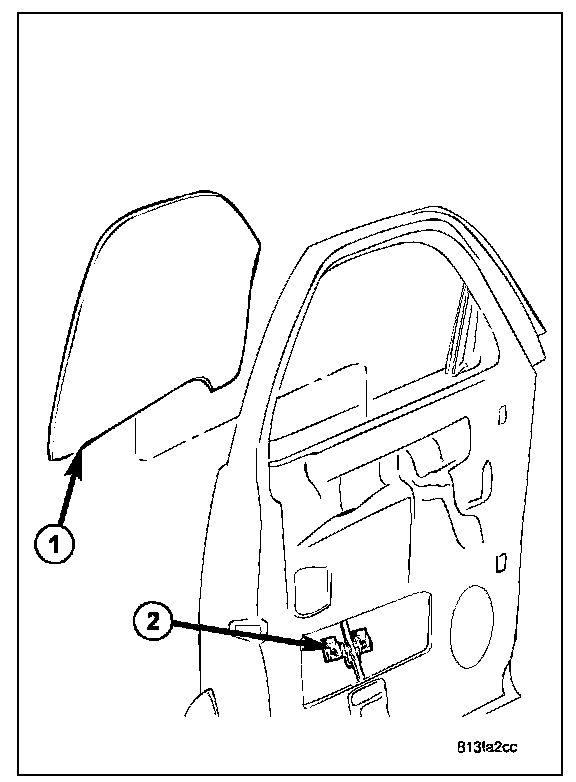

1. Install the glass into the door and position the glass (1) into the glass clamps.
2. Temporarily install the window crank handle or window switches and raise the glass into the full up position.

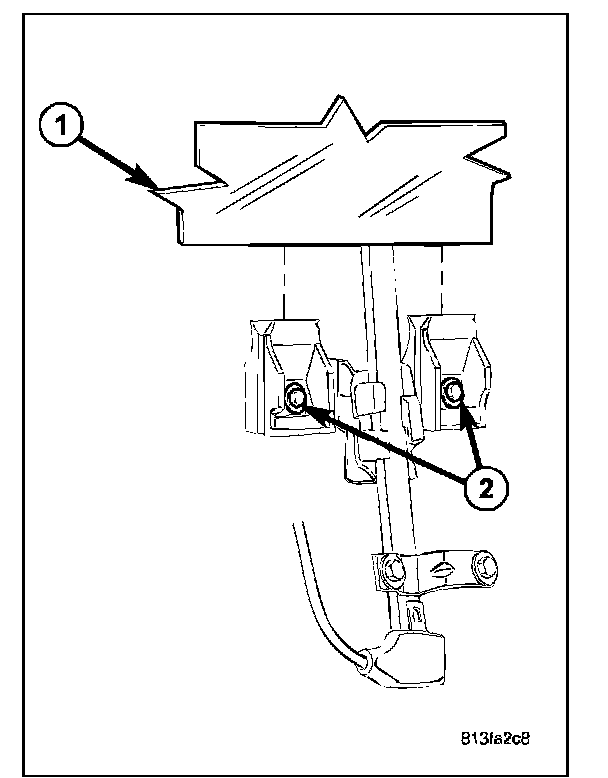

3. Tighten the glass clamp screws (2) securely.

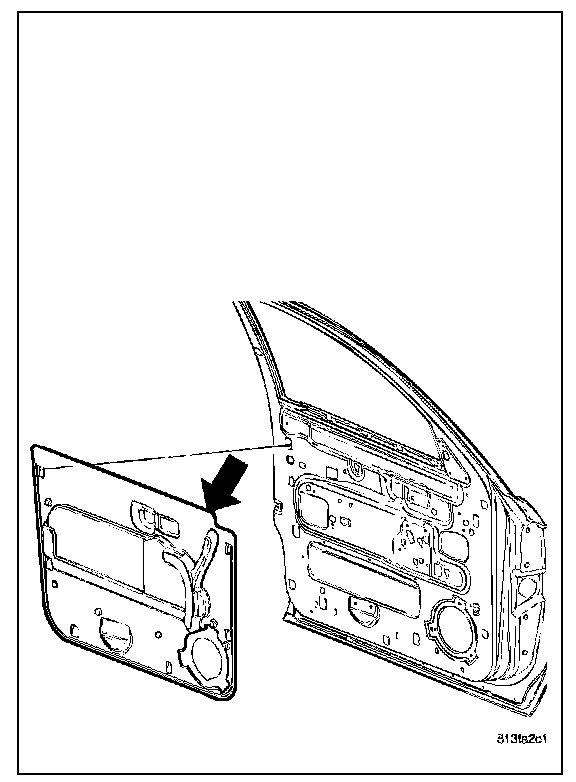

4. Remove the manual window crank or window switches, and install the watershield.
