Rear Door

CHANNEL - GLASS

REMOVAL







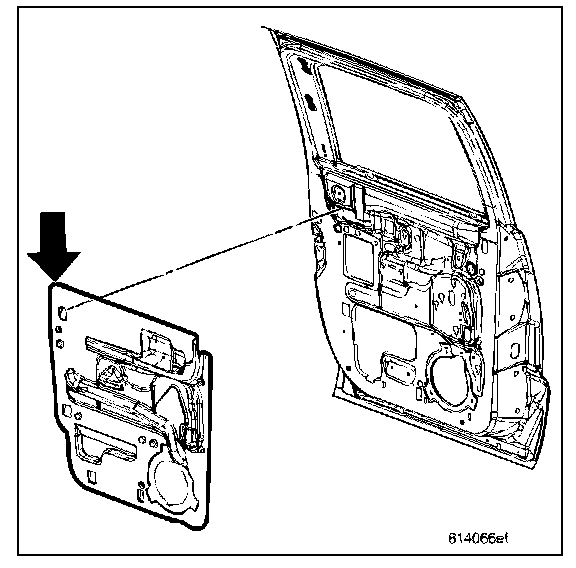

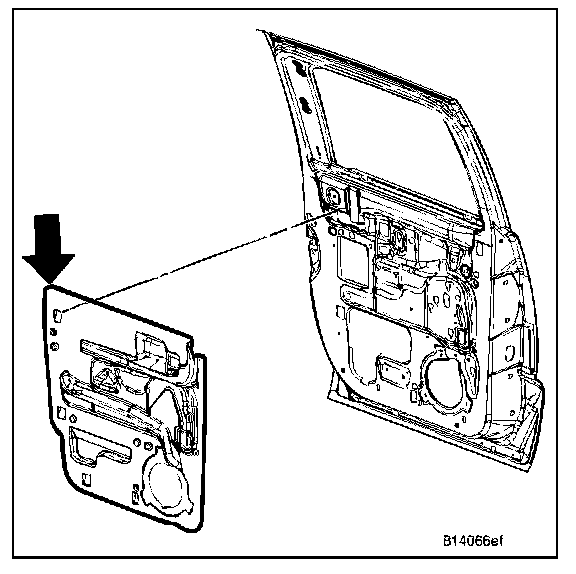

1. Raise glass to the up position and remove the watershield.

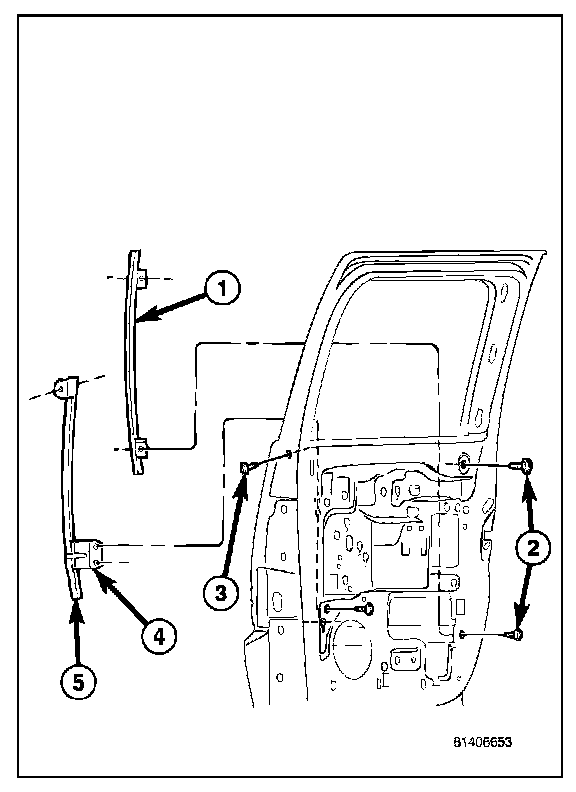

2. Remove the screws (3) and remove the front channel (5).
3. Remove the screws (2) and remove the rear channel (1).

INSTALLATION







1. Install the rear channel (1) and install the nut and screw (2).
2. Tighten the fasteners to 9.5 N.m (85 in.lbs.).
3. Install the front channel (5) and install the screws (3).
4. Tighten the fasteners to 9.5 N.m (85 in.lbs.).







5. Install the watershield.
