Front Cross-Member: Service and Repair

CROSSMEMBER - UNDERBODY

REMOVAL






1. Lift and support the vehicle.

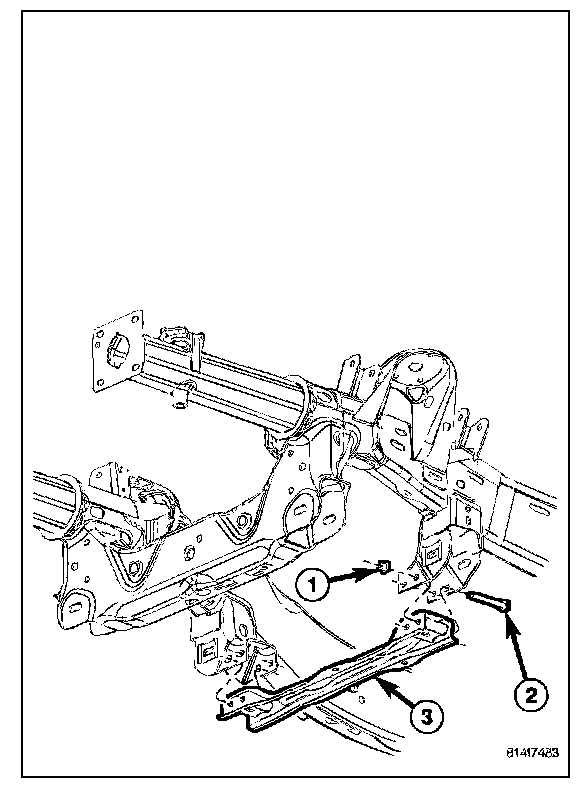

2. Remove the four bolts (2) and nuts (1), and remove the crossmember.

INSTALLATION

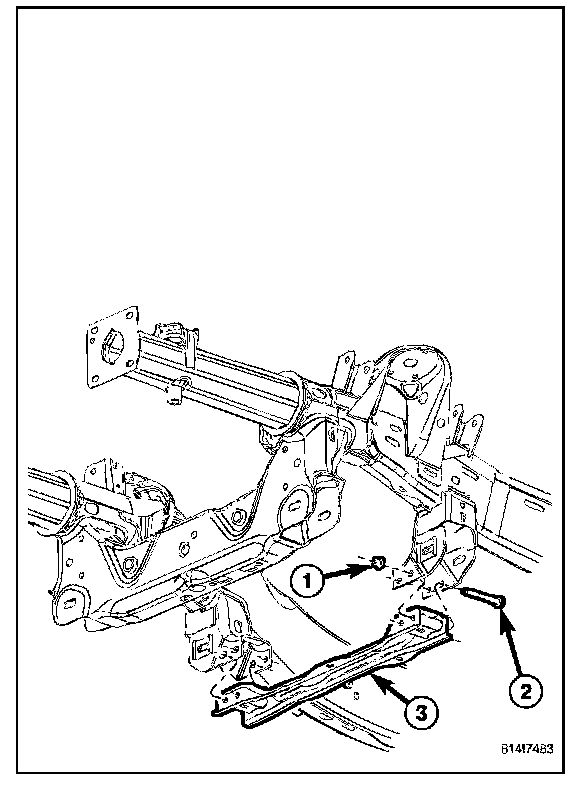

1. Install the crossmember (3) and install the bolts (2) and nuts (1).
2. Tighten the bolts and nuts to 102 N.m (75 ft.lbs.).
