Amplifier, Sound System
Amplifier, Sound System

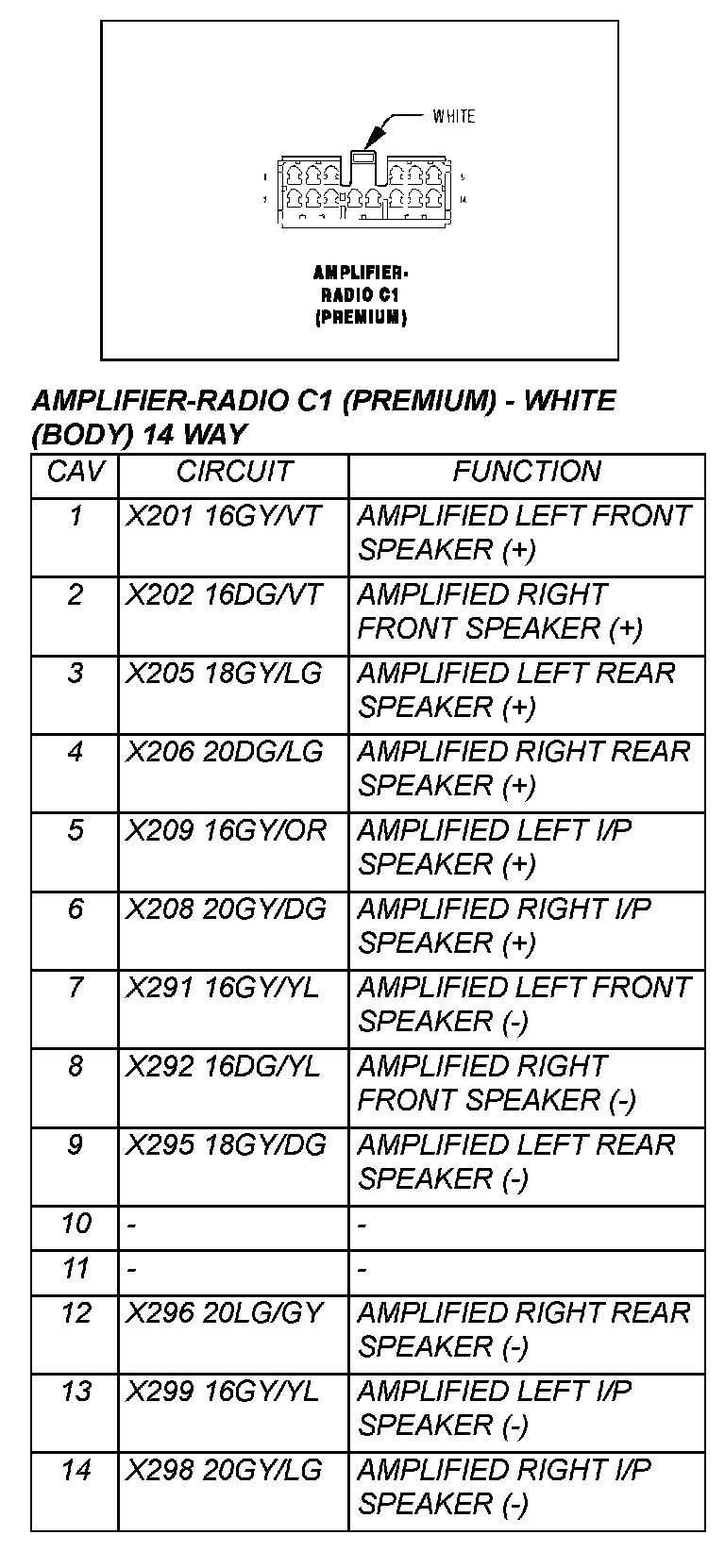

Amplifier-Radio C1 (Premium) - White (Body) 14 Way:

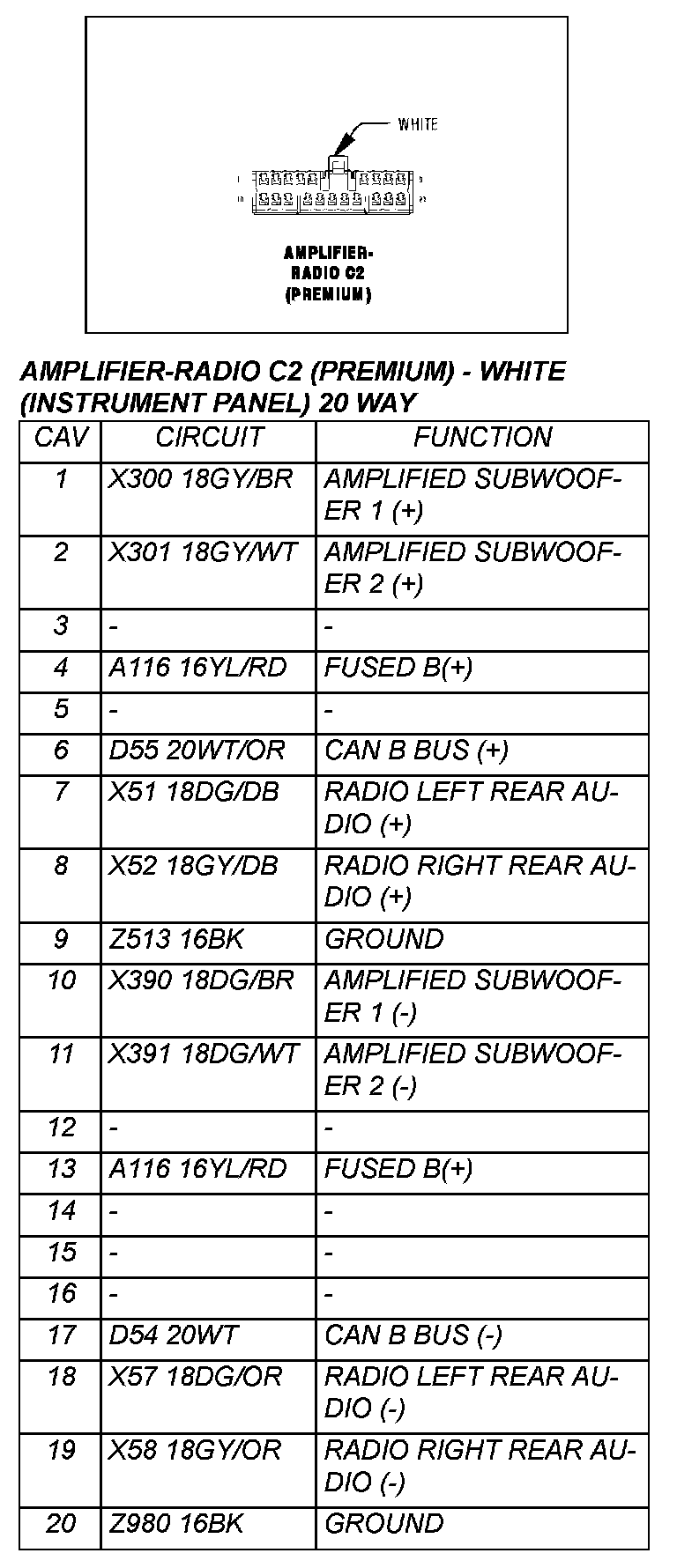

Amplifier-Radio C2 (Premium) - White (Instrument Panel) 20 Way:

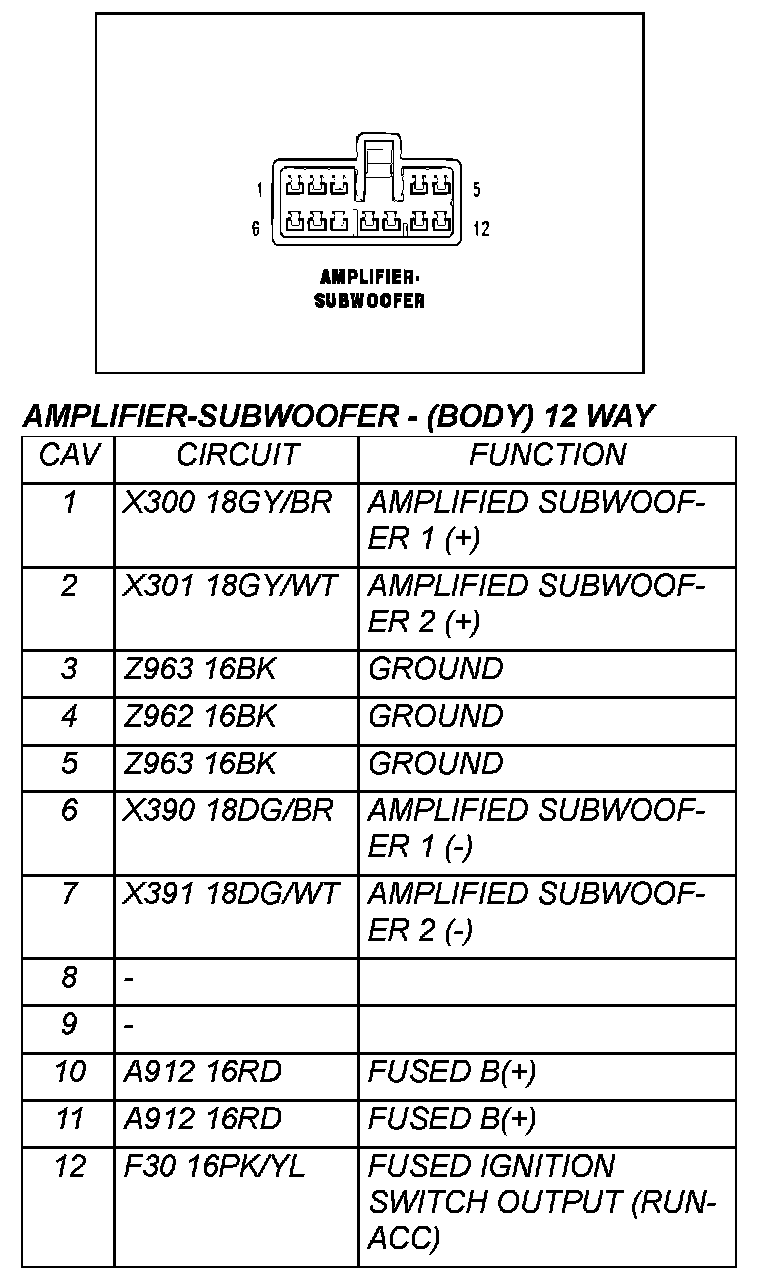

Amplifier-Subwoofer - (Body) 12 Way:
