Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2008
>>
Raider 4WD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>
Break Provision Module
Break Provision Module

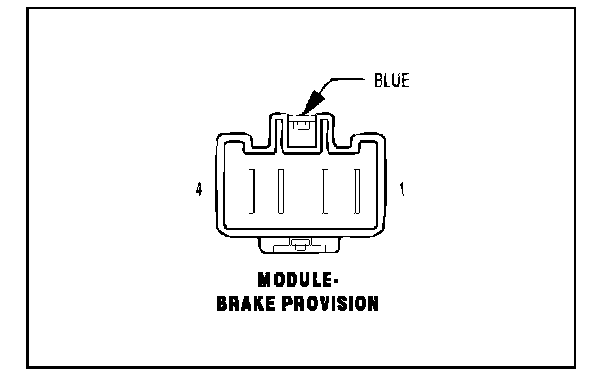

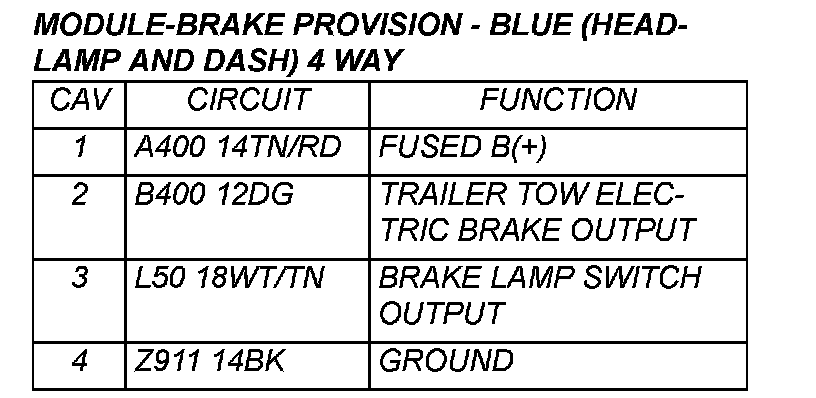

Module - Break Provision - Blue (Headlamp And Dash) 4 Way (Part 1):
Module - Break Provision - Blue (Headlamp And Dash) 4 Way (Part 2):
