Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

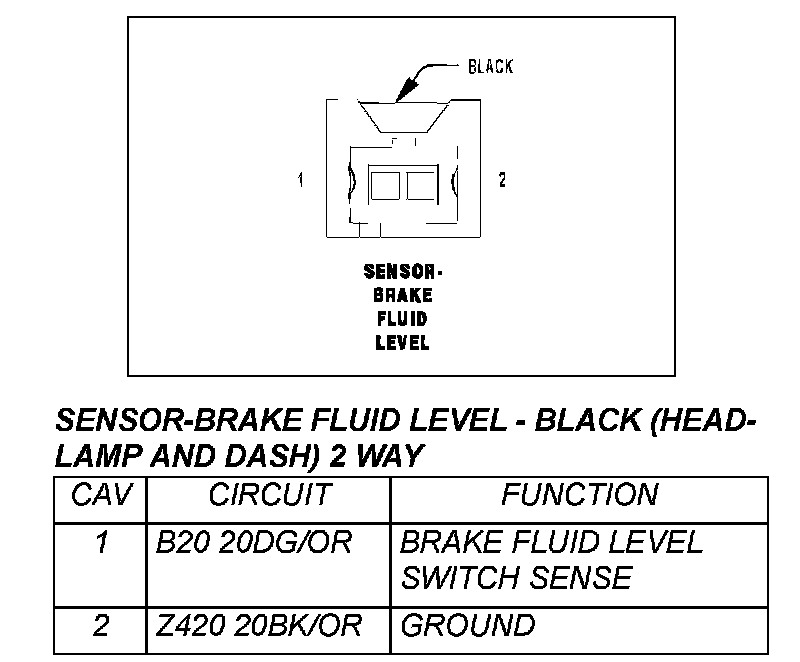

Sensor - Brake Fluid Level - Black (Headlamp And Dash) 2 Way:
