Brake Light Switch
Brake Light Switch

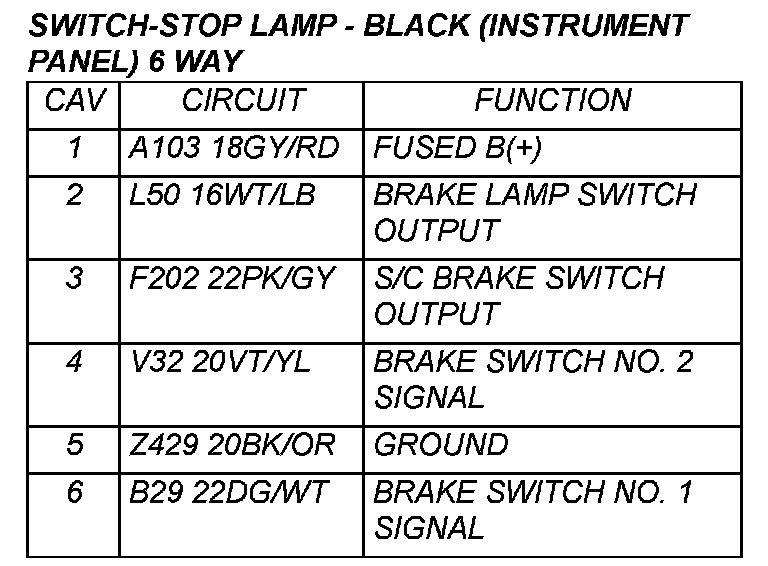

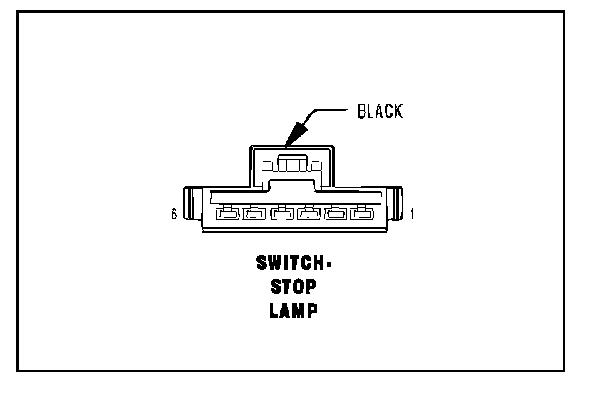

Switch - Stop Lamp - Black (Instrument Panel) 6 Way (Part 1):
Switch - Stop Lamp - Black (Instrument Panel) 6 Way (Part 2):
