Engine - Coolant Temperature Sensor/Switch
Engine - Coolant Temperature Sensor/Switch

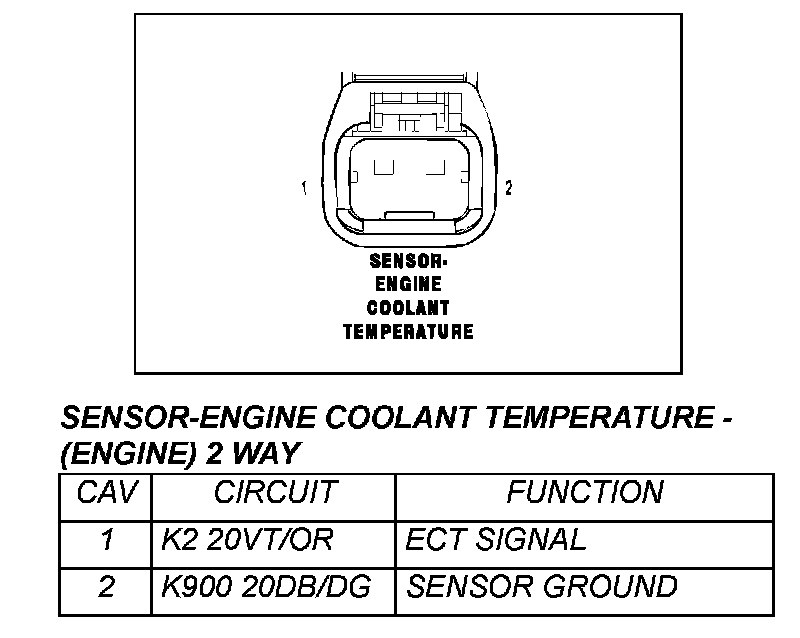

Sensor - Engine Coolant Temperature - (Engine) 2 Way:
