Gear Sensor/Switch, Transfer Case
Gear Sensor/Switch, Transfer Case

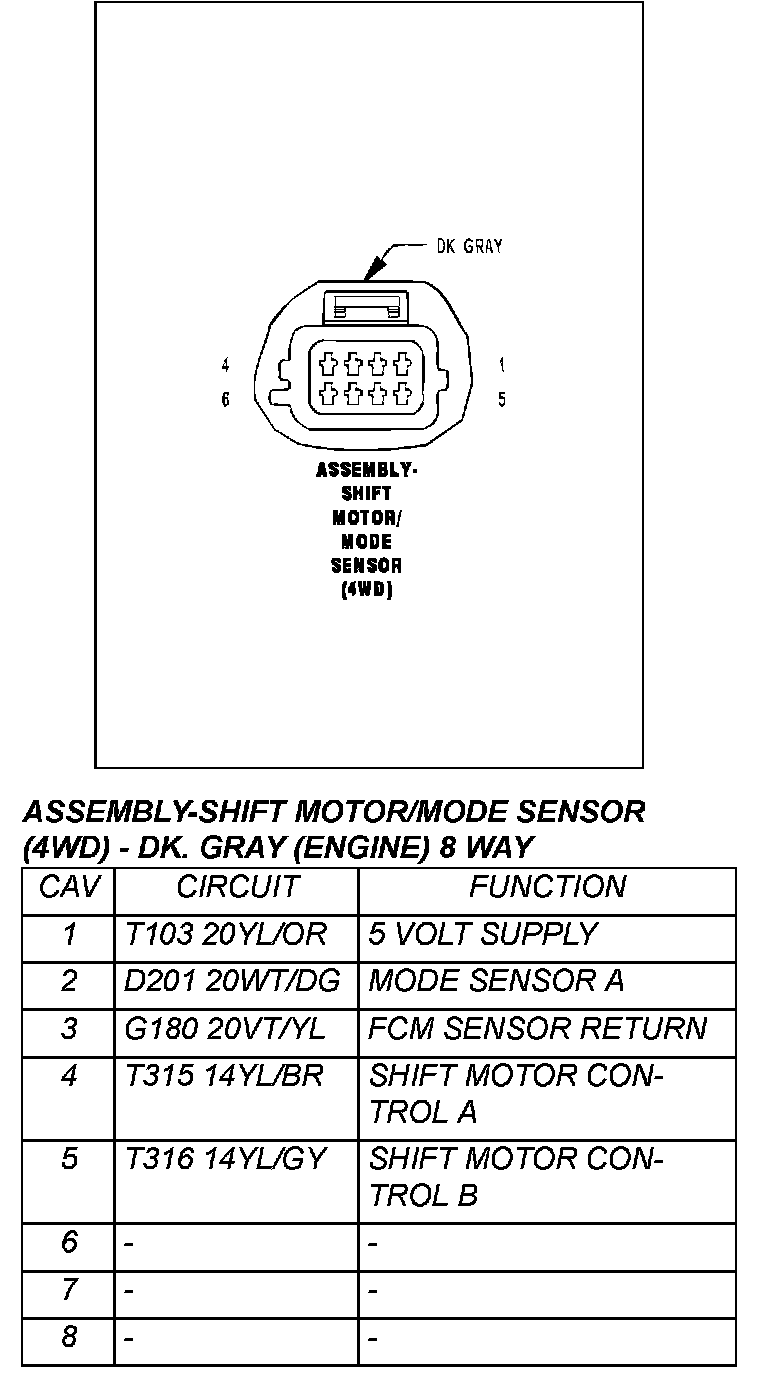

Assembly-Shift Motor/Mode Sensor - DK.Gray (Engine) 8 Way:
