Connector Views
>>
Instrument Cluster / Carrier
>>
Instrument Panel Control Module
Instrument Panel Control Module

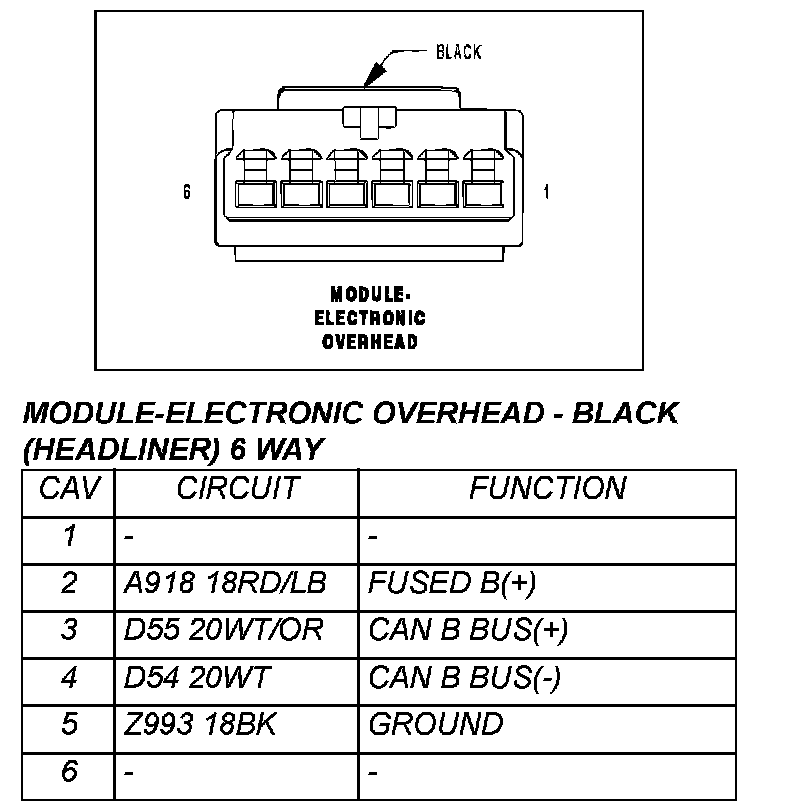

Module - Electronic Overhead - Black (Headliner) 6 Way:
