Keyless Entry Module
Keyless Entry Module

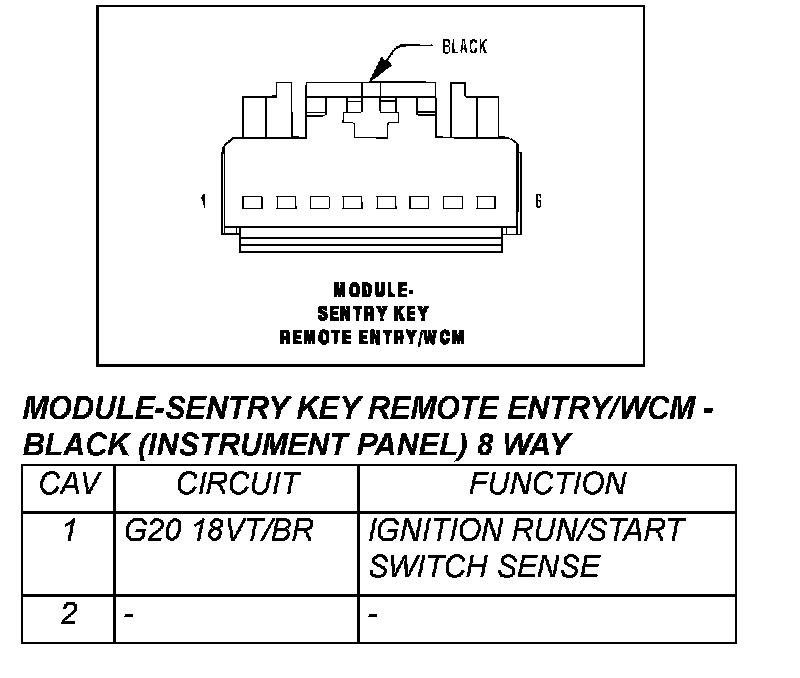

Module - Sentry Key Remote Entry/WCM - Black (Instrument Panel) 8 Way (Part 1):

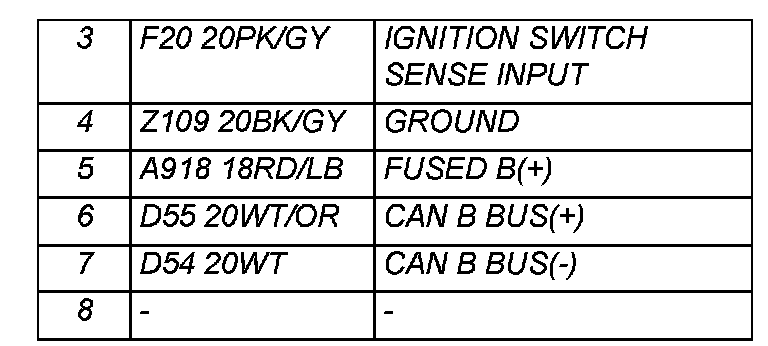

Module - Sentry Key Remote Entry/WCM - Black (Instrument Panel) 8 Way (Part 2):
