Power Seat Motor Position Sensor

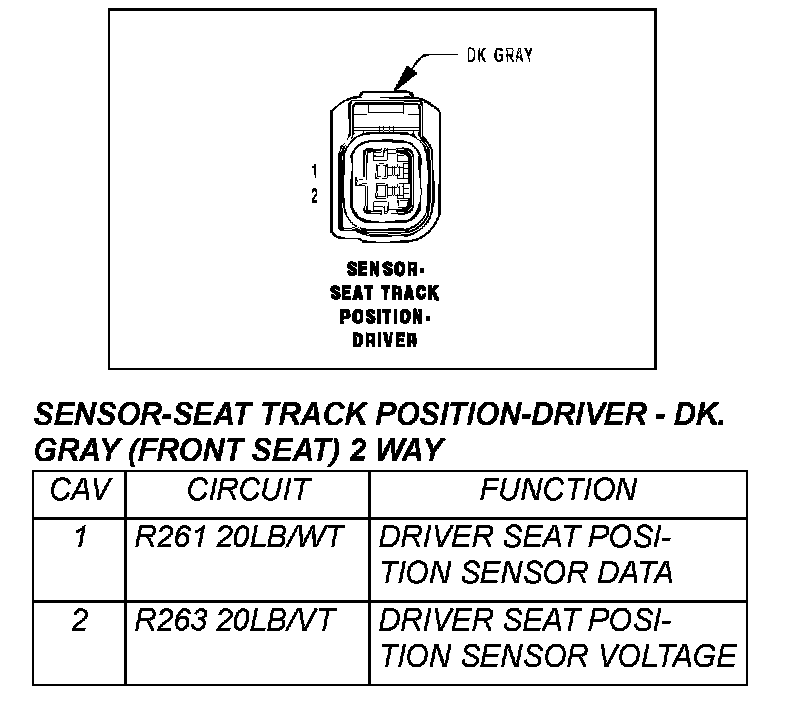

Sensor - Seat Track Position - Driver - DK. Gray (Front Seat) 2 Way:
