Refrigerant Pressure Sensor / Switch, HVAC
Refrigerant Pressure Sensor / Switch, HVAC

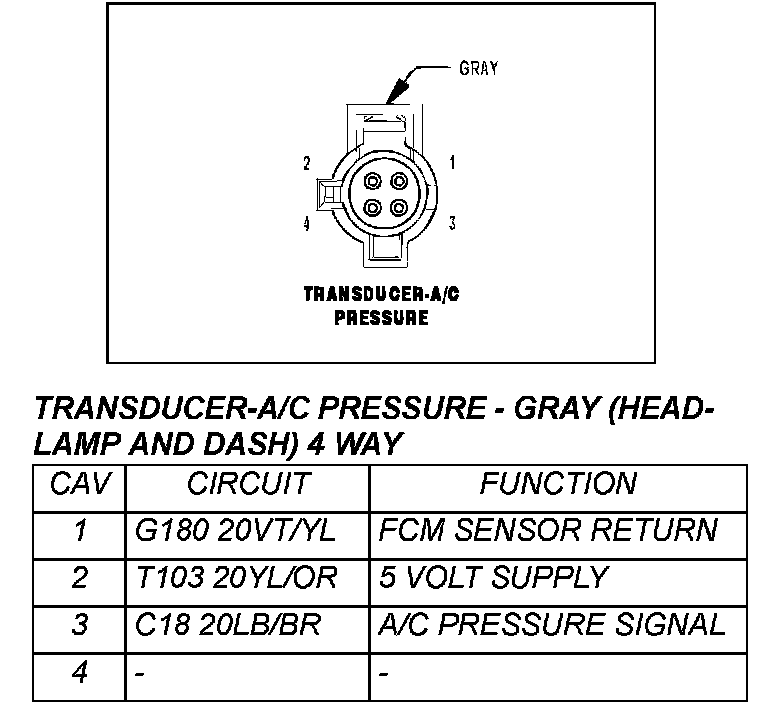

Transducer - A/C Pressure - Gray (Headlamp And Dash) 4 Way:
