Home >> Mitsubishi >> 2008 >> Raider 4WD V6-3.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams

Control Assembly: Diagrams

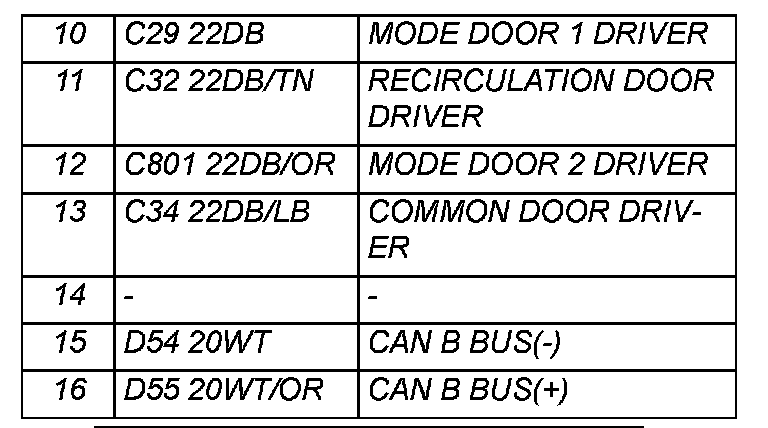

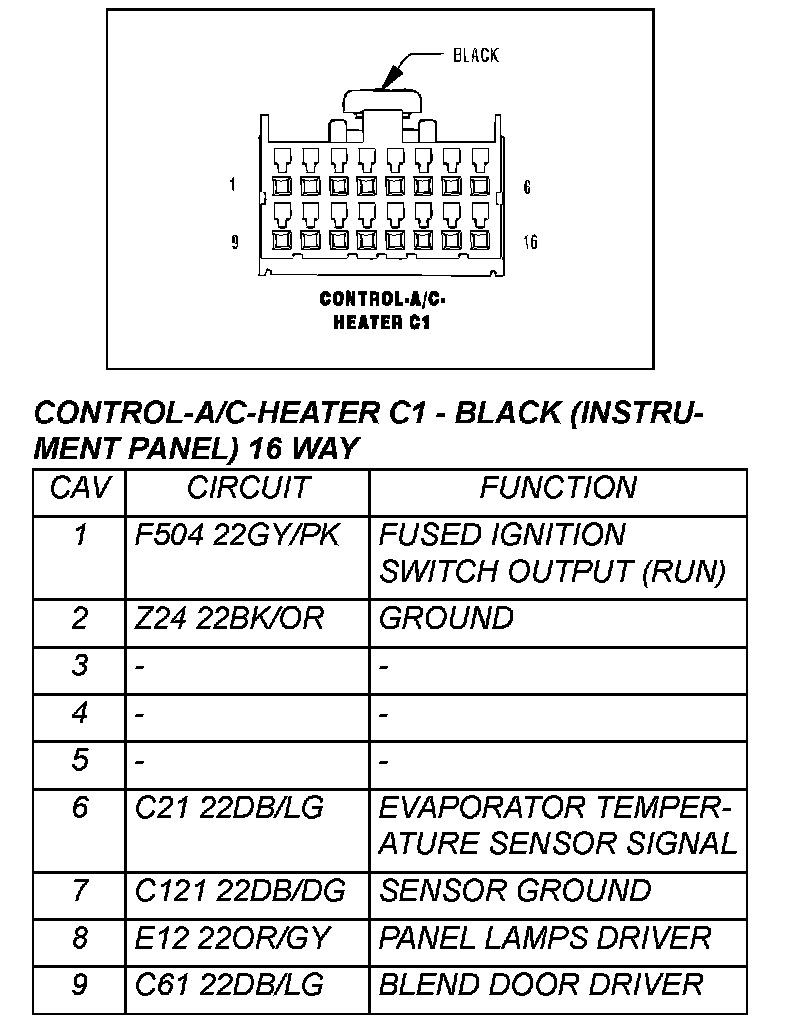

Control - A/C - Heater C1 - Black (Instrument Panel) 16 Way (Part 1):



Control - A/C - Heater C1 - Black (Instrument Panel) 16 Way (Part 2):

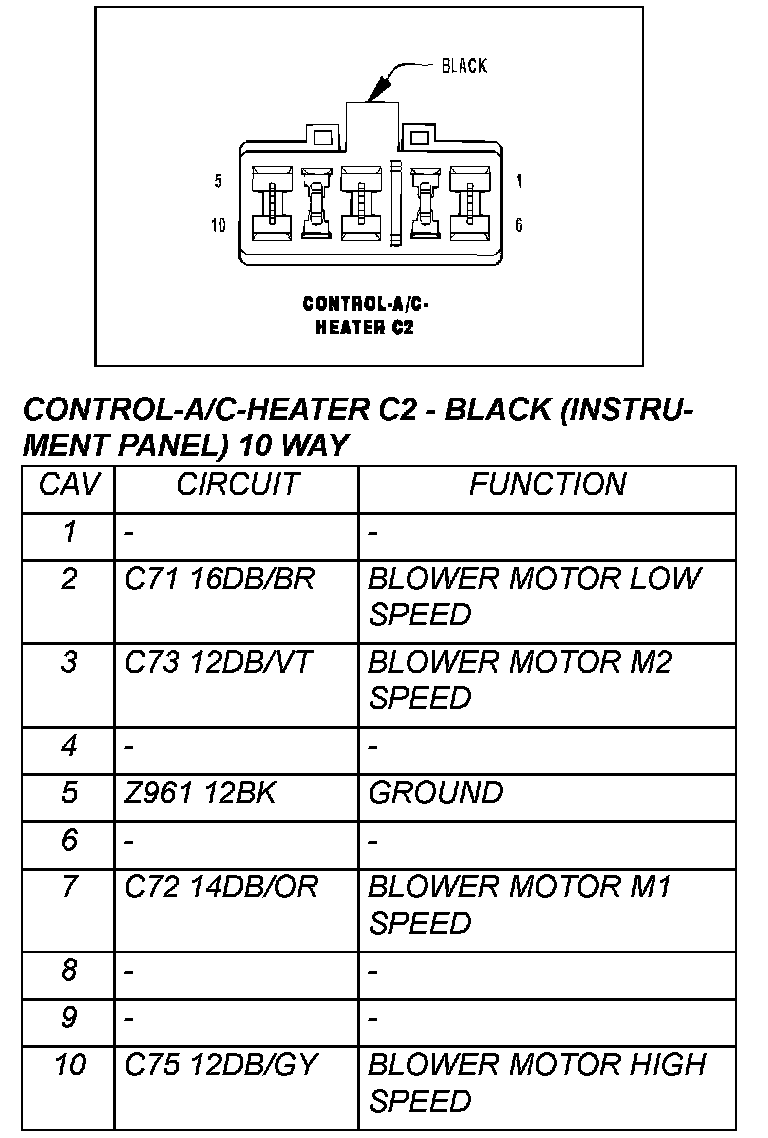

Control - A/C - Heater C2 - Black (Instrument Panel) 10 Way:
