Connector Locations

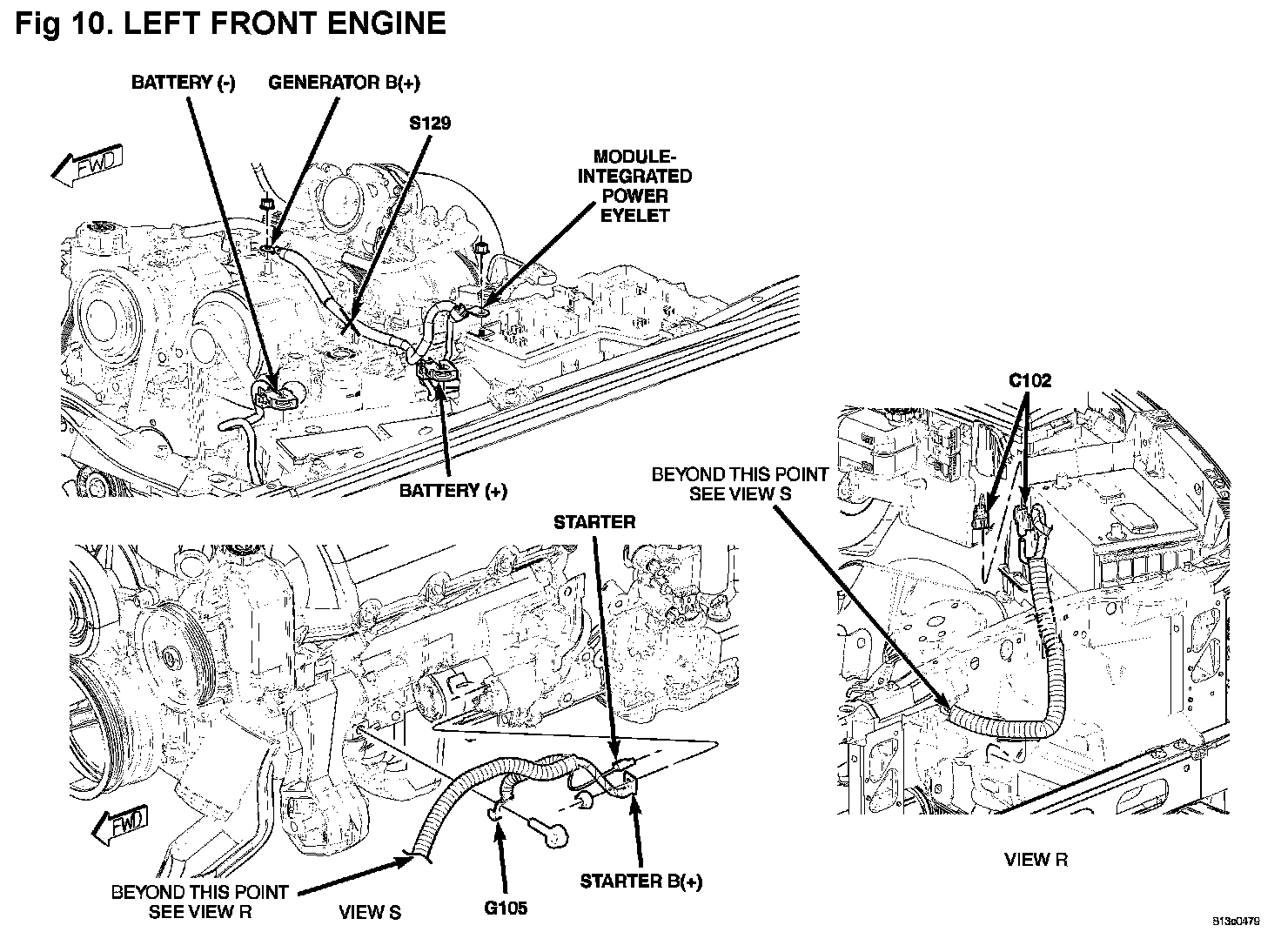

Fig 10. Left Front Engine:

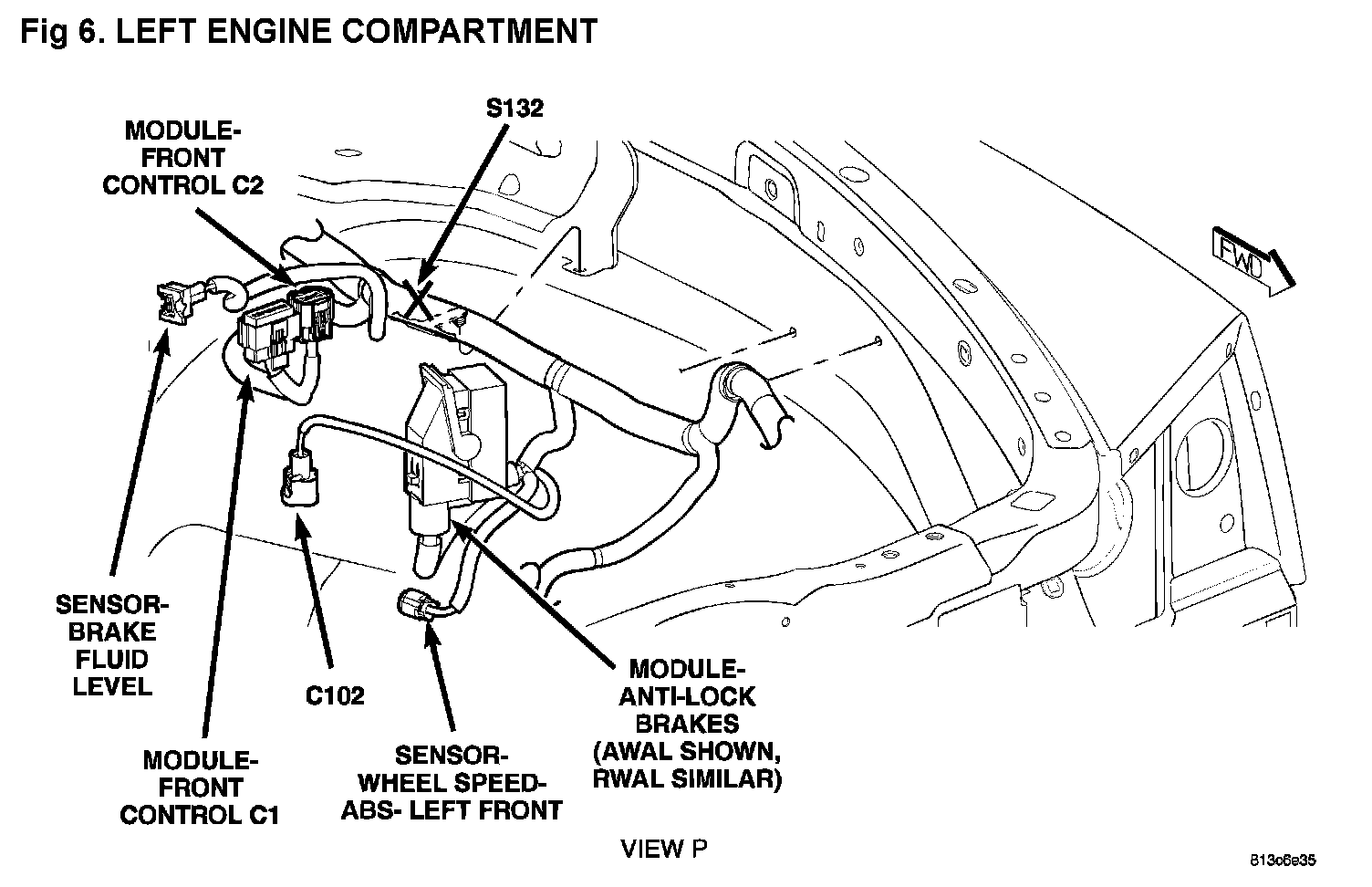

Fig 6. Left Engine Compartment:

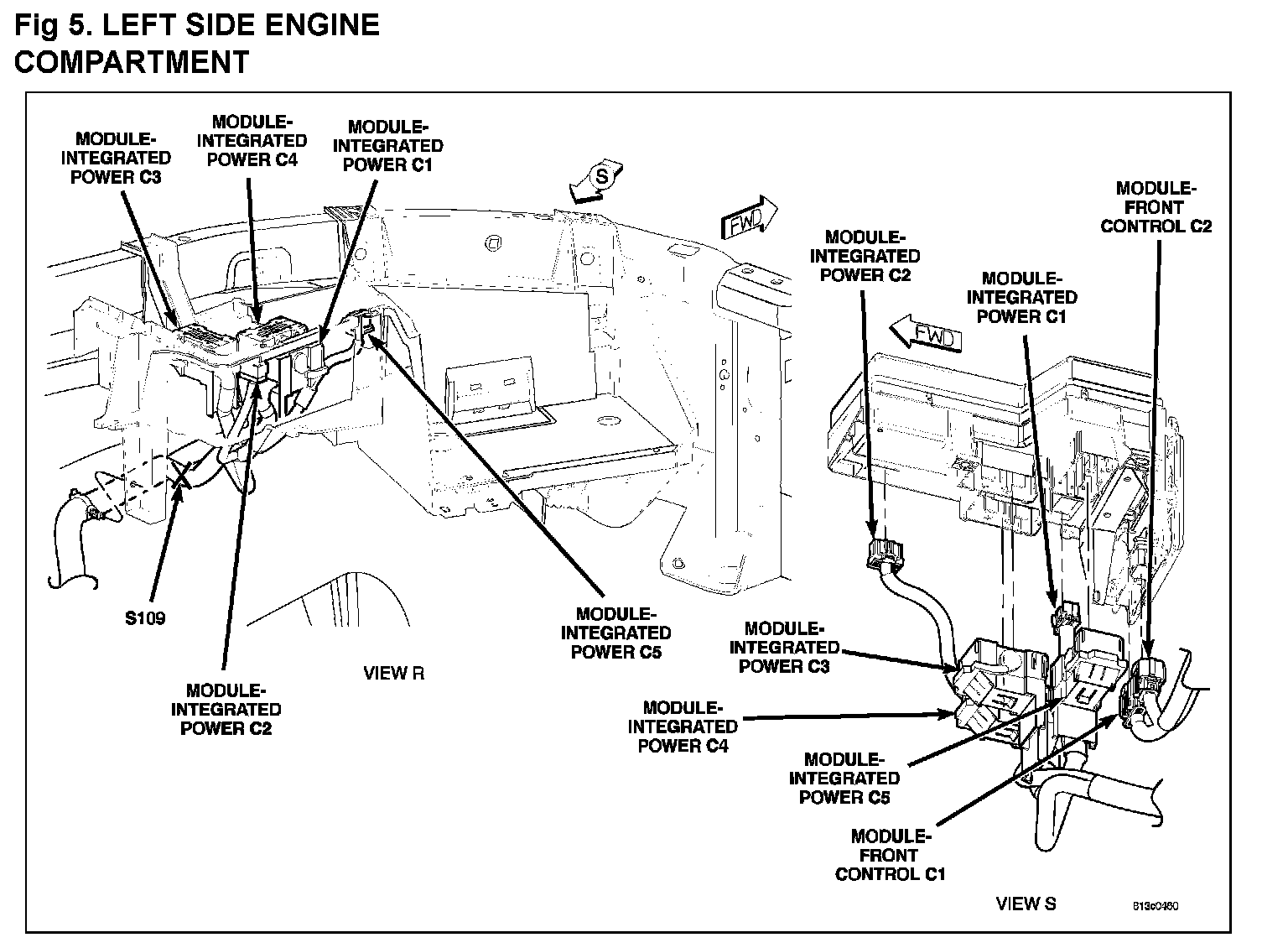

Fig. 5 Left Side Engine Compartment:
