Accelerator Pedal Position Sensor: Diagrams

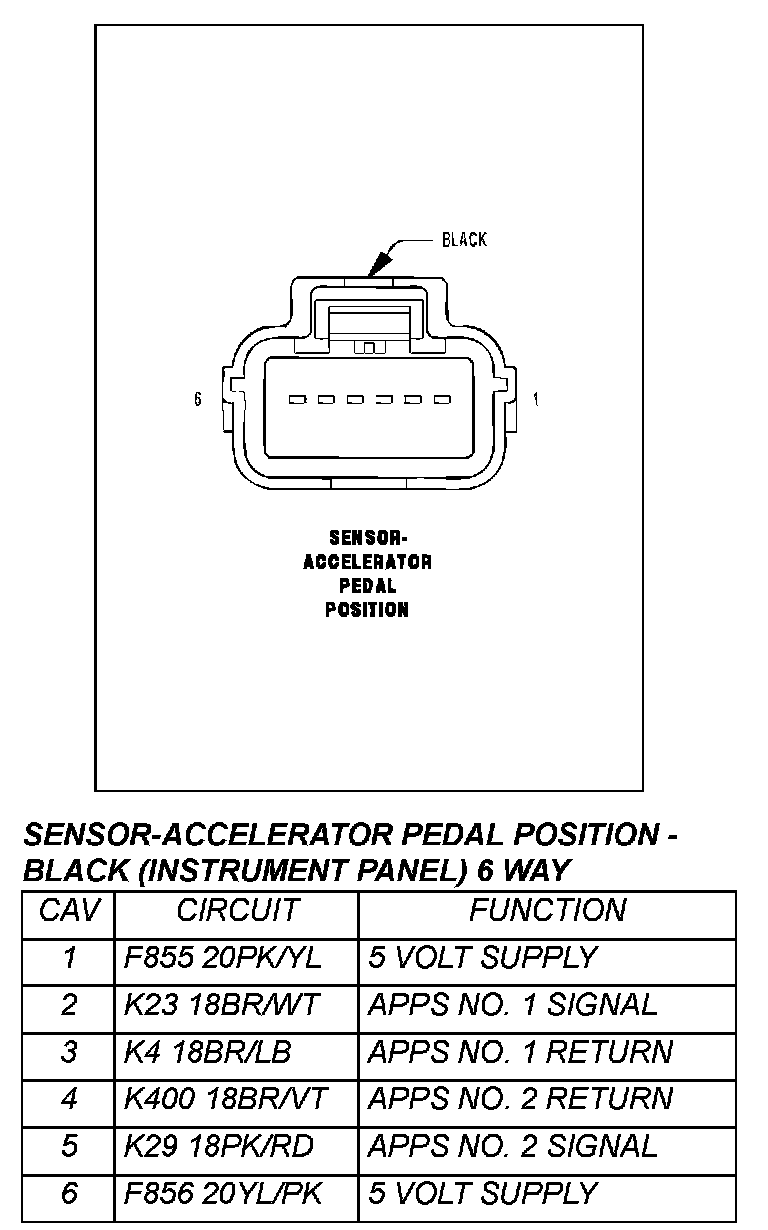

Sensor - Accelerator Pedal Position - Black (Instrument Panel) 6 Way:
