Data Link Connector: Diagrams

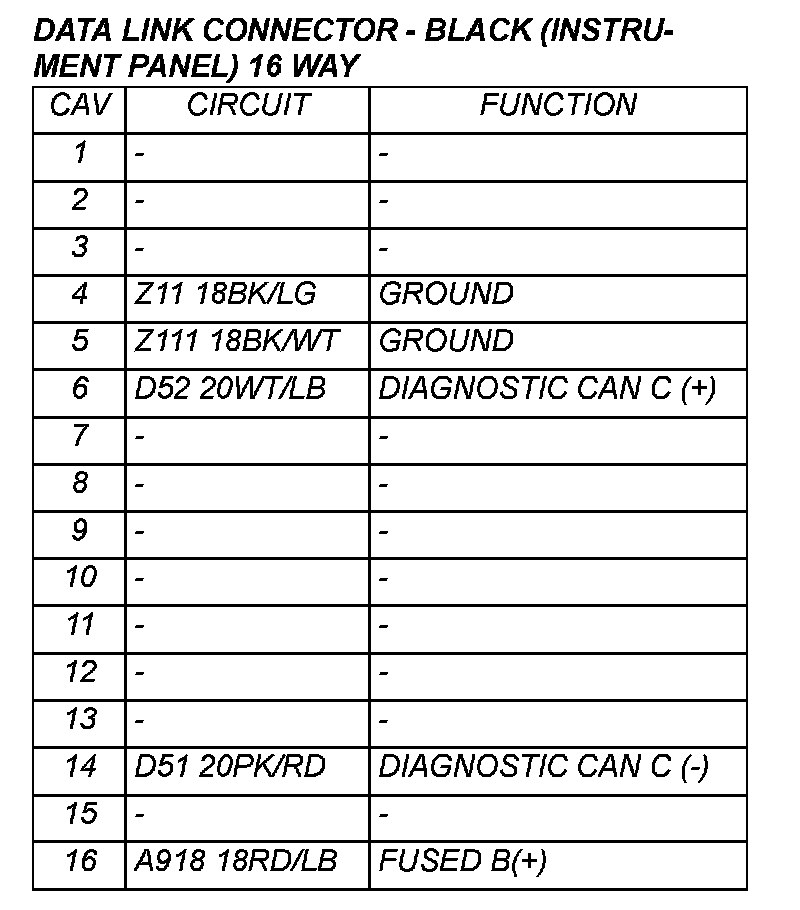

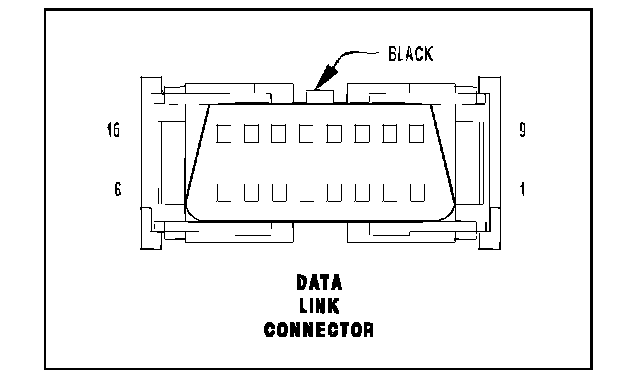

Data Link Connector - Black (Instrument Panel) 16 Way (Part 1):
Data Link Connector - Black (Instrument Panel) 16 Way (Part 2):
