Knock Sensor: Diagrams

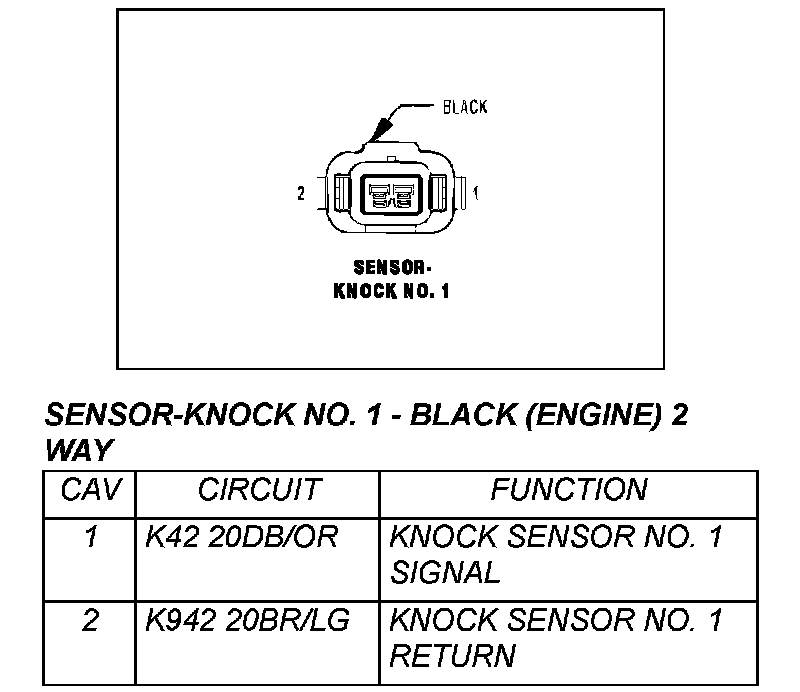

Sensor - Knock No. 1 - Black (Engine) 2 Way:

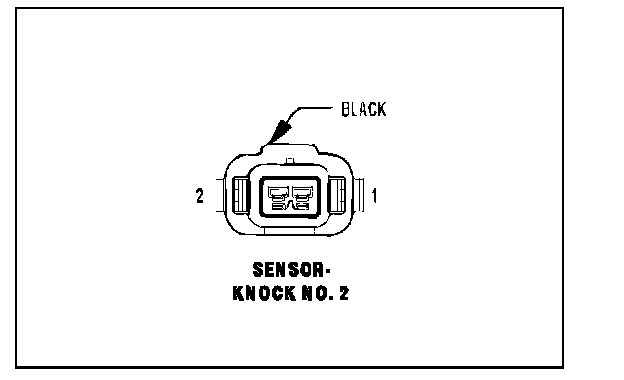

Sensor - Knock No. 2 - Black (Engine) 2 Way (Part 1):

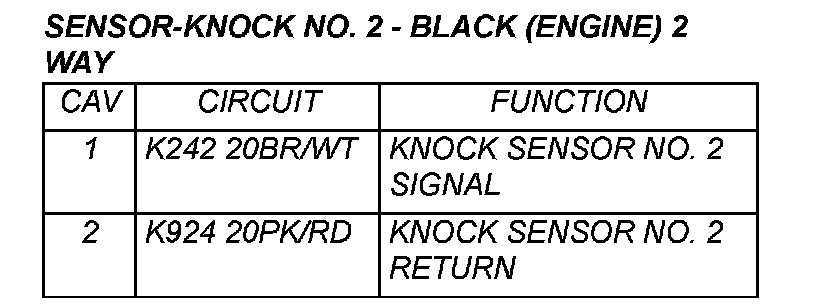

Sensor - Knock No. 2 - Black (Engine) 2 Way (Part 2):
