Reprogramming Procedure
REPROGRAMMING PROCEDURE1. Connect a battery charger to the vehicle's battery.
BATTERY VOLTAGE MUST BE MAINTAINED BETWEEN 13.2 AND 13.5 VOLTS. CHECK THE CONDITION OF THE BATTERY AND CHARGE IT IF NECESSARY. CONNECT A BATTERY CHARGER SET TO CONTINUOUS CHARGE TO THE BATTERY. DO NOT ALLOW THE CHARGER TO 'TIME OUT' DURING THE REPROGRAMMING PROCESS. DO NOT ALLOW THE CHARGING VOLTAGE TO EXCEED 13.5 VOLTS DURING THE PROCESS.
2. Connect the reprogramming equipment as follows:
a. Start the laptop computer.
b. Connect the USB cable to the VCI.
c. Connect the USB cable to the laptop.
d. Connect the blue MUT-III main harness to the VCI.
e. Connect the other end of the blue MUT-III main harness to the vehicle's data link connector.
f. Turn the VCI power switch ON. Verify the indicator lamp in the upper right corner of the screen is green.
NOTE:
If the USB cable is disconnected during this procedure, a warning message will display. Close the message display by clicking on the OK button.
3. Refer to the Raider PCM (ECU) Software Part Number Chart shown in this bulletin or the "Raider ECU Part Number & ECU Calibration" chart on the Mitsubishi Dealer Link in the Service Tech Resources page to identify the appropriate calibration for this programming.
4. Open RAIDER STV from the main page of the MUT-III.

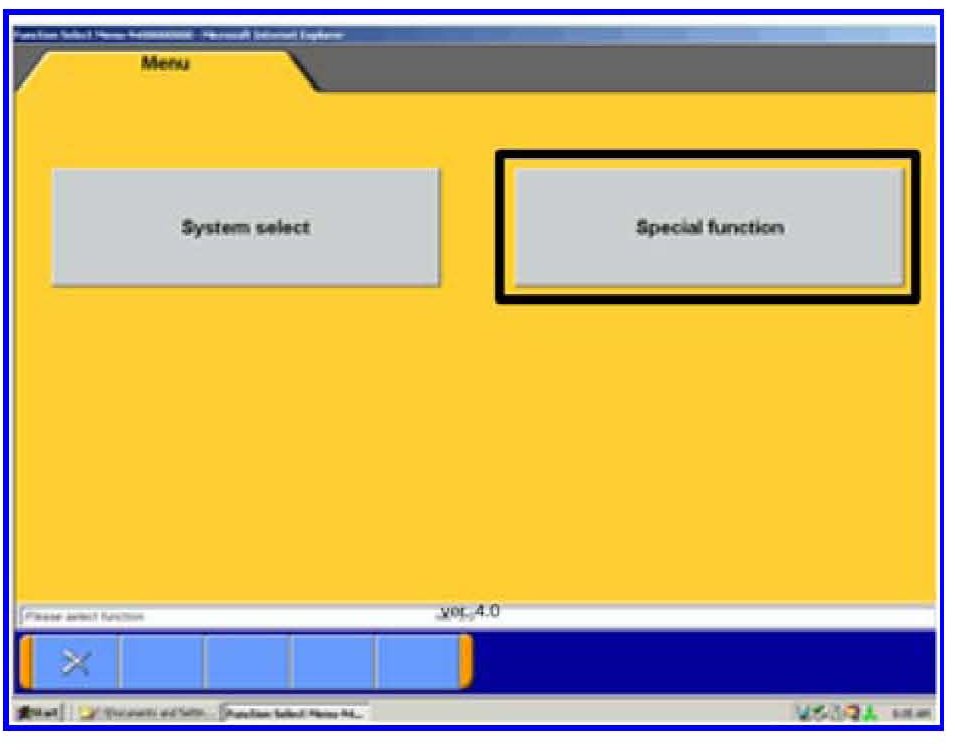

5. In the Raider main menu, select Special Function.

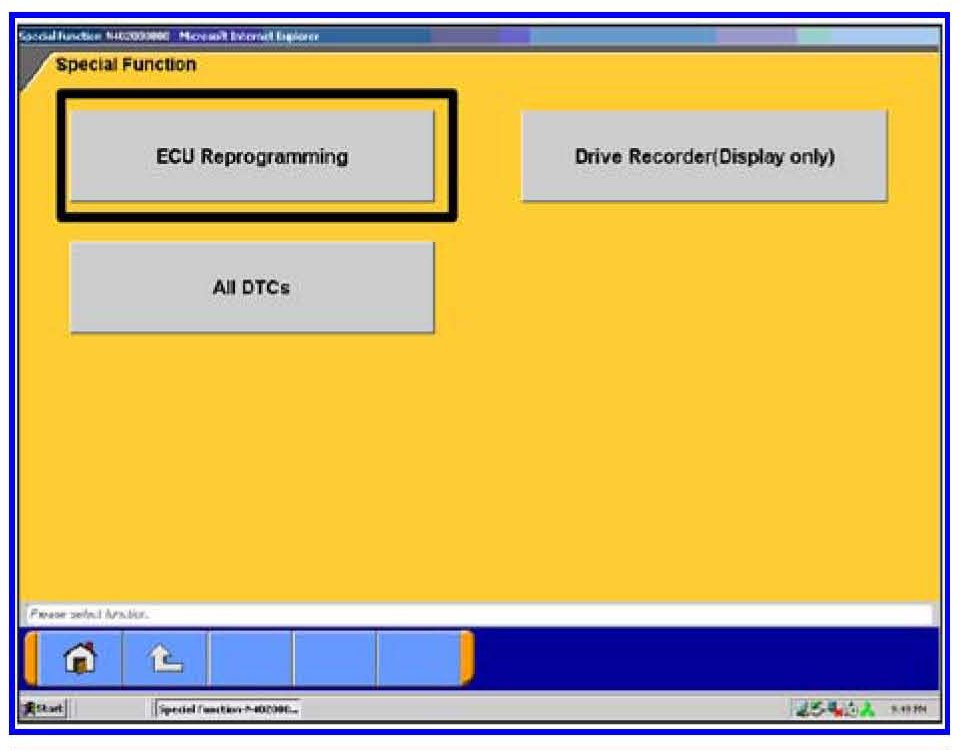

6. Select ECU Reprogramming.

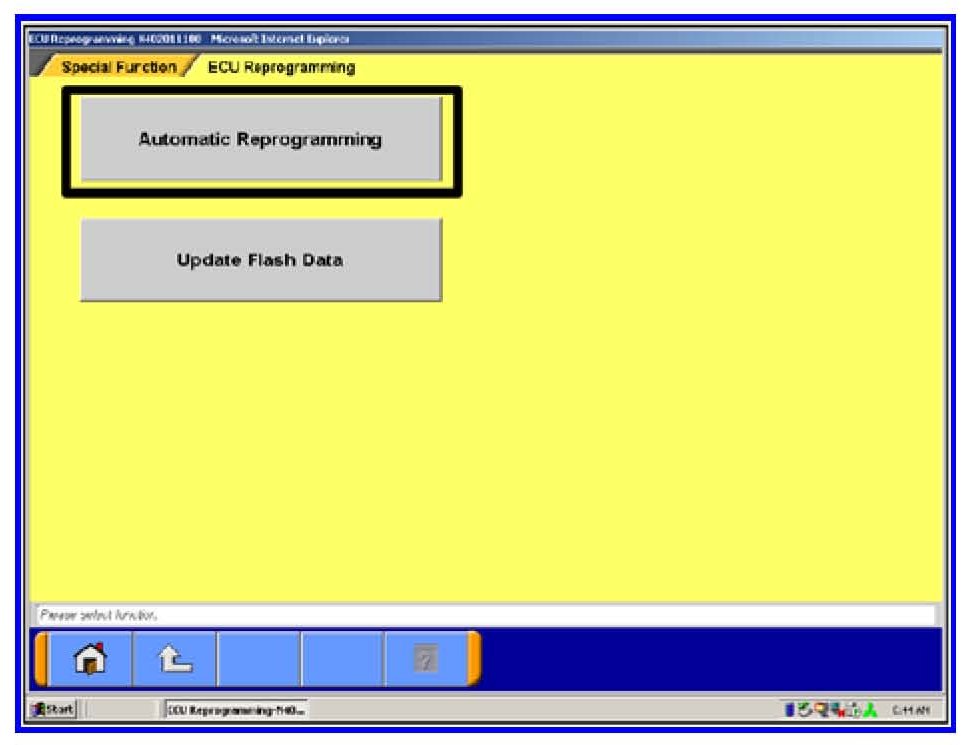

7. Select Automatic Reprogramming.

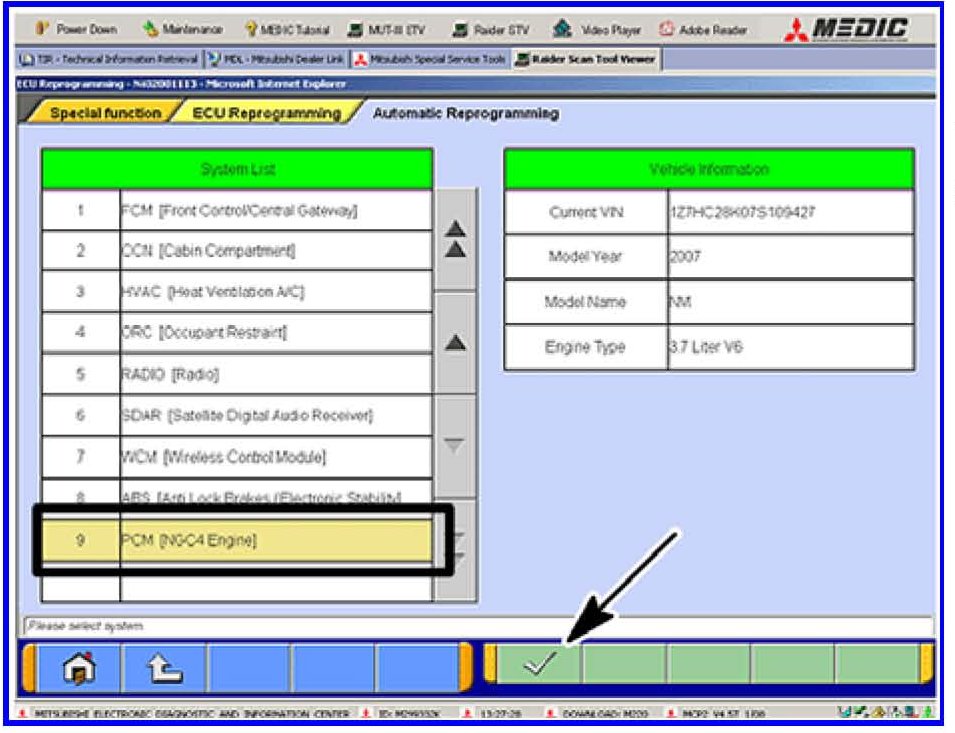

8. Select PCM.
Then click on the check mark at the bottom of the screen.

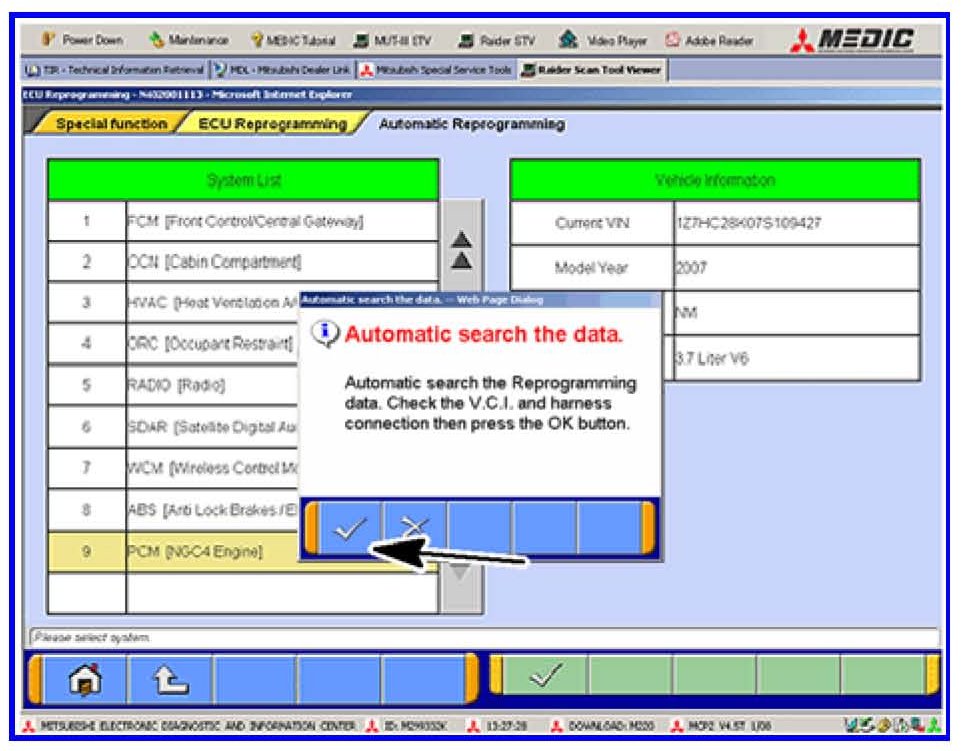

9. This window will pop up advising that the program will "Automatic search the data." Click on the check mark to continue.

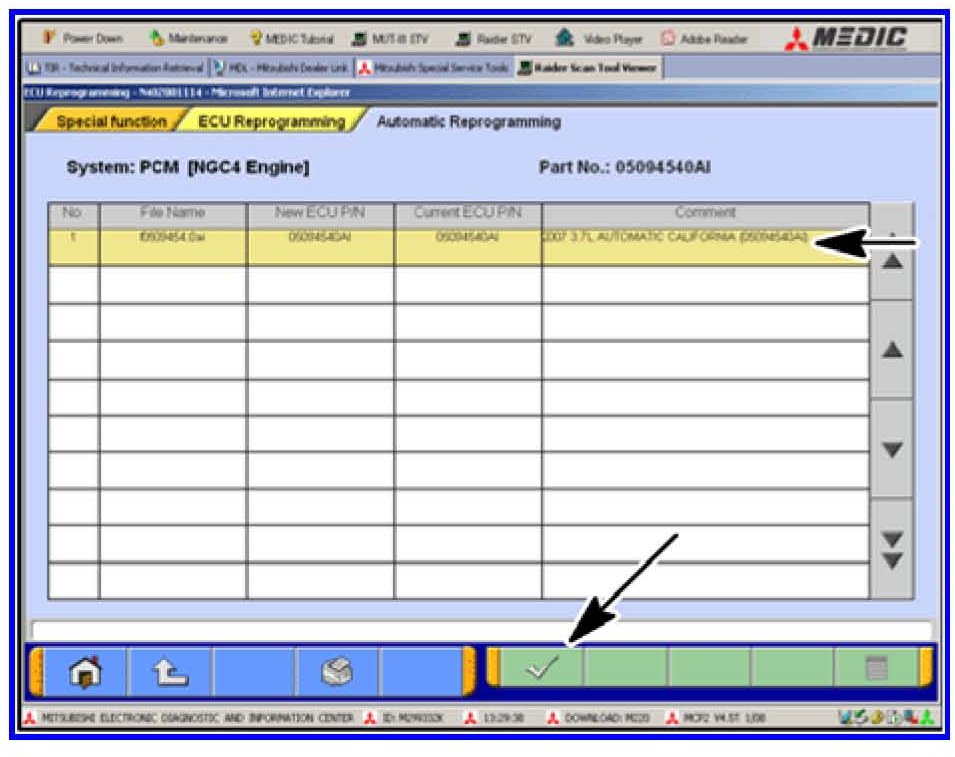

10. Select the programming database (calibration) listed in the "New ECU P/N" that matches the New Part # column from the chart shown in this TSB.
Then click on the check mark at the bottom of the screen.

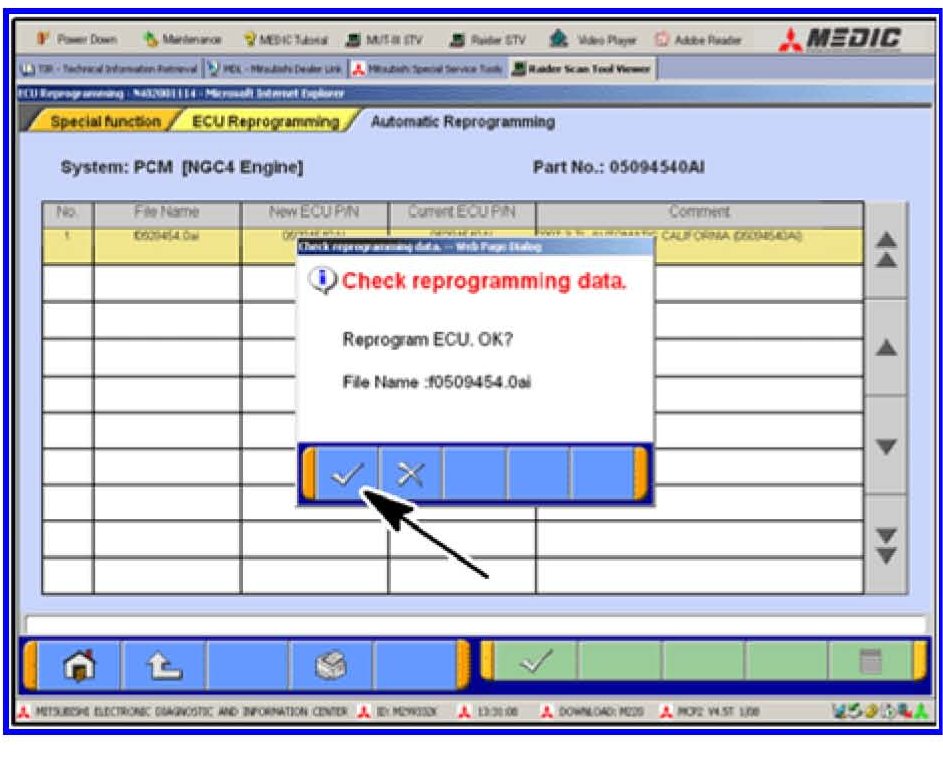

11. Click on the check mark to continue with reprogramming. It will take up to 10 minutes to complete reprogramming.
DO NOT DISTURB THE HARNESS CABLES OR CONNECTIONS. INTERRUPTION DURING PROGRAMMING REQUIRES THE PROCESS TO BE RESTARTED.
DO NOT SHUT DOWN THE RAIDER STV PROGRAM AT THIS POINT. ECU DAMAGE WILL OCCUR. FOLLOW THE MUT-III SCREEN DISPLAY MESSAGES TO RESTART THE PROGRAMMING PROCESS.

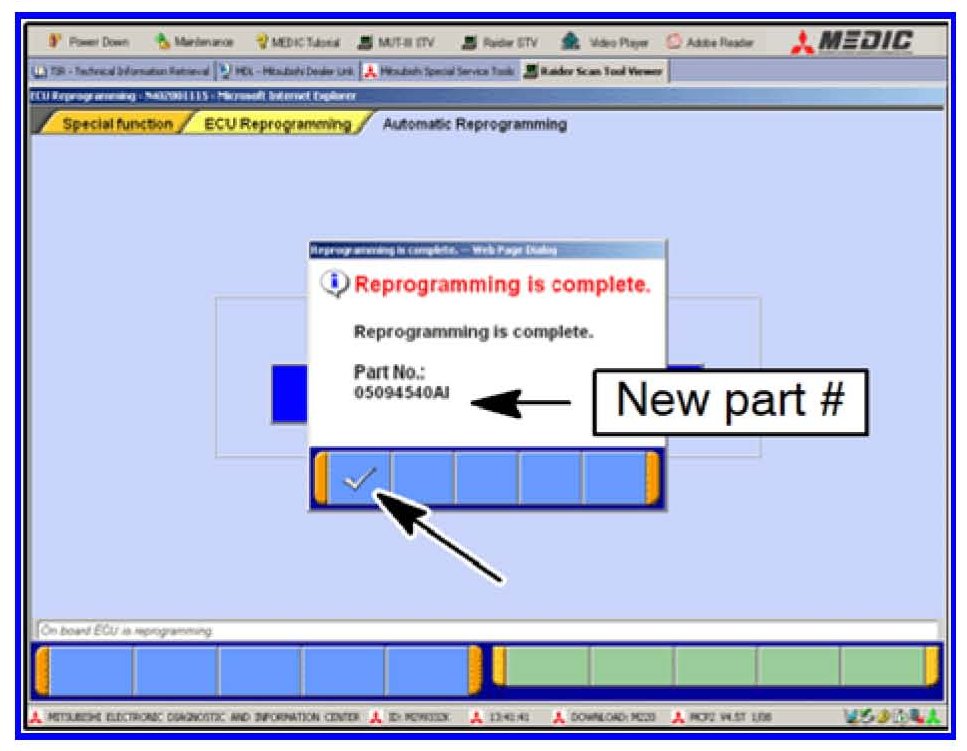

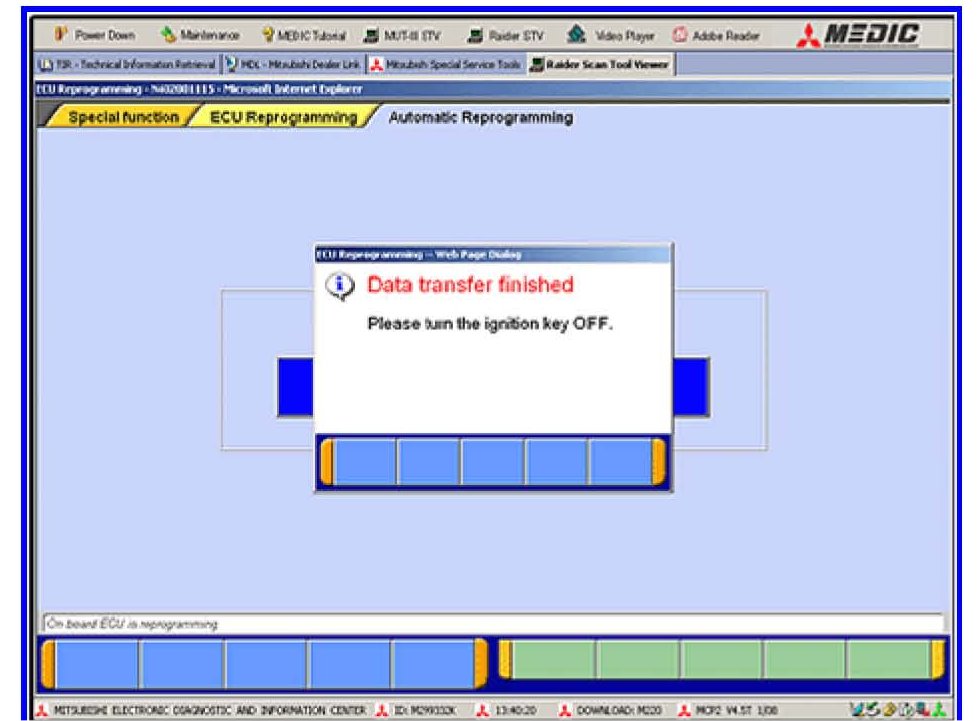

12. When programming is complete, this screen will display. Turn the ignition key off.
You will then be prompted to turn it back on within 20 seconds.
After turning the key back on, you will be taken to the next screen. Be patient as this takes some time.
13. Then this screen will display (2007 CA 2WD spec part # shown). Be sure to note the new part number and confirm that it matches the part number from the chart shown in this TSB for the vehicle's specification.
14. Click on the check mark in the window to continue.

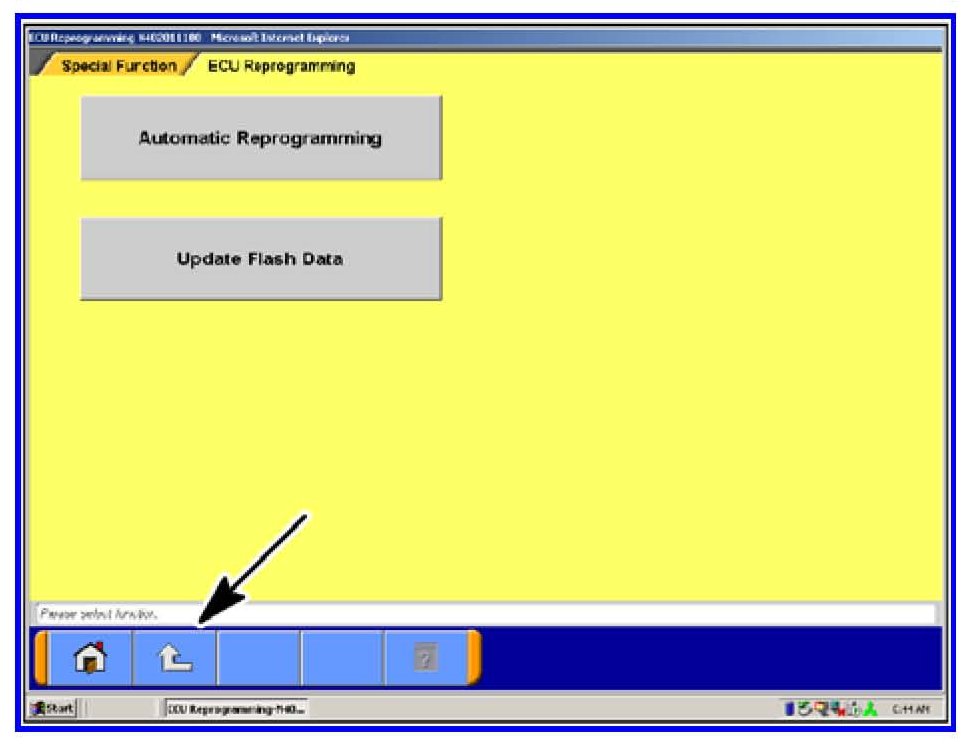

15. Click the "UP" arrow at the bottom left of the screen to return to the SPECIAL FUNCTIONS menu.

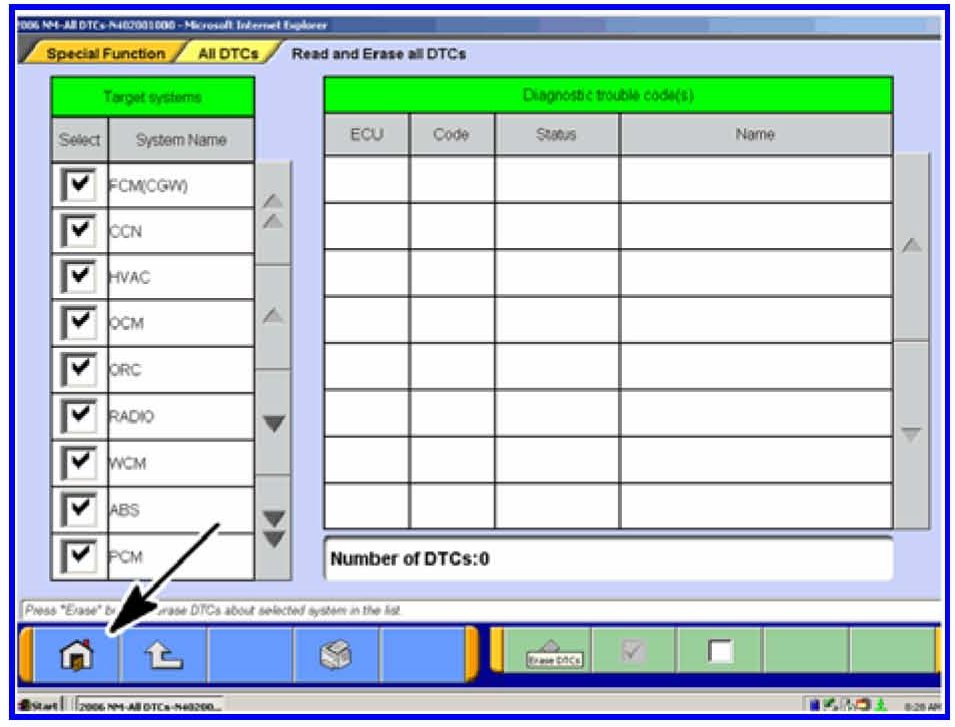

Clear all DTCs as follows:

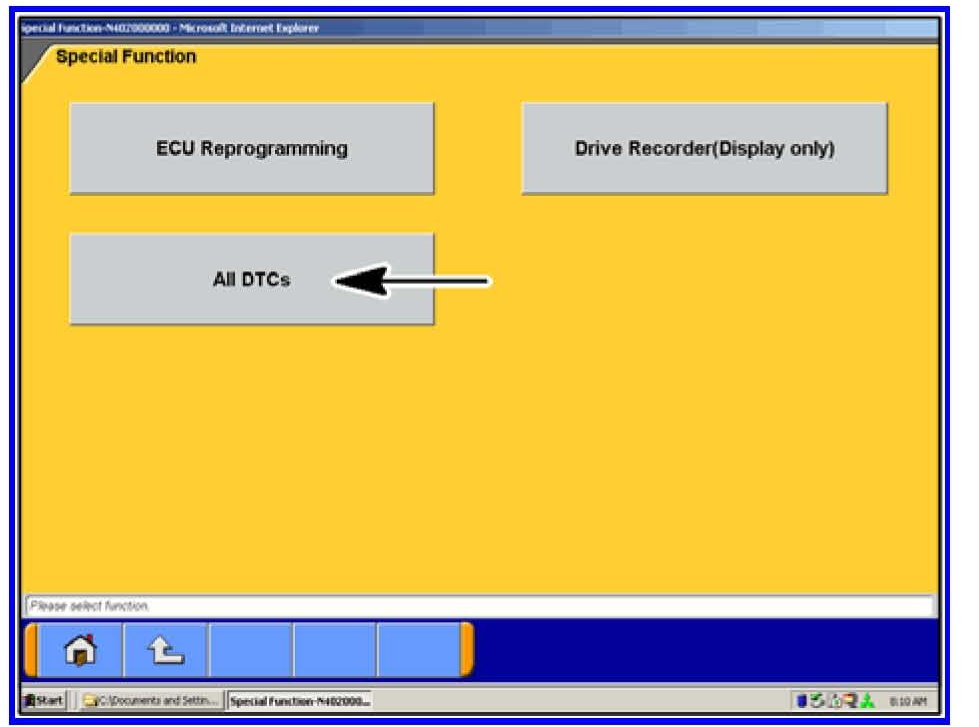

1. Select All DTCs

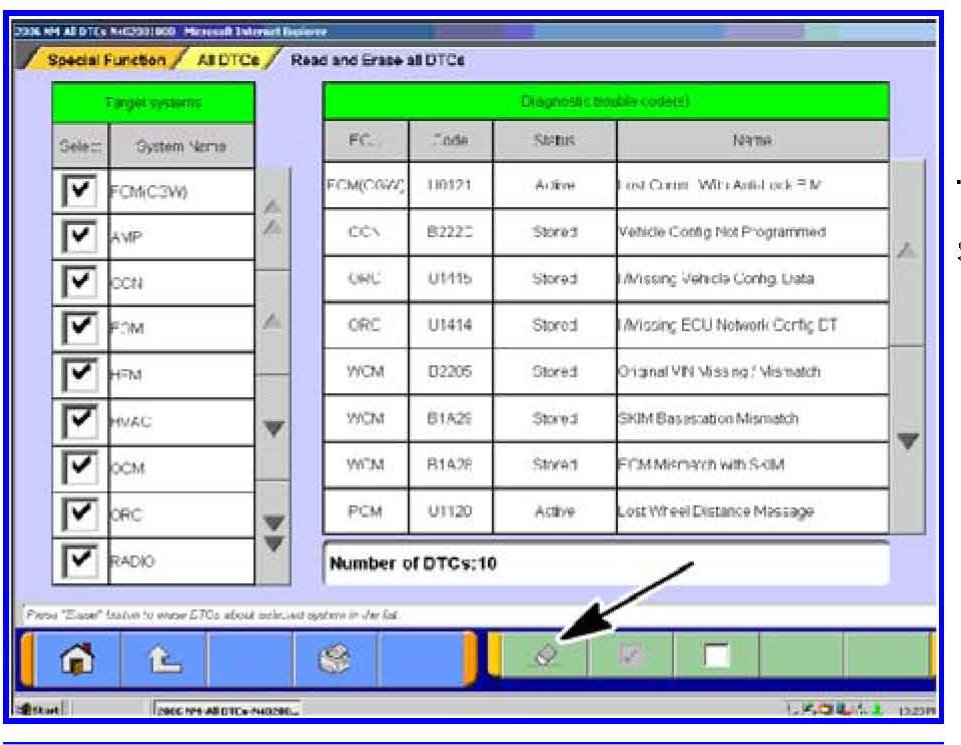

2. If DTCs are listed, click on the Erase button at the bottom of the screen.
The system will erase any DTCs listed and recheck to see if they return.
3. Verify that there are no DTCs listed. If DTCs are listed, diagnose per the Service Manual.
Click on the "Home" icon to return to the main page.
4. Using a ball-point pen, enter your dealer code, this TSB number (TSB-08-23-012) and the current date on the Engine Compartment / Control Module Label (part no. MSSF024G00).
5. Carefully remove all dirt and oil from a vacant area near the VECI label, and affix the Engine Compartment label.
